Hubbell

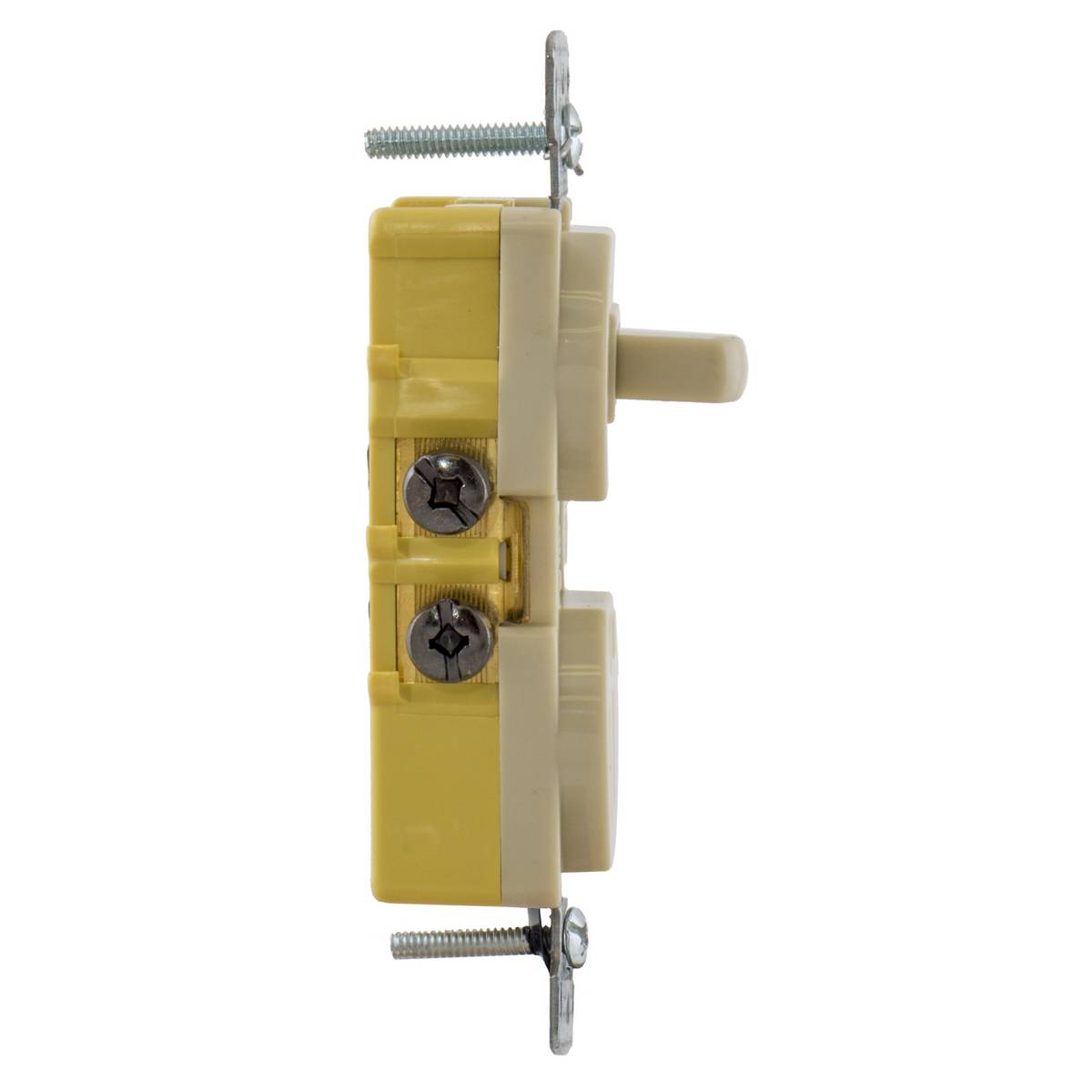

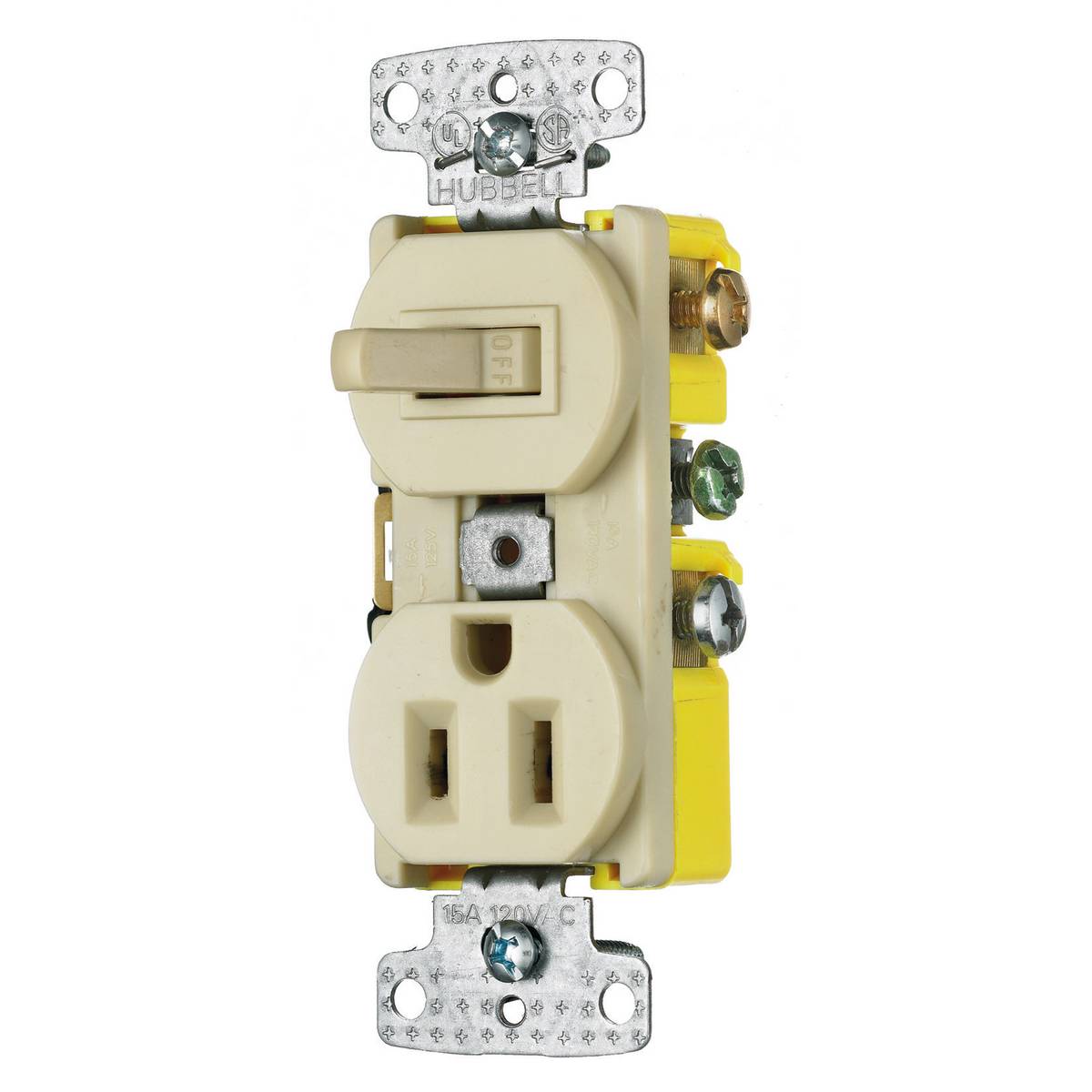

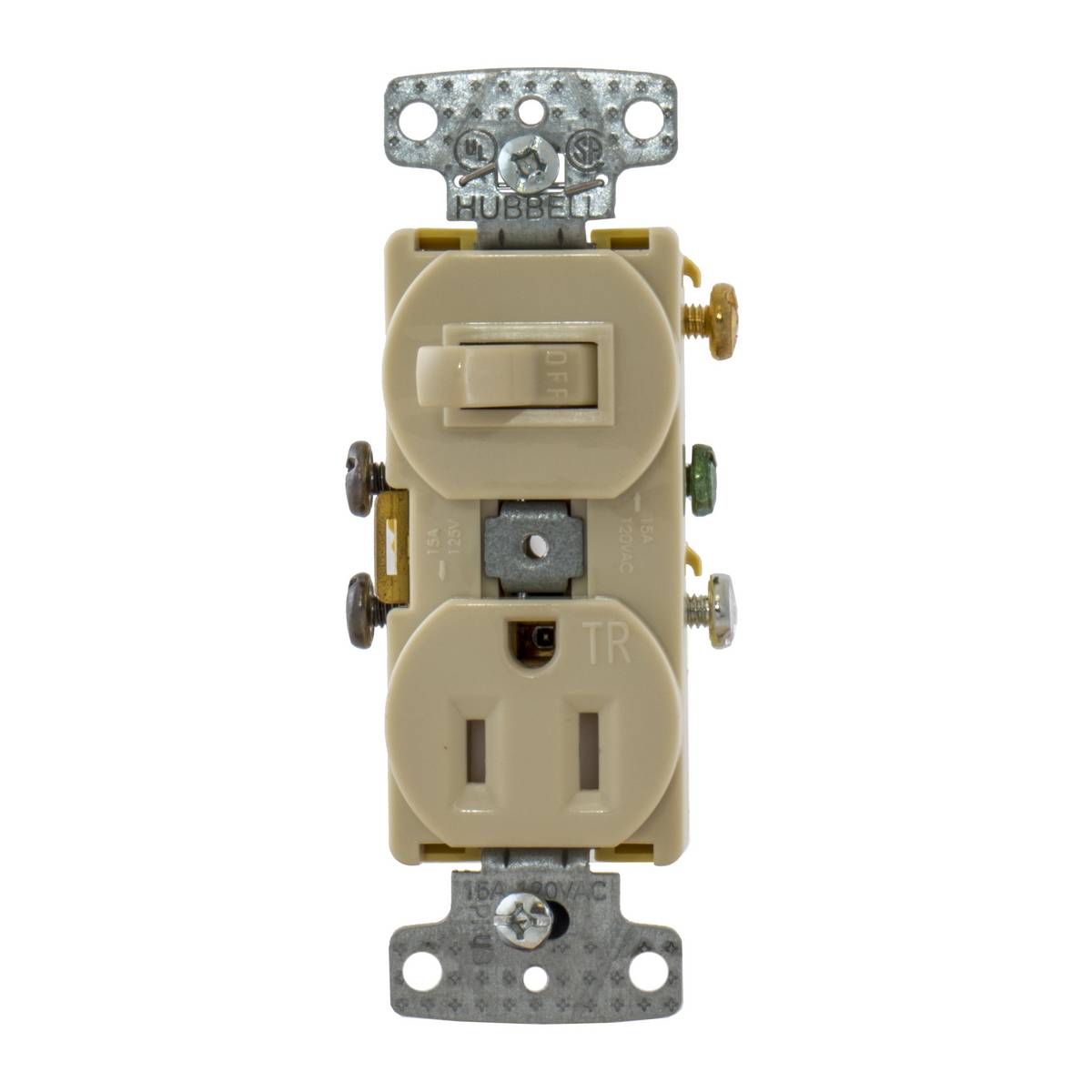

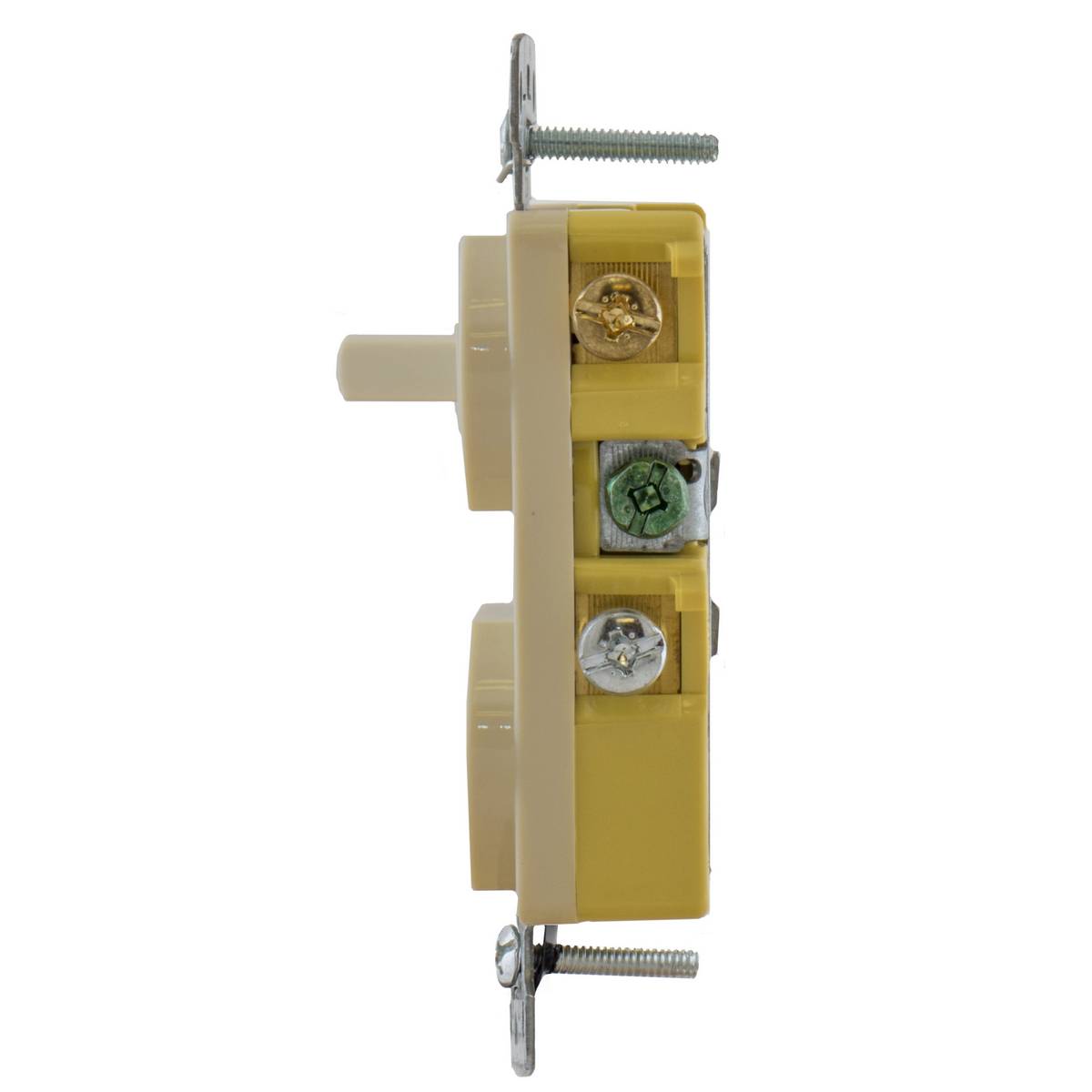

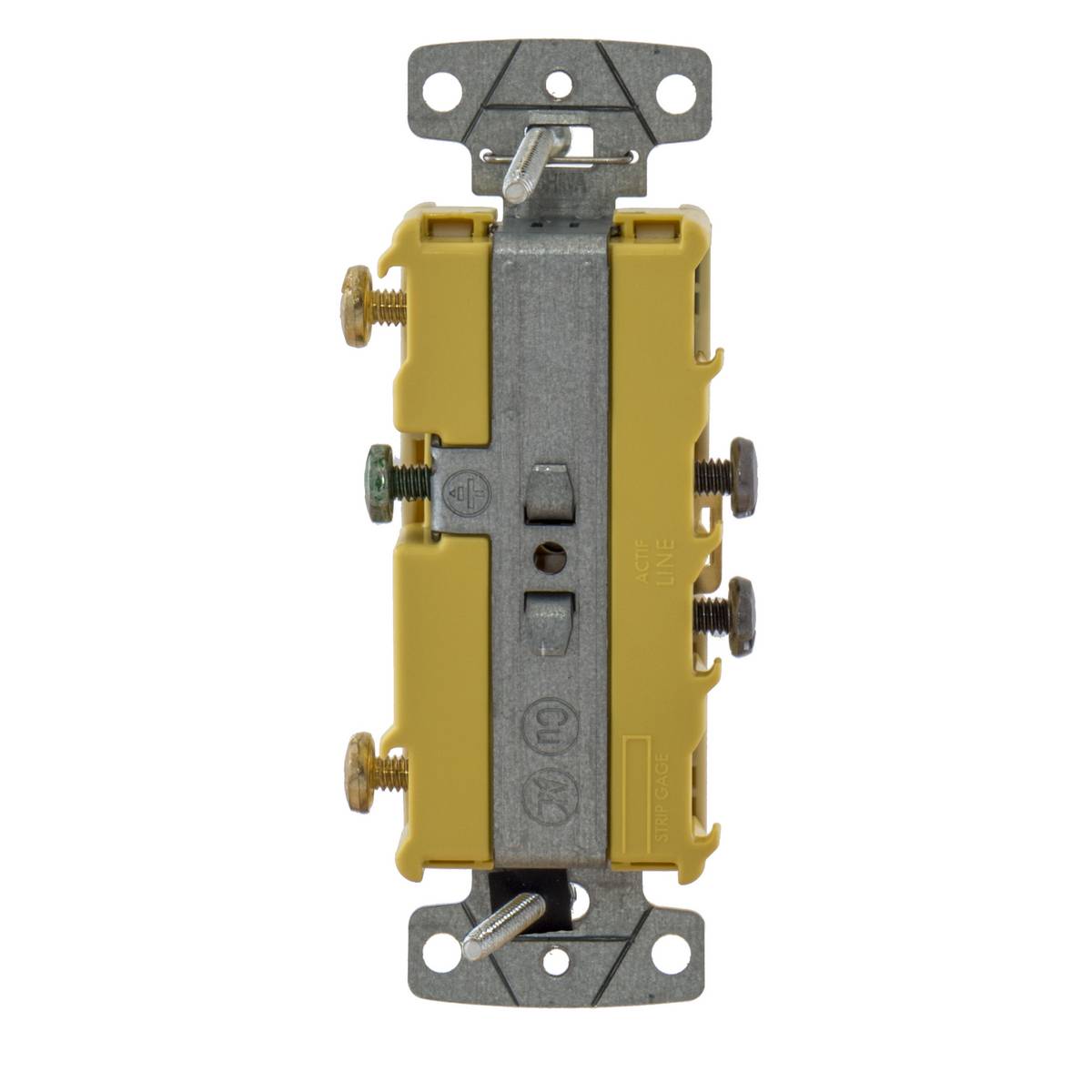

Wiring Device-Kellems RC108ITR Traditional 2-Position Tamper-Resistant Standard Self-Grounding Combination Switch and Receptacle, Electrical Ratings: 15 A at 120/125 VAC, 1 Poles, 3 Wires, Snap Switch Reset

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Enhance your electrical installations with the Wiring Device-Kellems RC108ITR Combination Switch and Receptacle. This tamper-resistant, self-grounding device combines safety and functionality, rated for 15 A at 120/125 VAC. Ideal for residential use, its traditional design seamlessly fits into any decor.

Wiring Device-Kellems, RC108ITR, Combination Switch and Receptacle, 2-Position Tamper-Resistant Standard Self-Grounding, Series: Traditional, 15 A at 120/125 VAC Electrical Rating, 1 Pole, 3 Wires, NEMA 5-15R Enclosure, Threaded Mounting, Self-Grounding Grounding Style, Snap Switch Reset, Residential Grade, Side Wire/Screw Terminal, Ivory, 1.32 in W x 1.46 in x 4.2 in H Dimensions

MFG #: RC108ITR

EECO #: HURC108ITR

Brand: Wiring Device-Kellems
UPC #: 883778302251
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Ivory
UNSPSC
39122231
Reset Type
Snap Switch
Application
Residential Applications
Terminal Type
Side Wire/Screw
Number of Wires
3
Mounting
Threaded
Enclosure
NEMA 5-15R
Type
2-Position Tamper-Resistant Standard Self-Grounding
Grade
Residential
Series
Traditional
Dimensions
1.32 in W x 1.46 in x 4.2 in H
Grounding Style
Self-Grounding
Features
  • Low profile, less than 1 in depth
  • Self-grounding feature is standard
  • Smooth toggle action
  • Multiple drive slot/Phillips/Robertson head screws
  • Hi-visibility yellow base for easy installation
  • -20 to 60 deg C operating temperature without impact
  • 2-pole receptacle
  • Elongated strap with continuous plaster ears
  • Snap switch action
  • Two position contact configuration
  • 30,000 minimum operating cycles
  • 1800 W wattage
  • Silver switch contacts, zinc plated steel bridge, center fasteners and mounting screw, plastic base, cover, toggle, spring housing and washers
  • Stainless steel grounding spring, brass rocker contact and terminal, steel spring
  • Low profile, <1 in D
  • Combination devices provide compact switches in a 1-gang opening
  • Maximize control while maintaining function and appearance
Wiring_Device_Kellems_RC108_Technical_Drawing
Wiring_Device_Kellems_RC109_Catalog
IDW_DOCUMENT_497ad5d86b834d901563bdab445b4bb330face365ec36a1324e2d7a9356557aa
IDW_DOCUMENT_885f6856feafdf2d892e7af2122367b4531e7942c394795e0940ef50f9f954ba
Wiring_Device_Kellems_RC108I_Technical_Drawing
