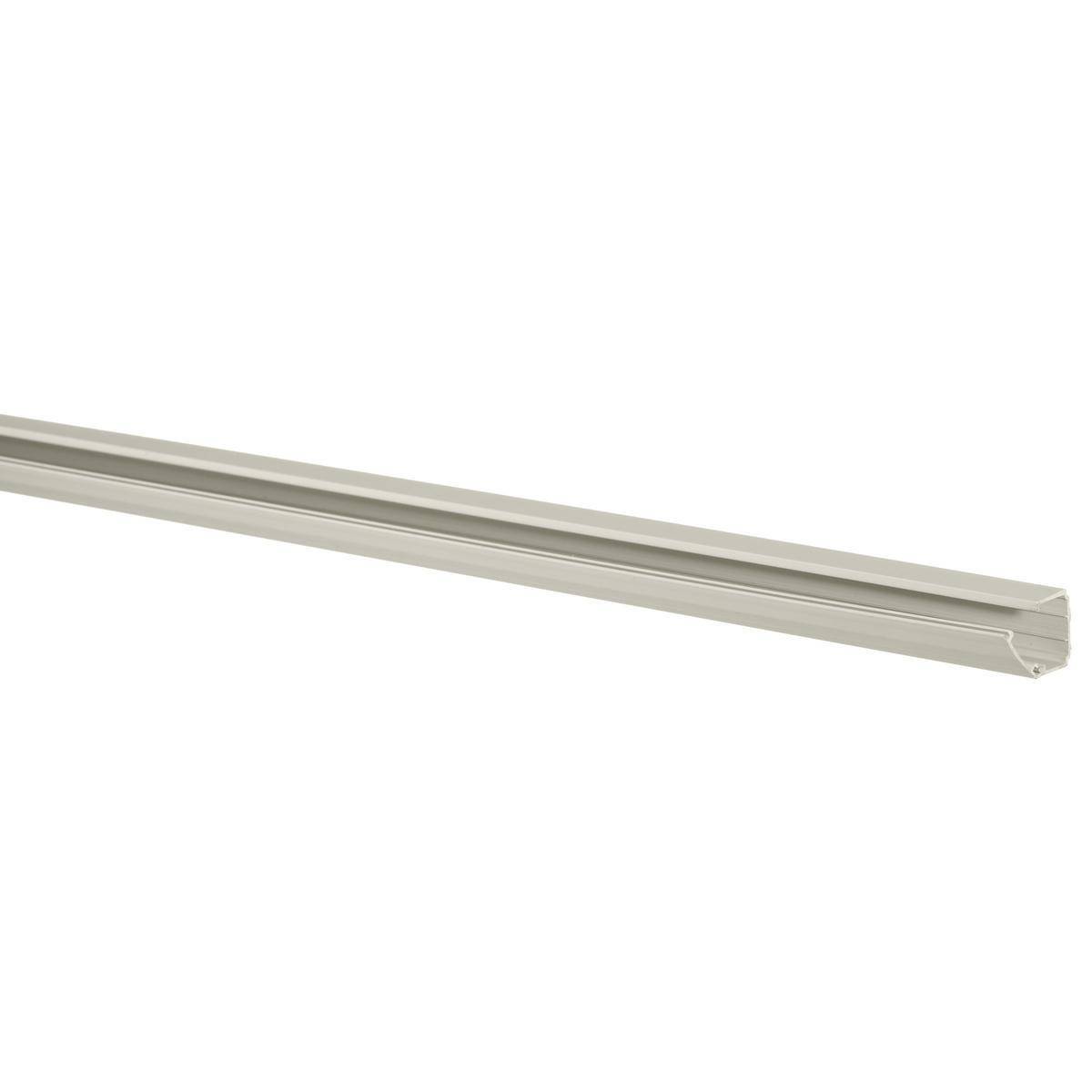

Wiring Device-Kellems PL1ABC5 PL1 Extruded Latching Standard Non-Metallic Raceway, 5 ft L x 1.38 in W x 1.04 in H, 1 Channel, Thermoplastic
Share Share Print Print
Hubbell

Wiring Device-Kellems PL1ABC5 PL1 Extruded Latching Standard Non-Metallic Raceway, 5 ft L x 1.38 in W x 1.04 in H, 1 Channel, Thermoplastic

Short Description

Enhance your wiring setup with the Wiring Device-Kellems PL1 Extruded Latching Raceway. This durable, non-metallic raceway is designed for easy surface mounting and provides a sleek, efficient solution for managing communication and power cables. Perfect for both residential and commercial applications!Enhanced by AI

Wiring Device-Kellems, PL1ABC5, Non-Metallic Raceway, Extruded Latching Standard, Series: PL1, 5 ft Length, 1.38 in Width, 1.04 in Height, 600 VAC, 1 Channels, Communication/Power Cable, Adhesive Back, Integral Cover, -25.6 to 158 deg F, Surface Mounting, Thermoplastic, Off-White

MFG #: PL1ABC5

EECO #: HUPL1ABC5

Brand: Wiring Device-Kellems
UPC #: 783585090214
Attributes
Features
Documents
Product Information
Attributes
Color
Off-White
Length
5
UNSPSC
39131710
Material
Thermoplastic
Cable Type
Communication/Power
Application
For both power and data application, 5 ft base or cover and non-hazardous locations
Mounting Type
Surface
Voltage Rating
600
Number of Channels
1
Temperature Rating
-25.6 to 158
Type
Extruded Latching Standard
Width
1.38
Height
1.04
Series
PL1
Includes
Base and Cover
Back Type
Adhesive
Cover Type
Integral
Features
  • Without knockouts
  • Extruded plastic construction
  • 1.03 sq-in nominal cross section
  • Base and cover
IDW_DOCUMENT_f84a63b8baa3ce435e736323bcfe786eda67a61a0da7055ef864428ff0d690df
PREMISE_WIRING_HBL20C215GY_Catalog
IDW_DOCUMENT_2cae06c7b843625182fbbac7682014be0d2497d57b0216e570c8a3eae74e35ea
IDW_DOCUMENT_14df2ead66c1f04cbdaf60b737524a79003e9b32f79f5496219bd100de8ed285
IDW_DOCUMENT_6aaaf381328516ac9ce082298ed50083db5a3c7e2e4c714c4a7284e116ce08cc
Wiring_Device_Kellems_PL1ABC5_Technical_Drawing
