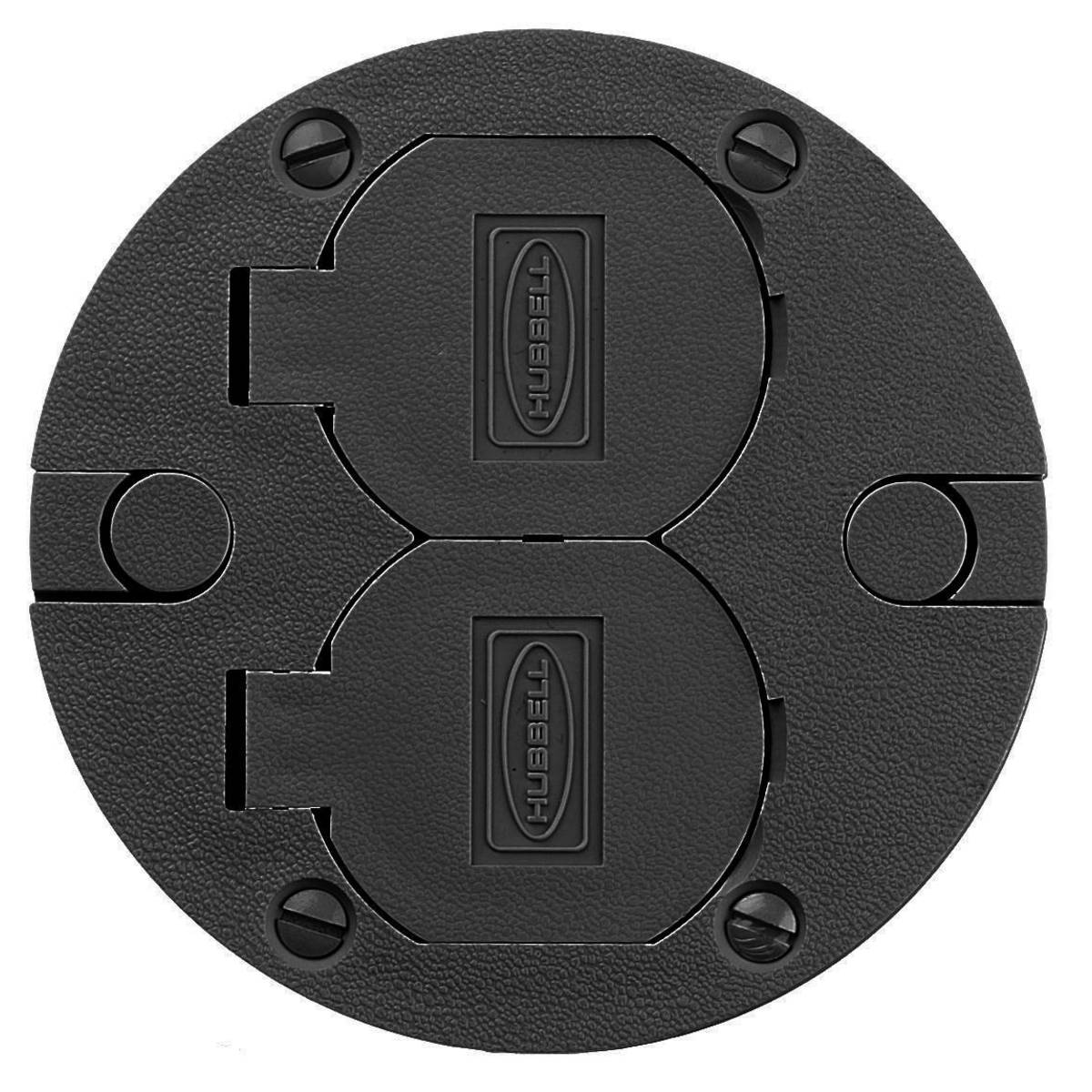

Wiring Device-Kellems PFBRCBLA PFB Standard Molded Non-Metallic Replacement Cover Assembly, 7 in Dia, 0.44 in D, Aluminum
Share Share Print Print
Hubbell

Wiring Device-Kellems PFBRCBLA PFB Standard Molded Non-Metallic Replacement Cover Assembly, 7 in Dia, 0.44 in D, Aluminum

Short Description

Hubbell® SystemOne™ is an innovative system that provides consumers with the flexibility to create personal solutions for the most demanding multi-service applications for both flush in-floor boxes and fire rated poke-throughs. Hubbell® SystemOne™ features a unique universal cover assembly and a wide variety of application sub plates that install on both Hubbell® flush floor boxes and fire rated poke-throughs. Now, whatever the application, Hubbell® SystemOne™ delivers a consistent, aesthetic and functional solution for applications "in-the-floor" or "through-the-floor" for power, voice, data and AV requirements.

Wiring Device-Kellems, PFBRCBLA, Cover Assembly, Standard Molded Non-Metallic Replacement, Series: PFB, 3 Outlets, 2 Knockouts, 1/2 in Knockout, 7 in Diameter, 0.44 in Depth, 0.51 in Thickness, Round Shape, Surface Mounting, Aluminum, Painted, Black
MFG #: PFBRCBLA

EECO #: HUPFBRCBLA

Brand: Wiring Device-Kellems
UPC #: 783585342566
Attributes
Features
Documents
Product Information
Attributes
Color
Black
Shape
Round
Finish
Painted
UNSPSC
39121307
Material
Aluminum
Application
For use with flush fire rated poke-through components, floor box and carpet assembly
Knockout Size
1/2
Mounting Type
Surface
Number of Outlets
3.0000
Number of Knockouts
2.0000
Type
Standard Molded Non-Metallic Replacement
Depth
0.44
Series
PFB
Diameter
7
Thickness
0.51
Features
  • Hinged doors open 180 deg flush to the carpet flange or tile
  • Locking studs allow each door to be secured independently
  • Die-cast aluminum cover construction for enhanced durability
  • UL 514A requirements for scrub water protection
  • Replacement covers
  • For use in 1, 1.5, 2, 3 or 4 hr rated unprotected reinforced concrete floors or in 1, 2 or 3-gang hr rated floors employing steel floor units and concrete topping (D900 series design) fire rating
  • Minimum of 2 ft on centers and not more than one unit per 65 sq-ft of floor area in each span UL installation spacing
  • Cored hole 3-gang in diameter
  • Low voltage jack knockout only
  • Engineered flame retardant thermoplastic UL-94 V-0 flammability rating
  • Painted cast aluminum/solid brass, brushed and lacquered carpet flange material
  • 2-1/4 to 7 in THK floor
  • 3-gang in Dia cored hole
Wiring_Device_Kellems_PFBRCBLA_Full_Engineering_Drawing
Wiring_Device_Kellems_PFBRCBLA_Technical_Drawing
IDW_DOCUMENT_3e9c72911cffad251fd9a88f64c3b9629ae84cd5f1a1e7cb9f3de0b9c4f63571
IDW_DOCUMENT_6bb5521532d7f60e6c5617e9dbb3ebc44ef96006f96194ca3f0a529d93f12ee6
Wiring_Device_Kellems_PFBRCBLA_Catalog
