Hubbell

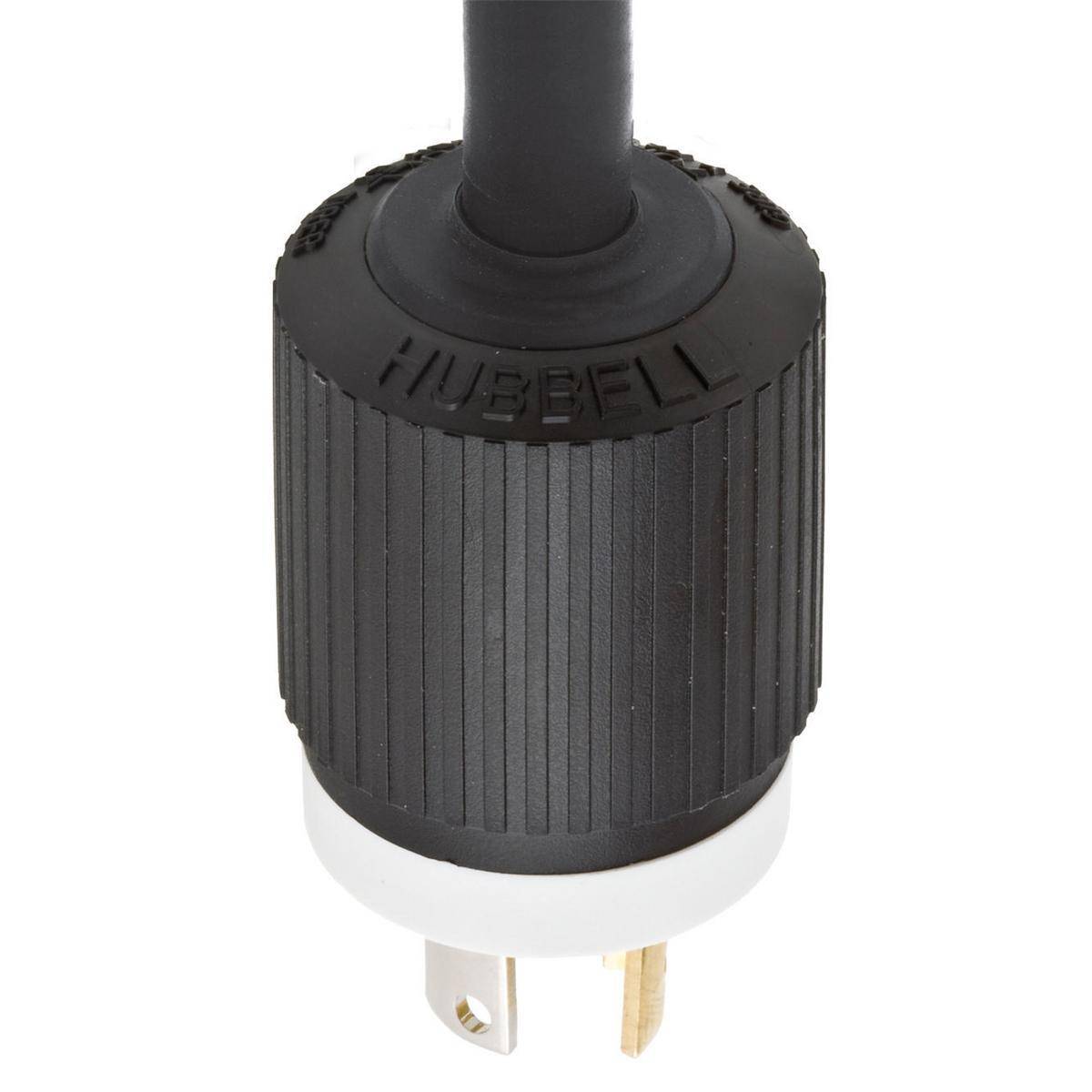

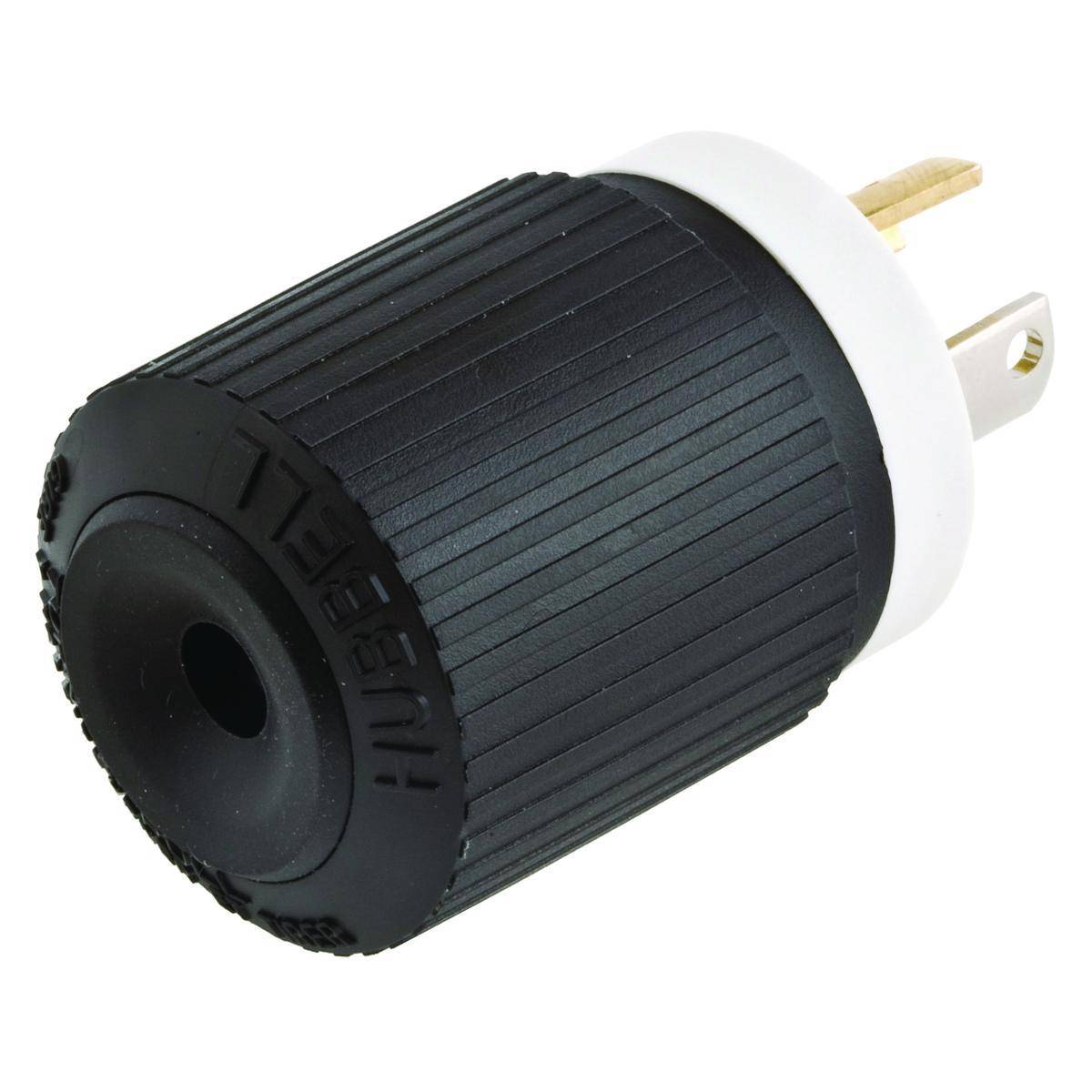

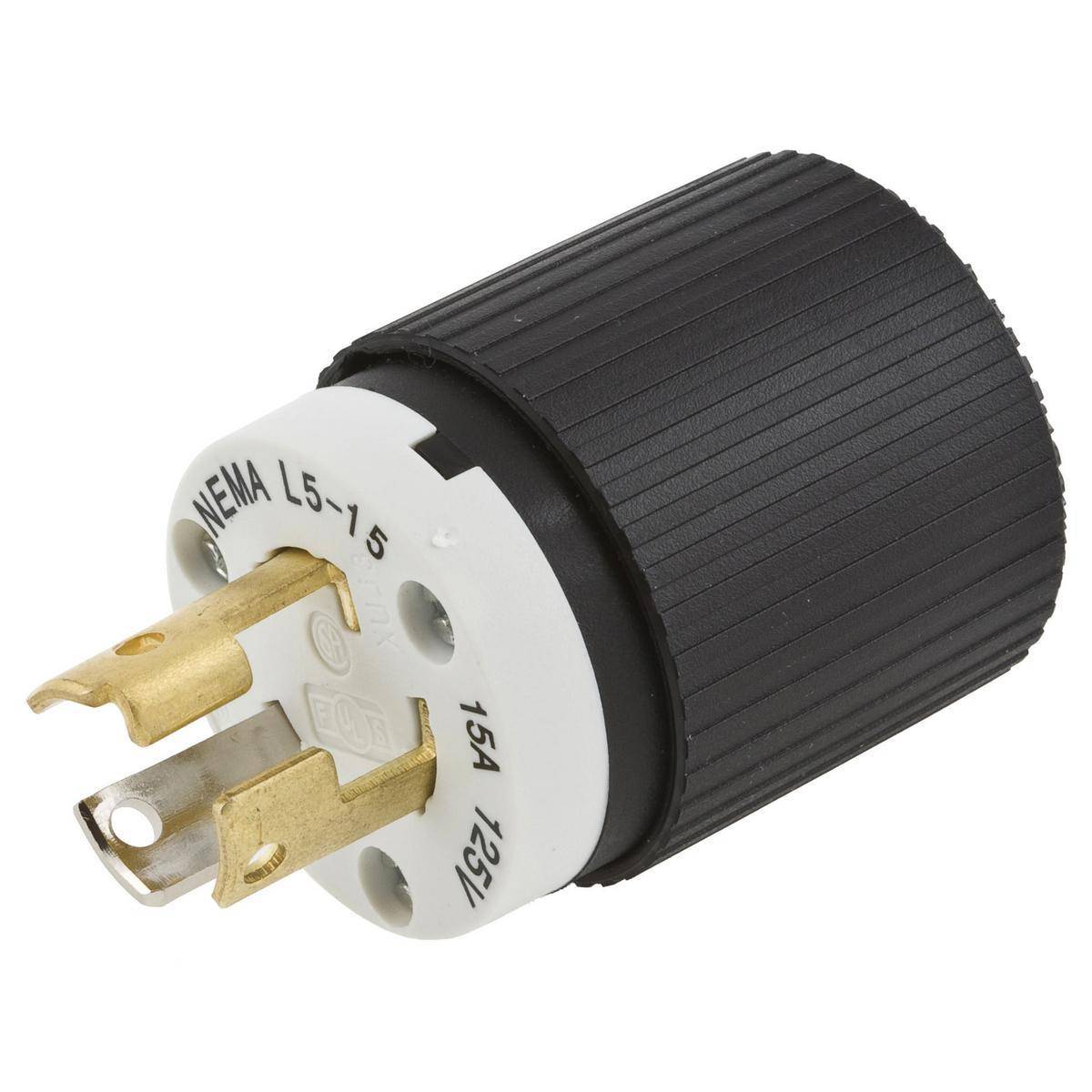

Wiring Device-Kellems Twist-Lock® L515P 1-Phase Grounding Standard Sized Cord Mount Locking Male Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black

Short Description

Hubbell® Pro™ locking devices provide a safe disconnect solution between an equipment load and a power source. These devices incorporate a locking interface that is engaged and disengaged simply by rotating the device assuring a safe and reliable electrical connection.

Wiring Device-Kellems Twist-Lock® Locking Male Plug, 1-Phase Grounding Standard Sized Cord Mount, 125 VAC, 15 A, 2 Pole, 3 Wires, L5-15P NEMA Rating, Commercial/Industrial Grade, -40 to 60 deg C, Screw Terminal, Composite, Black
MFG #: L515P

EECO #: HUL515P

Brand: Wiring Device-Kellems
UPC #: 783585835709
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121403
Material
Composite
Application
For power connection applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Temperature Rating
-40 to 60
Type
1-Phase Grounding Standard Sized Cord Mount
Grade
Commercial/Industrial
Amperage Rating
15
Features
  • Visible NEMA ratings, captive assembly screws
  • Impact modified nylon blade/contact holder
  • Brass contacts/blade
  • 600 VAC/250 VDC maximum working voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
  • Minimum 4.8 times rated current for 100 cycles
  • Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
  • 18 to 8 AWG flexible cord terminal accommodation
  • Indoor dry unless protected by additional means
  • 14 to 12 AWG wire
