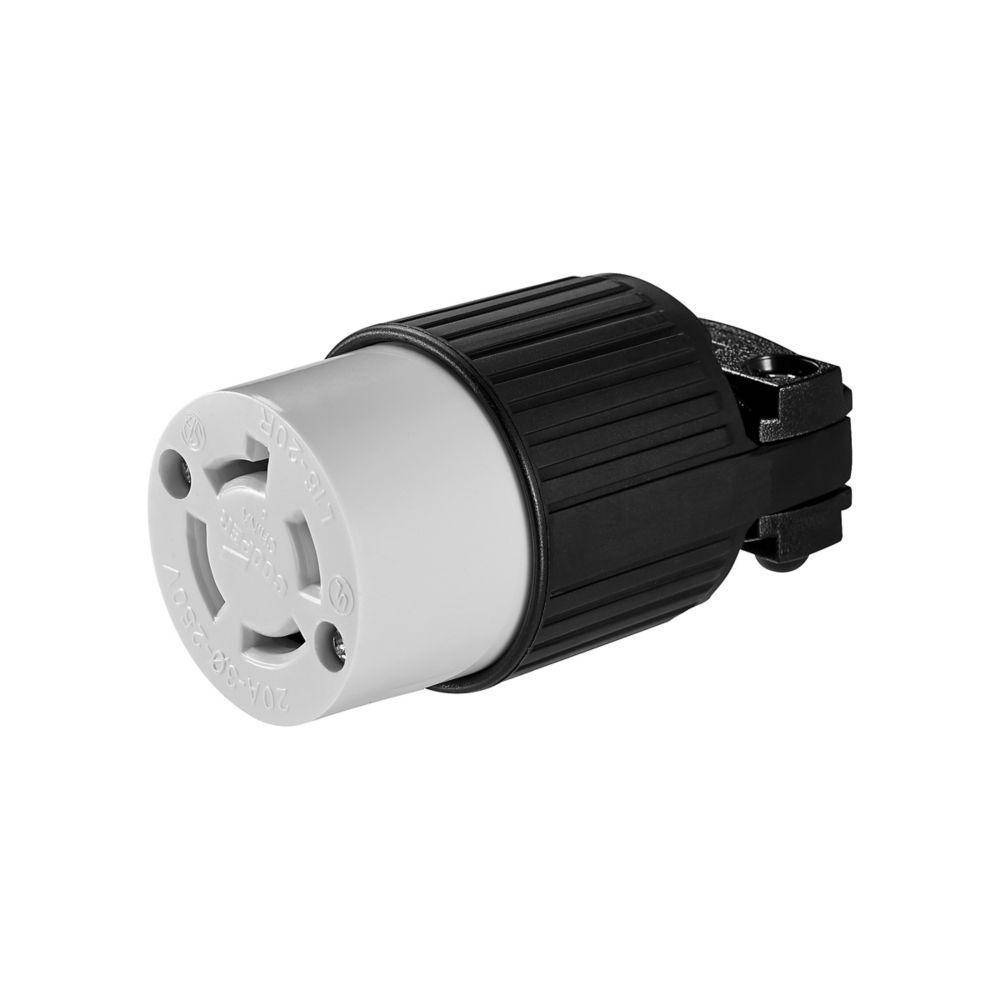

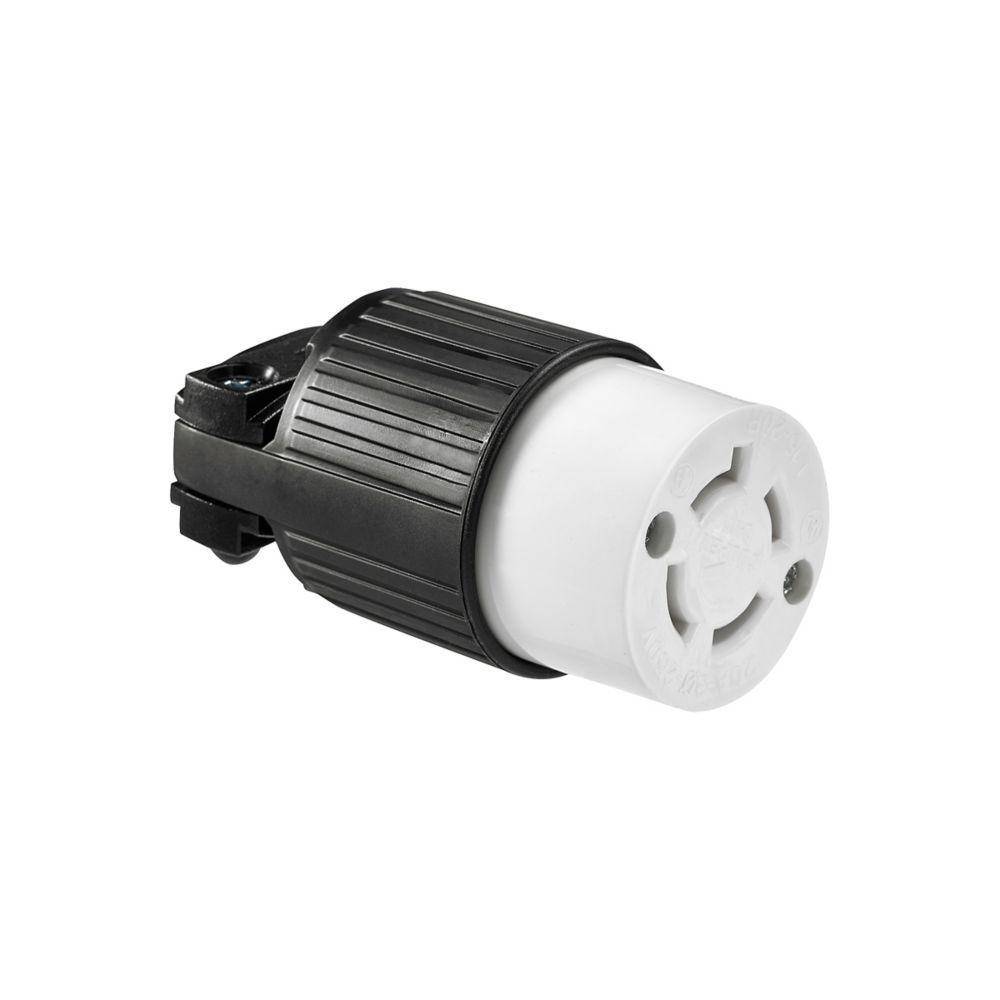

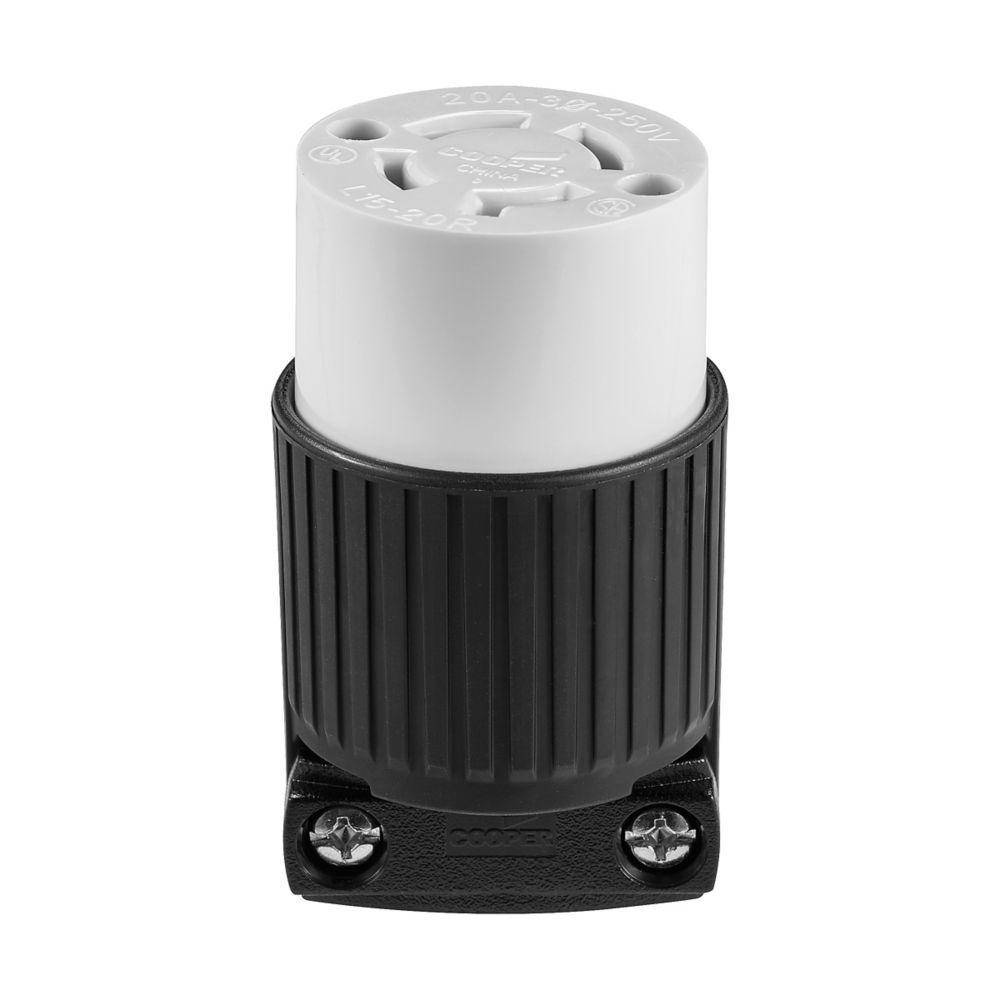

EATON Arrow Hart™ Eaton Wiring Devices L1520C 3-Phase Locking Connector, 250 VAC, 20 A, 3 Poles, 4 Wires, Black/White

Short Description

Enhance your electrical connections with the EATON Arrow Hart™ L1520C 3-Phase Locking Connector. Designed for durability and reliability, this 250 VAC, 20 A connector features a robust NEMA L15-20 rating and is perfect for commercial applications. Its sleek black and white design ensures both functionality and style.

EATON Arrow Hart™ Eaton Wiring Devices Locking Connector, 3-Phase, 250 VAC, 20 A, 3 Pole, 4 Wires, NEMA L15-20 NEMA Rating, Commercial/Specification Grade, 0.36 to 0.48 in Diameter Cord, -20 to 60 deg C, Back/Side Wire Terminal, Santoprene™ TPE, Black/White, 1.82 in Dia x 3 in L Dimensions

MFG #: L1520C

EECO #: HUL1520C

Brand: Eaton
UPC #: 032664392108
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121402
Material
Santoprene™ TPE
Application
For locking device applications
Terminal Type
Back/Side Wire
Voltage Rating
250
Number of Wires
4
Temperature Rating
-20 to 60
Type
3-Phase
Grade
Commercial/Specification
Dimensions
1.82 in Dia x 3 in L
Amperage Rating
20
Features
  • Abuse-resistant thermoplastic construction
  • Back-wire dead front design
  • External cable clamp provides firm strain-relief
  • Back-wire terminal clamps for easy secure wiring
  • Individual wiring compartments with tapered channel for easy insertion of wires
  • Triple-combination head screws standard slot Phillips®/Robertson for use in the us and Canada
  • Clear cover over wiring compartments allow easy inspection of wiring terminations
  • Clearly marked rating NEMA configuration and standard compliances on face of connector
  • Commercial specification grade, tamper-resistant, wiring type back and Side wire
  • Santoprene™ thermoplastic elastomeric over polypropylene outer shell, nylon interior body
  • 18 to 10 AWG wire
EATON_L1520C_Specification_Sheet
