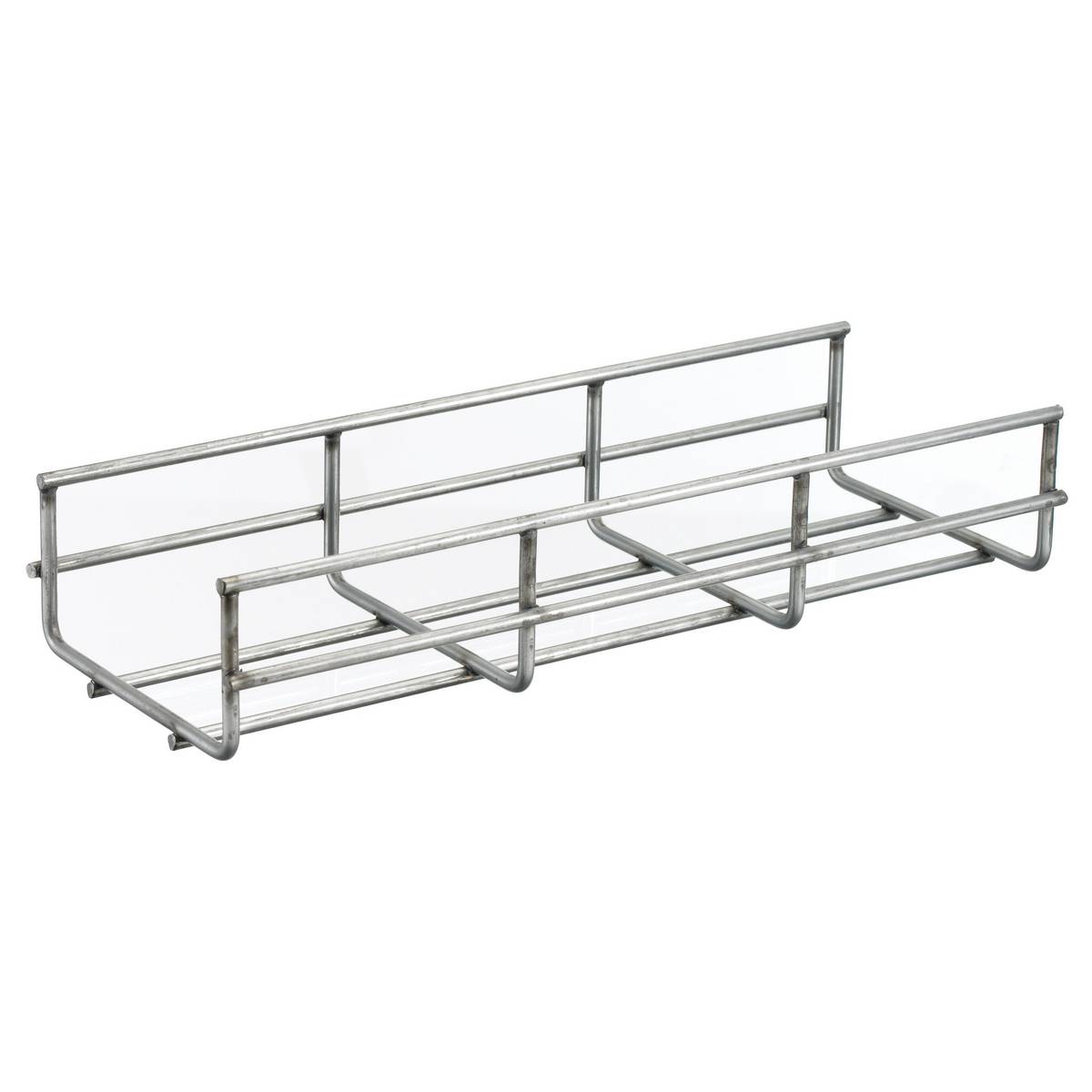

Wiring Device-Kellems HBT0202 Fabricated Overhead Straight Section Cross Wire Basket Tray, 12 in L x 2 in W, Steel

Short Description

Hubbell Wiring Systems offers a comprehensive wire basket tray system to handle every application. From pre-galvanized solutions for commercial controlled interior environments to stainless steel versions for industrial applications such as food processing, marine and highly corrosive environments. Hubbell also features labor savings options including NoSplice supports which also reduce material cost, and Pre-Formed fittings which offer tremendous productivity enhancement to the installer by eliminating field cuts that are required when fittings are formed in the field. Hubbell also offers painted trays in virtually any color needed. The painted tray is masked to reduce on-site paint removal saving time and money. Hubbell Wire Basket Systems are available in overhead and raised floor designs. Complete shipments, job site location palletization and markings, and product customization make Hubbell the choice for every wire basket tray installation.

Wiring Device-Kellems Cross Wire Basket Tray, Fabricated Overhead Straight Section, 2 in Width, 12 in Length, 2 in Overall Height, Round Shape, Steel, 5 mm Wire, Pre-Galvanized
MFG #: HBT0202

EECO #: HUHBT0202

Brand: Wiring Device-Kellems
UPC #: 783585483771
Attributes
Features
Documents
Product Information
Attributes
Shape
Round
Finish
Pre-Galvanized
Length
12
UNSPSC
39131709
Material
Steel
Wire Size
5
Application
Commercial, Controlled Interiors and Non-Hazardous Locations
Type
Fabricated Overhead Straight Section
Width
2
Overall Height
2
Features
  • T-weld construction prevents snags
  • 5 mm round wire minimum
  • High load rating
  • Easy to cut and fabricate fittings in the field
  • 100% recycled steel
  • 2 x 4 in mesh opening
  • Use factory support hardware or fabricate supports at the job site
  • Painted tray includes factory installed masking to ensure proper grounding at splices, no need to remove paint during installation
