Wiring Device-Kellems HBLPHTVSS Grounding Standard Sized Screw Mount Watertight Hull Inlet, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

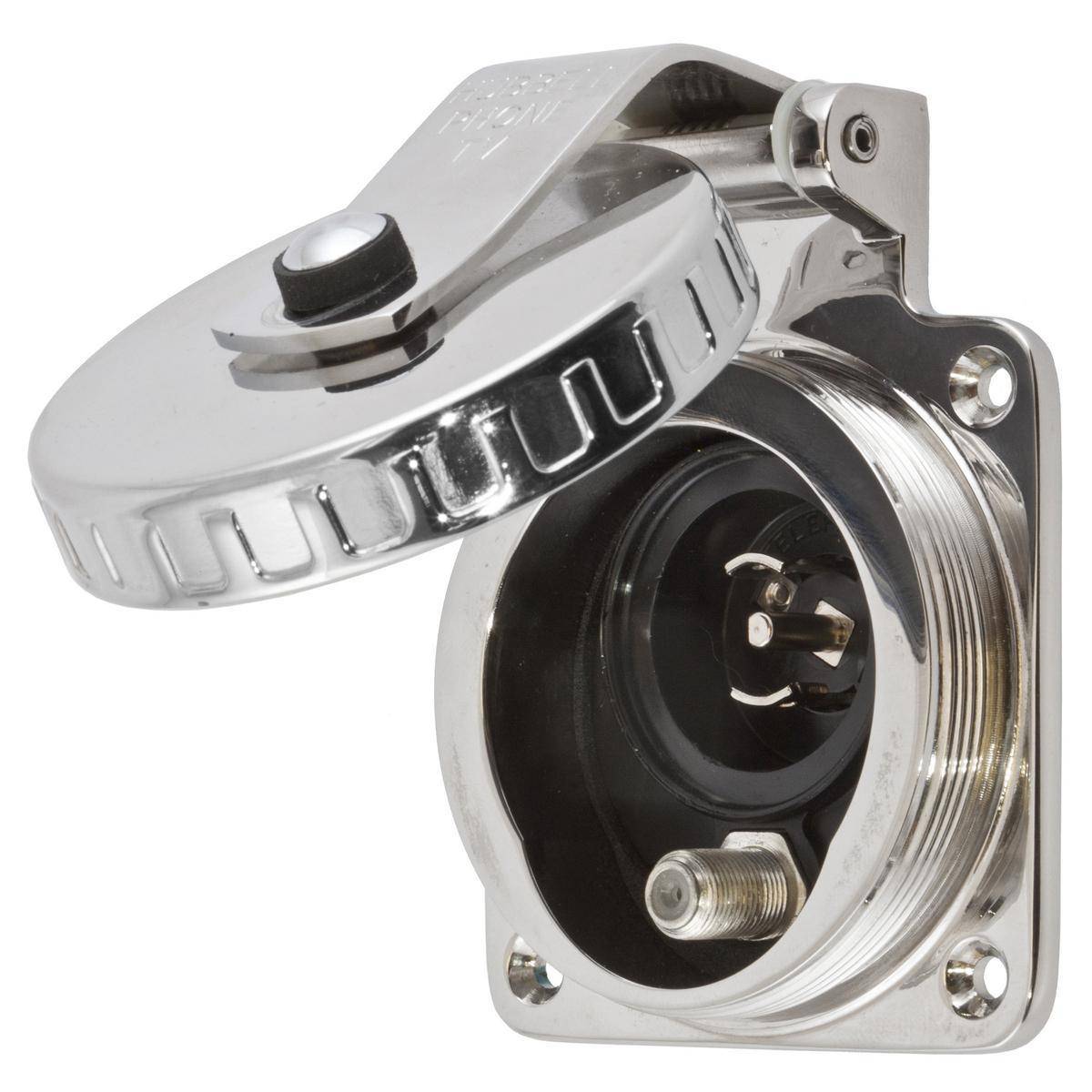

Wiring Device-Kellems HBLPHTVSS Grounding Standard Sized Screw Mount Watertight Hull Inlet, 2 Poles, 3 Wires, Black

Short Description

Ensure reliable connectivity and protection with the Wiring Device-Kellems HBLPHTVSS Grounding Watertight Hull Inlet. Designed for marine environments, this robust inlet features a standard screw mount, 2 poles, and 3 wires, delivering durability and performance you can trust. Enhanced by AI

Wiring Device-Kellems, HBLPHTVSS, Hull Inlet, Grounding Standard Sized Screw Mount Watertight, 2 Pole, 3 Wires, Marine Grade, IP56 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Black, 4.08 in L x 3.28 in W x 0.89 in H Dimensions

MFG #: HBLPHTVSS

EECO #: HUHBLPHTVSS

Brand: Wiring Device-Kellems
UPC #: 783585040561
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121406
Material
Thermoplastic
Application
Phone and TV Applications
Terminal Type
Pressure Screw
Number of Wires
3
Enclosure
IP56
Temperature Rating
-40 to 75
Type
Grounding Standard Sized Screw Mount Watertight
Grade
Marine
Includes
Mounting Screws and Gasket
Dimensions
4.08 in L x 3.28 in W x 0.89 in H
Features
  • Model: HBLPHTVSS
  • Type: Grounding Standard Sized Screw Mount Hull Inlet
  • Configuration: 2 Poles, 3 Wires
  • Color: Black
  • Material: Thermoplastic
  • Dimensions: 4.08 in L x 3.28 in W x 0.89 in H
  • Enclosure Rating: IP56 (Watertight)
  • Operating Temperature Range: -40 to 75 degrees Celsius
  • Connection Type: Pressure Screw Terminal
  • Grade: Marine Grade

Enhanced by AI

Wiring_Device_Kellems_HBLPHTVSS_Full_Engineering_Drawing
IDW_DOCUMENT_ab2ff7b2414b7221abbaf99d8ab7919716e24979651f9640c0fe4d71ceebcd9e
IDW_DOCUMENT_cd3c2cca7ed12029e243831c6bd61bd9c37d1a9d9c158c1ea82e017f52475d70
Wiring_Device_Kellems_HBL6080OS_Catalog
