Wiring Device-Kellems HBLPG003S00010MM 1-Phase Split Core Panel Monitor, For Use With HBL Series Data Monitoring, Lexan®

Short Description

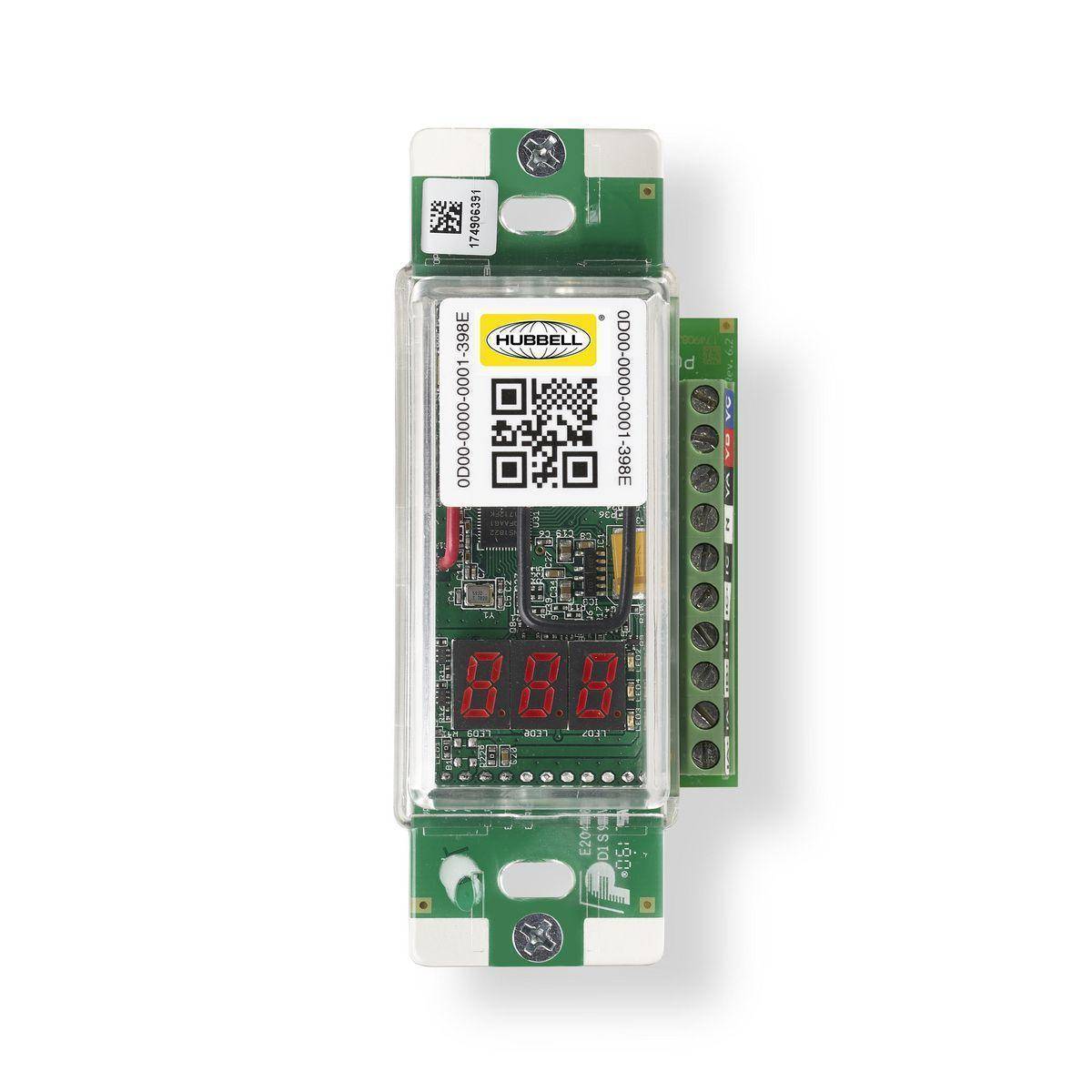

Hubbell's circuit monitors provide a means to monitor single and three phase circuits in pre-configured enclosure kits. These devices support 38 to 480 A applications and connect automatically to Hubbell's self configuring wireless mesh network. These systems allow for easy installation, with split core current transformers that can connect to existing circuits without the need to disconnect power. This real time monitor can help analyze power consumption, balanced loads, cost allocation and history trends.

Wiring Device-Kellems Panel Monitor, 1-Phase Split Core, For Use With: HBL Series Data Monitoring, Specifications: 240 VAC, 38 A, NEMA 1, 860 to 930 MHz/2.4 GHz Operating Frequency, up to 30 m Typical Transmission, 5 to 95% Non-Condensing Humidity, 20 to 167 deg F Operating, Lexan®, 10 mm Dimensions
MFG #: HBLPG003S00010MM

EECO #: HUHBLPG003S00010MM

Brand: Wiring Device-Kellems
UPC #: 783585569420
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121406
Material
Lexan®
Application
Indoor Applications
Enclosure Type
NEMA 1
Voltage Rating
240
Frequency Rating
860 to 930 MHz, 2.4 GHz
Type
1-Phase Split Core
Dimensions
10
Specifications
240 VAC, 38 A, NEMA 1, 860 to 930 MHz/2.4 GHz Operating Frequency, up to 30 m Typical Transmission, 5 to 95% Non-Condensing Humidity, 20 to 167 deg F Operating
Amperage Rating
38
Suitable For Use With
HBL Series Data Monitoring
Features

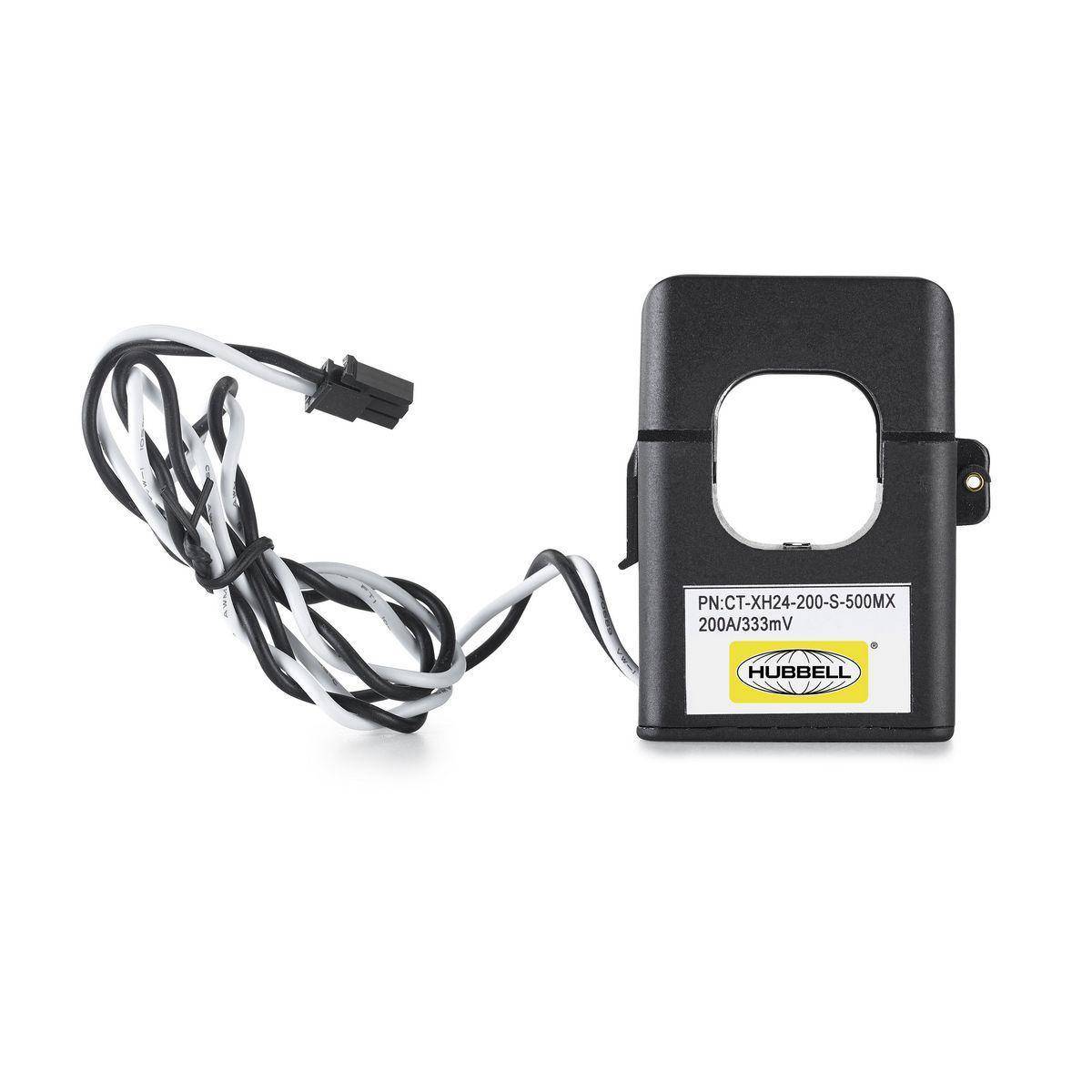

  • Split core current transformer

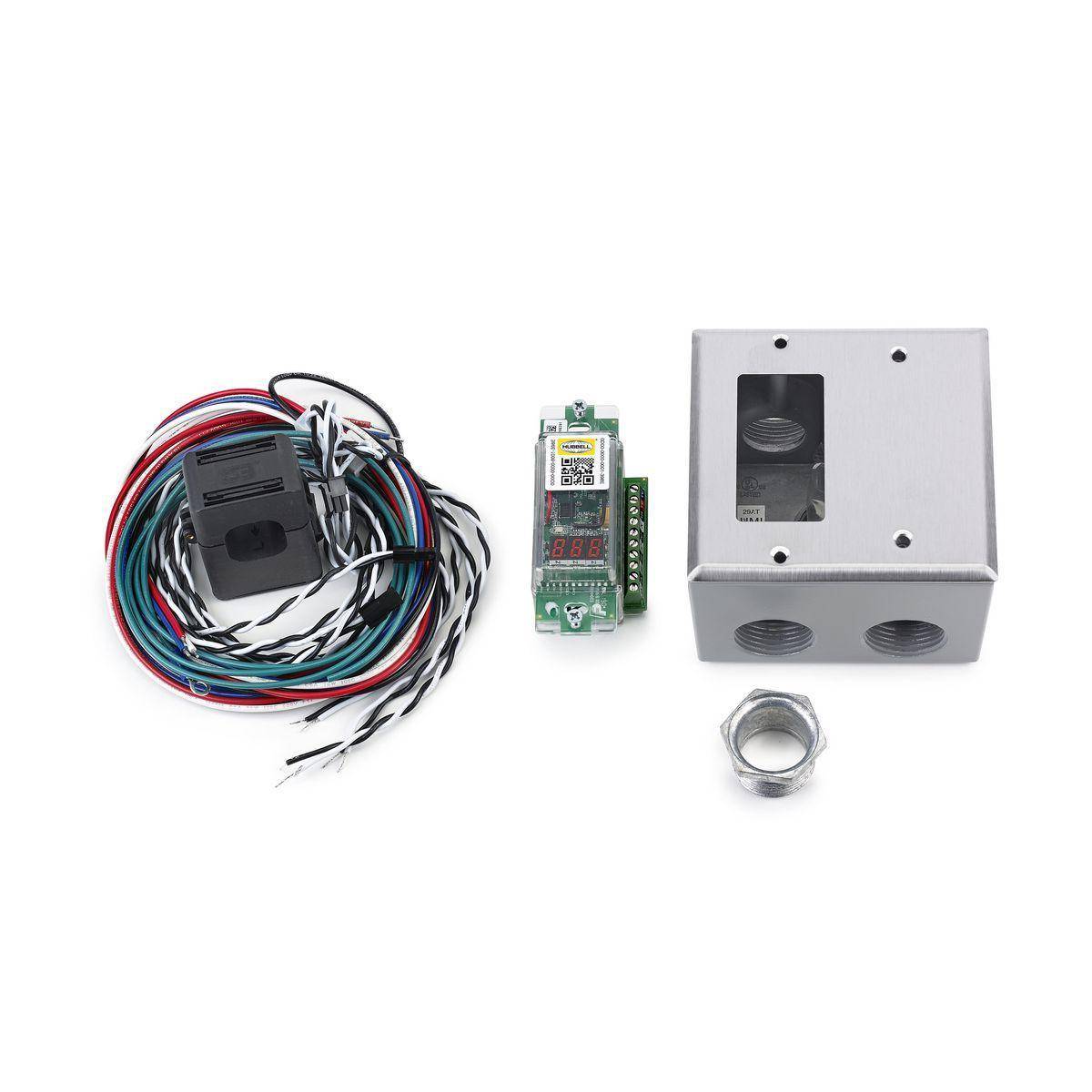

  • Pre-configured enclosure kit
  • Connect to existing circuits without the need to disconnect power
  • Devices support 38 to 480 A applications and connect automatically to Hubbell® self configuring wireless mesh network
  • Systems allow for easy installation, with split core current transformers that can connect to existing circuits without the need to disconnect power
  • Real time monitor can help analyze power consumption, balanced loads, cost allocation and history trends
