Wiring Device-Kellems HBLE306H000 Environmental Monitor, For Use With HBL Series Data Monitoring, Lexan®

Short Description

Hubbell's environmental monitors can accommodate up to six external temperature probes up to 4 m in length. Relative humidity sensing, internal to the device, is also available in this Hubbell model. These monitors are part of the same wireless mesh network that other power meters are part of and communicate directly with the Hubbell gateway. Each gateway can accept data from up to 150 nodes.

Wiring Device-Kellems Environmental Monitor, For Use With: HBL Series Data Monitoring, 240 VAC, NEMA 1 Enclosure, 860 to 930 MHz/2.4 GHz Operating Frequency, up to 30 m Typical Transmission, 5 to 95% Non-Condensing Humidity, 20 to 167 deg F Operating Temperature, Lexan®
MFG #: HBLE306H000

EECO #: HUHBLE306H000

Brand: Wiring Device-Kellems
UPC #: 783585569475
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121406
Material
Lexan®
Application
Indoor Applications
Display Type
LCD
Enclosure Type
NEMA 1
Voltage Rating
240
Frequency Rating
860 to 930 MHz, 2.4 GHz
Type
Standard
Specifications
240 VAC, NEMA 1 Enclosure, 860 to 930 MHz/2.4 GHz Operating Frequency, up to 30 m Typical Transmission, 5 to 95% Non-Condensing Humidity, 20 to 167 deg F Operating Temperature
Suitable For Use With
HBL Series Data Monitoring
Features

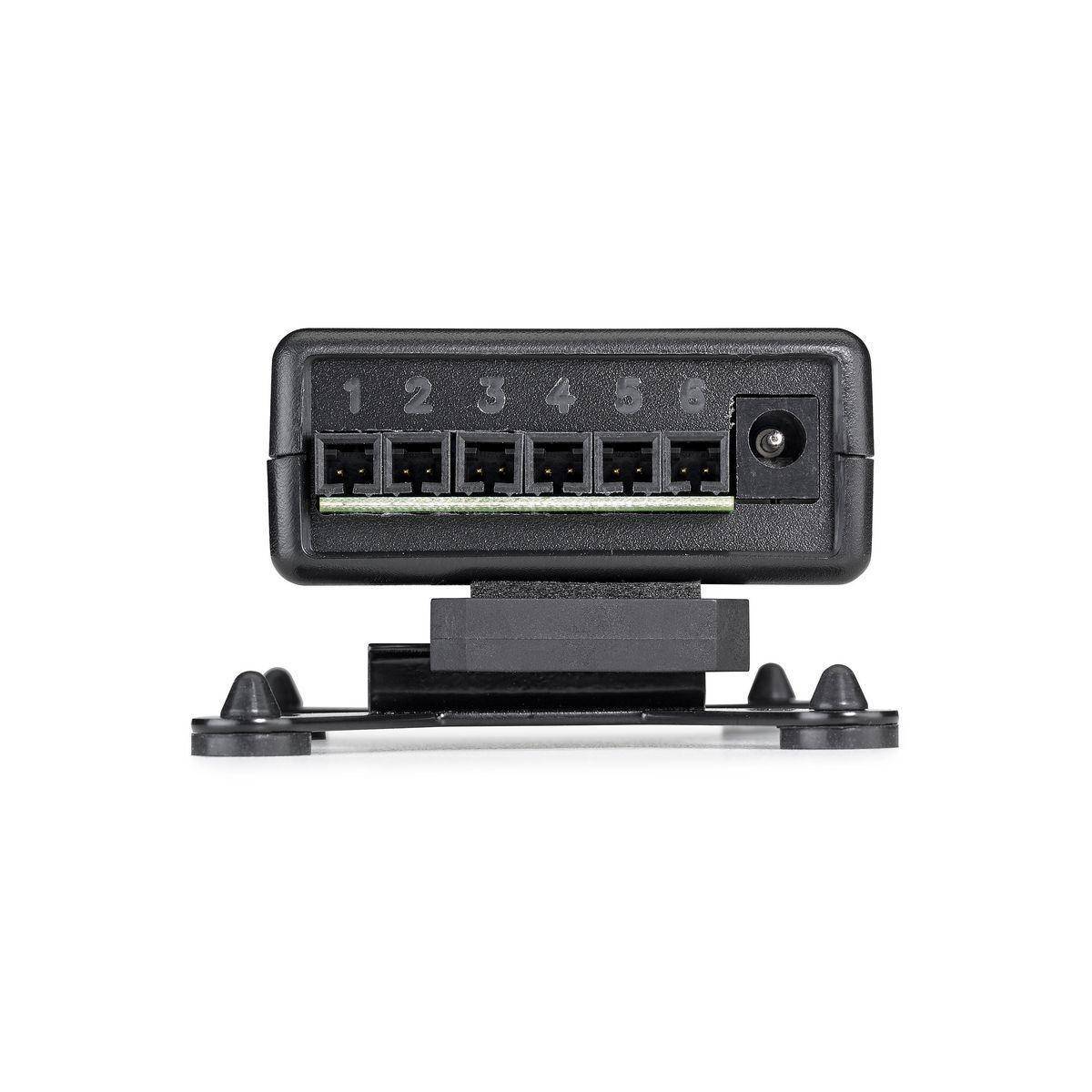

  • Accepts up to six temperature probes up to 4 m L
  • Internal humidity sensing
  • Monitors are part of the same wireless mesh network that other power meters are part of and communicate directly with the Hubbell gateway
  • Each gateway can accept data from up to 150 nodes

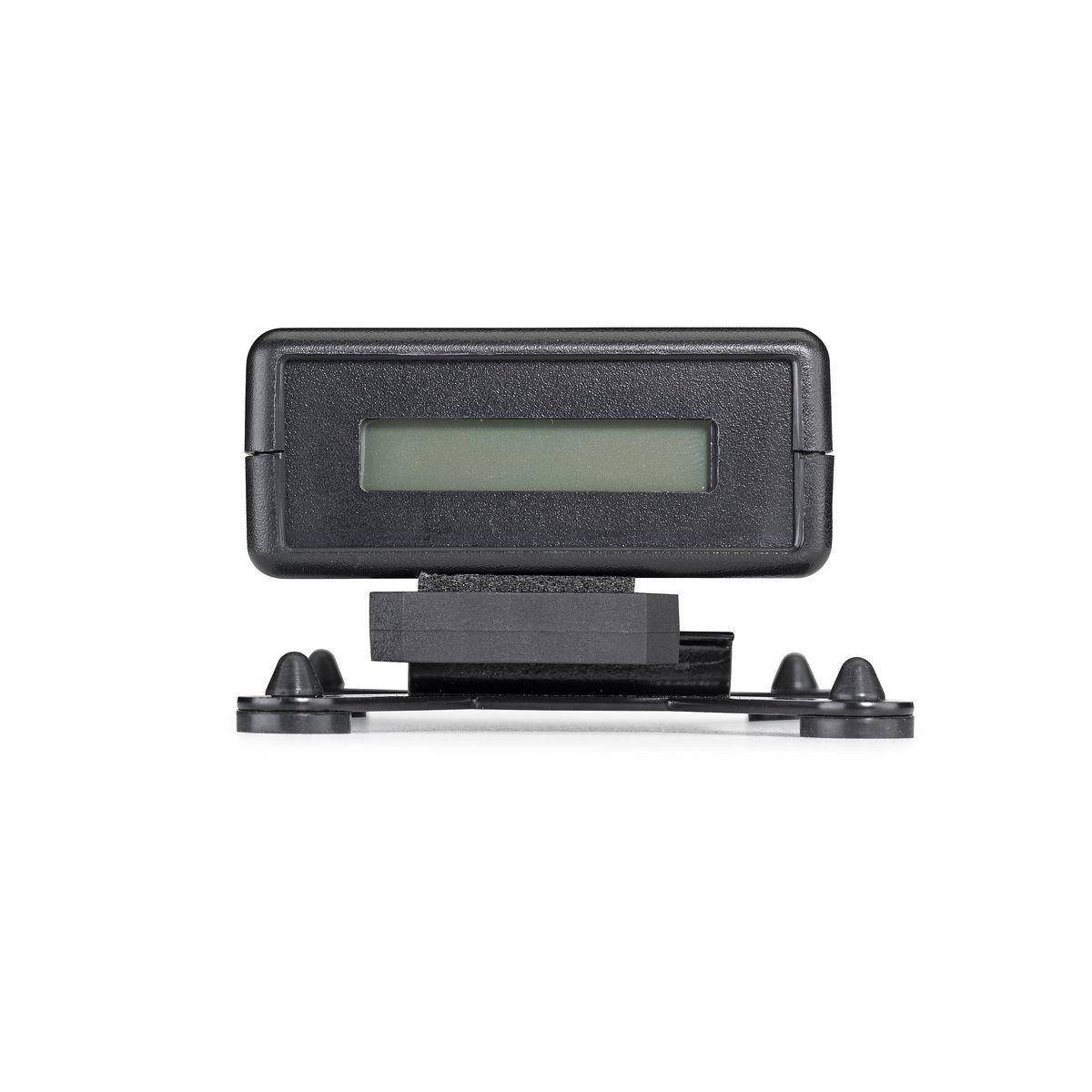

  • LCD for status and configuration
  • Wireless network protocol self configuring, load balancing mesh network
  • Wireless firmware updates
  • Fully enclosed, fixed configuration
