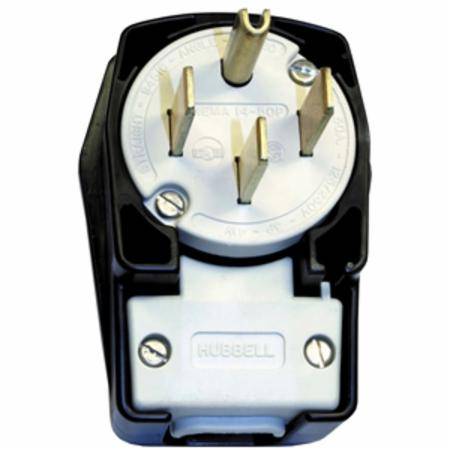

125/250 VAC 50 A 14-50P, Hubbell Incorporated HBL9452C Straight Blade Power Plug, Black/White

Short Description

125/250 V, 50 A, 14-50P, 3-Pole, 4-Wire, Black, White, Nylon, Grounding, Angled, Straight Blade Power Plug

Straight Blade Power Plug; Type Straight, Angled, 4-Position; Configuration 14-50P; Voltage Rating 125/250 Volt; Current Rating 50 Amp; Number of Poles 3; Number of Wires 4; Ground Type Grounding; Material Nylon; Color Black, White; Cord Size 0.625 to 1.31 Inch; Approval UL 498, Federal Specification UL, CSA C22.2; Power Rating 3 (2) HP; Blade Material 0.1 Inch Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C

MFG #: HBL9452C

EECO #: HUHBL9452C

Brand: Wiring Device-Kellems
UPC #: 783585015330
Attributes
Features
Documents
Product Information
Attributes
Color
Black, White
UNSPSC
39121402
Approval
UL 498, Federal Specification UL, CSA C22.2
Material
Nylon
Ground Type
Grounding
Current Rating
50 Amp
Voltage Rating
125/250 Volt AC
Number Of Poles
3
Number of Wires
4
Type
Straight, Angled, 4-Position Plug
Cord Size
0.625 to 1.31 Inch
Configuration
14-50P
Features
  • Type: Straight Blade Power Plug
  • Configuration: 14-50P
  • Voltage Rating: 125/250 VAC
  • Current Rating: 50 Amps
  • Number of Poles: 3
  • Number of Wires: 4
  • Ground Type: Grounding
  • Material: Nylon and 0.1 Inch Brass Blades
  • Color: Black and White
  • Cord Size: 0.625 to 1.31 Inches
  • Power Rating: 3 (2) HP
  • Enclosure Rating: IP20
  • Temperature Rating: -40 to 75 Degrees Celsius
  • Certifications: UL 498, Federal Specification UL, CSA C22.2

Enhanced by AI

Qty Unit price
Ea
1 $79.15

Slqt
1 $79.15

Stpk
1 $79.15

Unit
1 $79.15
