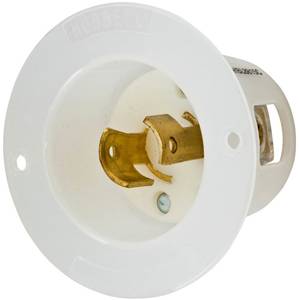

Print250 VAC 20 A L2-20P, Hubbell Incorporated HBL8815C Twist-Lock®, Insulgrip® Locking Device Flanged Inlet
Short Description
250 VAC, 20 A, 2-Pole, 2-Wire, L2-20P, Non-Grounding, White, Nylon, Polarized, Locking Device Flanged Inlet

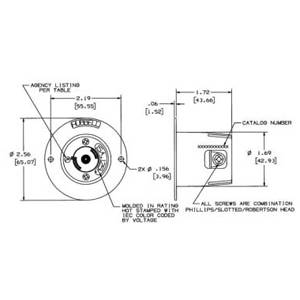

Locking Device Flanged Inlet; Type Polarized; Constructional Feature Impact Resistant; Configuration L2-20P; Voltage Rating 250 Volt AC; Current Rating 20 Amp; Number of Poles 2; Number of Wires 2; Ground Type Non-Grounding; Material Nylon; Color White; Approval UL 498, CSA C22.2; Overall Dimension 2.56 Inch Diameter x 1.72 Inch Height; Wire Size 16 to 8 AWG; Enclosure Rating IP20; Terminal Type Screw; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
MFG #:
HBL8815C
EECO #: HUHBL8815C
Brand:
Wiring Device-Kellems
UPC #:
783585180755
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $15.95 |
|
Slqt |
|
| 1 | $15.95 |
|
Stpk |
|
| 1 | $15.95 |
|
Unit |
|
| 1 | $15.95 |
