Hubbell

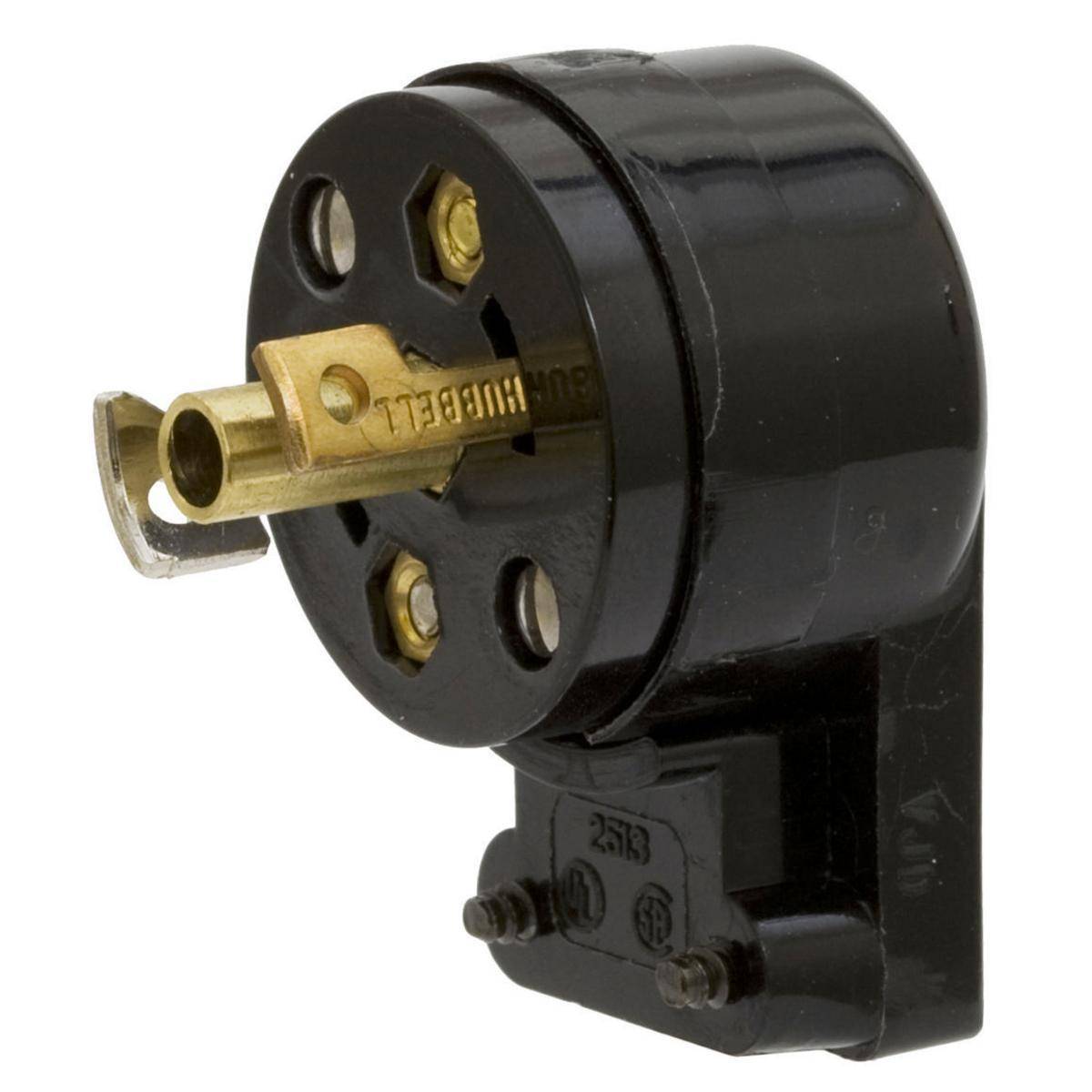

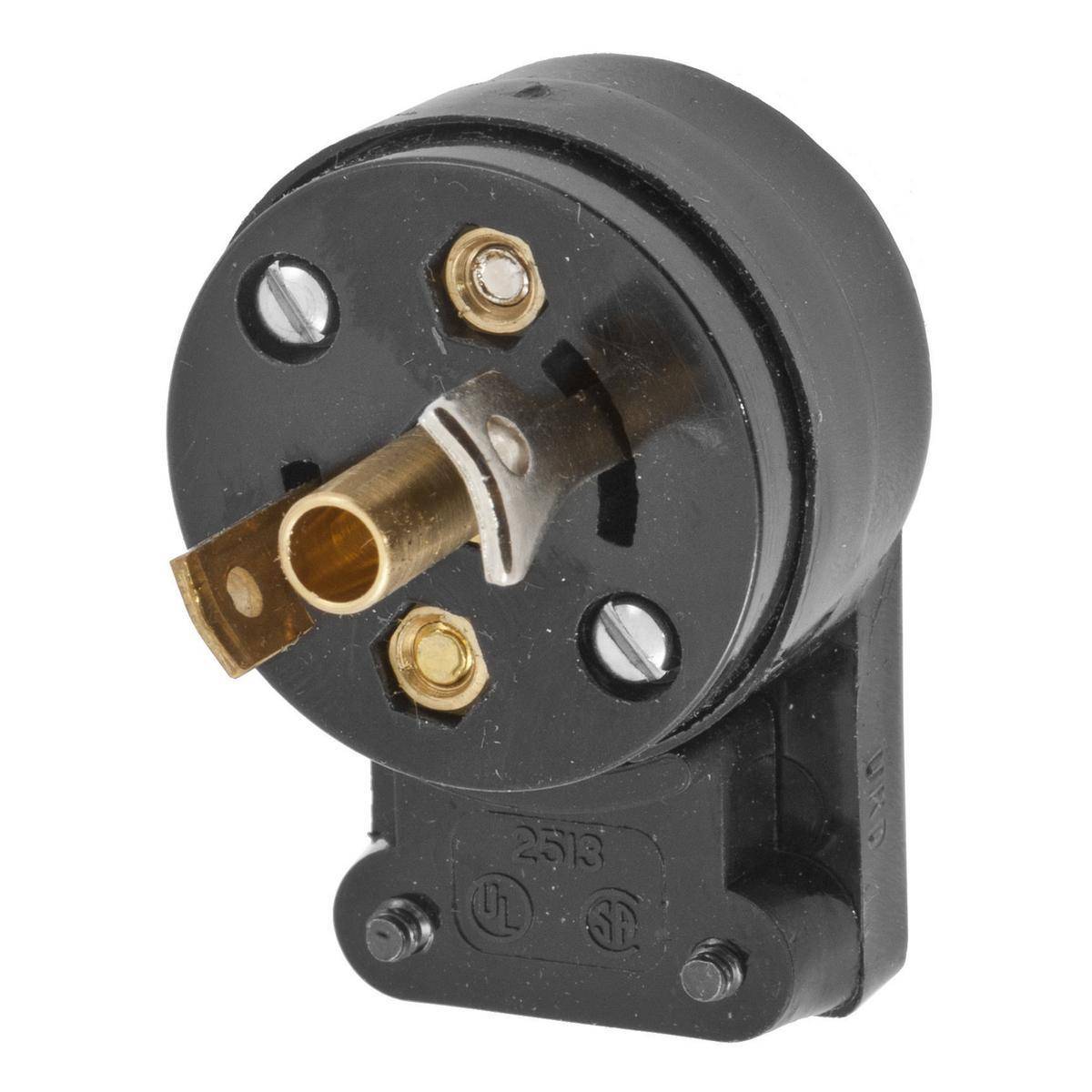

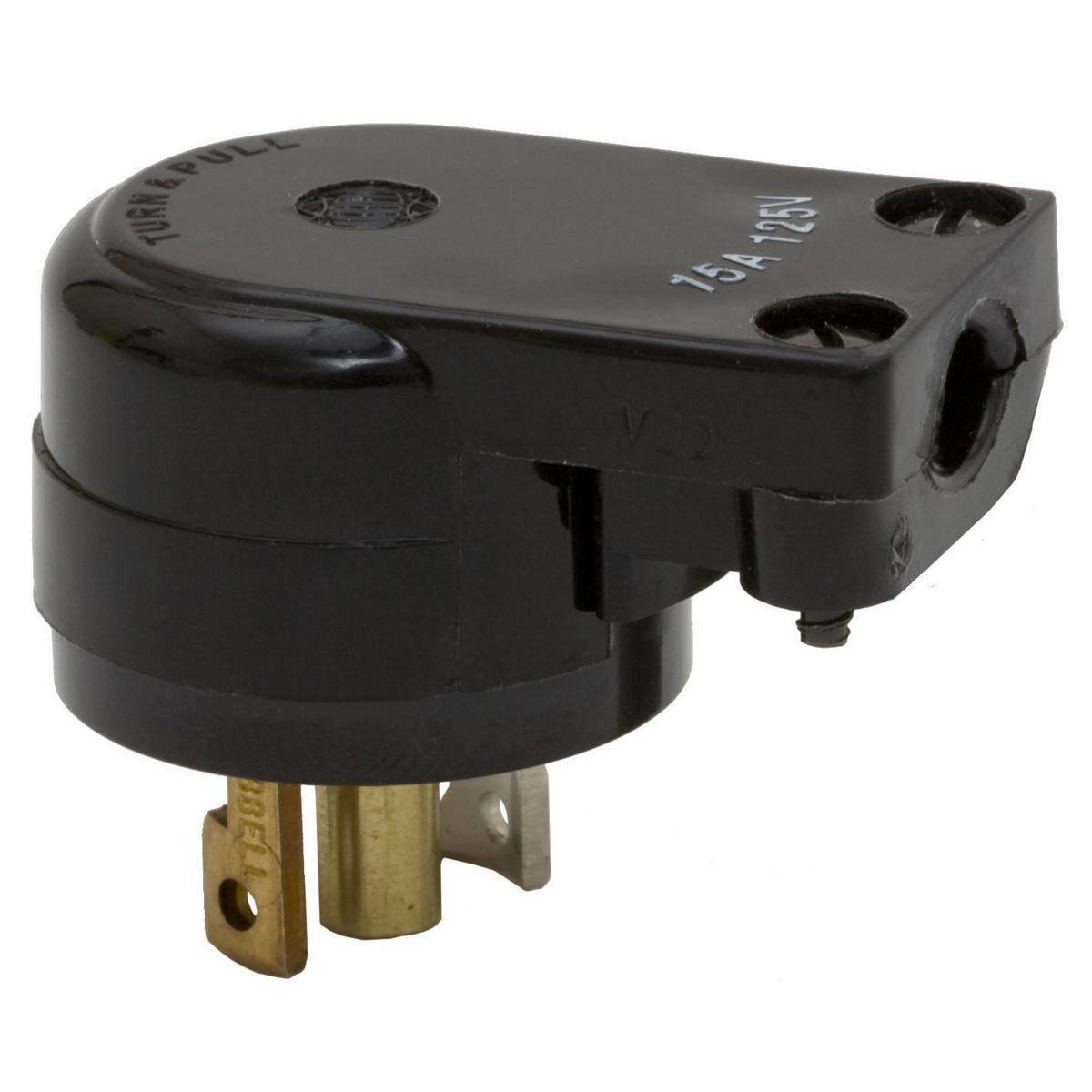

Wiring Device-Kellems HBL7570 1-Phase Angled Grounding Male Midget Cord Mount Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black

Short Description

Ensure reliable power connections with the Wiring Device-Kellems HBL7570 Angled Grounding Male Midget Locking Plug. Designed for industrial use, this durable plug features a compact design and exceptional temperature resistance, making it perfect for demanding environments.Enhanced by AI

Wiring Device-Kellems, HBL7570, Locking Plug, 1-Phase Angled Grounding Male Midget Cord Mount, 125 VAC, 15 A, 2 Pole, 3 Wires, ML-2P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.335 to 0.421 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 1.68 x 1.17 x 1.33 in Dimensions

MFG #: HBL7570

EECO #: HUHBL7570

Brand: Wiring Device-Kellems
UPC #: 783585237688
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121403
Material
Nylon
Application
Dry Locations, Power Connection and Indoor Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
1-Phase Angled Grounding Male Midget Cord Mount
Grade
Industrial
Dimensions
1.68 x 1.17 x 1.33
Amperage Rating
15
Features
  • Abuse resistant nylon housing
  • 2000 VAC minimum dielectric withstand voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 10 to 6 AWG terminal accommodation
  • Safety shroud stainless steel
  • Nylon shell construction
  • Copper box terminal
  • Supertough® nylon front and rear housing
  • Phenolic body for high heat resistance
  • Angled body design for low profile in tight spaces
  • Totally insulated body adds extra measure of safety
  • Glass reinforced PET blade holder/terminal retainer/cord clamp
  • Brass blade
  • 302/304 stainless steel cord clamp screw/body holding screw
  • Molded-in or stamped-on ratings
