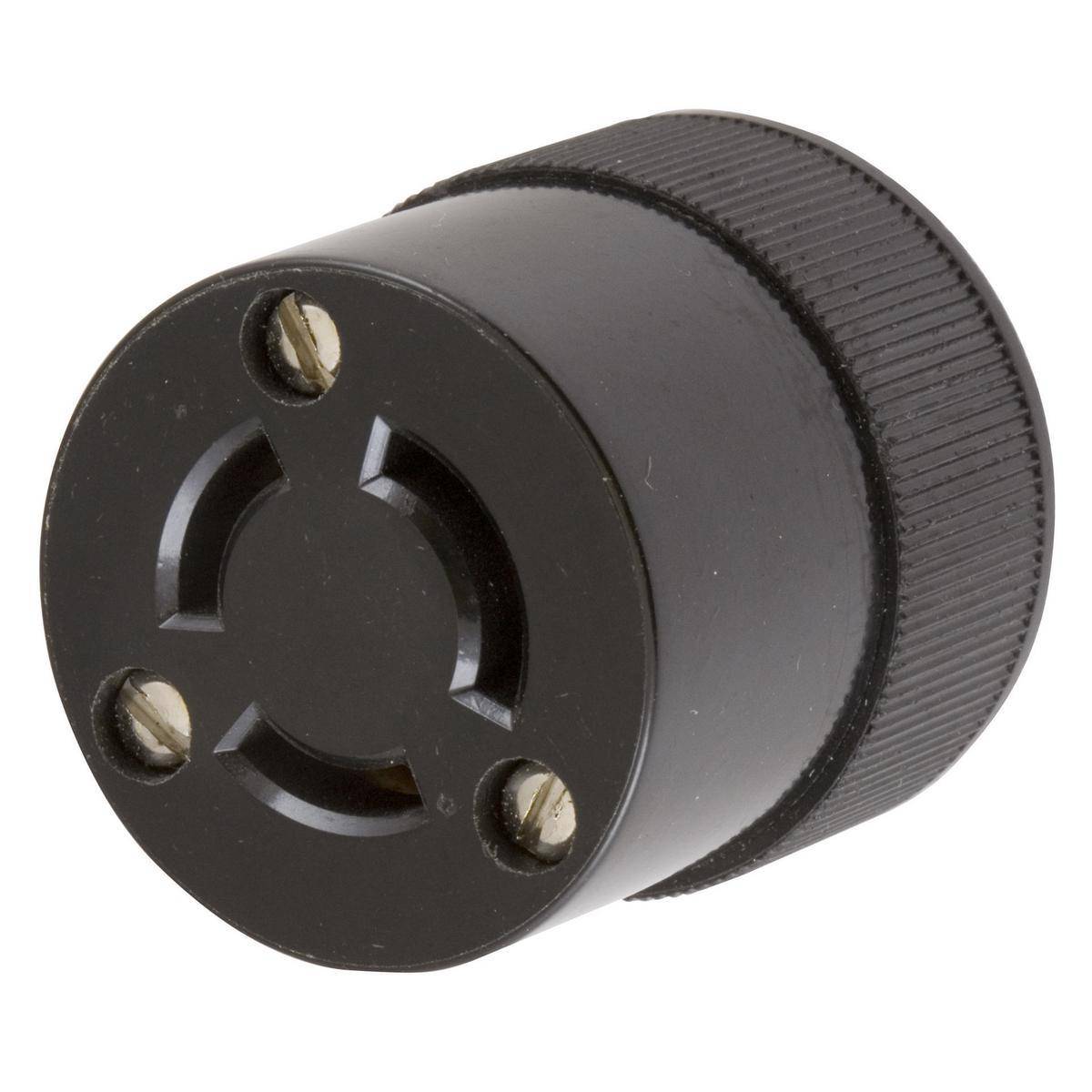

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL7555 Female Non-Grounding Standard Cord Mount Locking Connector, 125/250 VAC, 10 A, 3 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL7555 Female Non-Grounding Standard Cord Mount Locking Connector, 125/250 VAC, 10 A, 3 Poles, 3 Wires, Black

Short Description

Experience reliable connectivity with the Wiring Device-Kellems Twist-Lock® Insulgrip® HBL7555 Female Non-Grounding Connector. Designed for industrial applications, this durable locking connector ensures secure connections for your 125/250 VAC systems, accommodating a range of cord diameters. Perfect for any challenging environment.Enhanced by AI

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, Female Non-Grounding Standard Cord Mount, 125/250 VAC, 10 A, 3 Pole, 3 Wires, Industrial Grade, IP20 Enclosure, 0.296 to 0.625 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Phenolic, Black, 1.53 x 1.53 x 2.78 in

MFG #: HBL7555

EECO #: HUHBL7555

Brand: Wiring Device-Kellems
UPC #: 783585237626
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121421
Material
Phenolic
Application
Heavy Duty Industrial Applications
Terminal Type
Pressure Screw
Voltage Rating
125/250
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
Female Non-Grounding Standard Cord Mount
Grade
Industrial
Dimensions
1.53 x 1.53 x 2.78
Amperage Rating
10
Features
  • Clear polycarbonate terminal retainer, impact modified PBT housing, white valox cord clamp
  • Natural (white) nylon cord clamp
  • Cold rolled steel nickel plated terminal clamp
  • #8-32 brass (white finish on neutral screw when used) terminal screw
  • #8-32 brass (green finish) ground screw
  • Natural white nylon body contact carrier
  • Brass contact spring and spring binding plate
  • 0.031 in brass ground contact
  • Molded-in or stamped-on ratings
  • Permanently ink marked on product catalog number
  • Withstands 2000 VAC minimum dielectric voltage
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
  • 15 A 14 AWG terminal accommodation
  • Individually molded face for each blade configuration keeps debris out of plug interior
  • Ribbed nylon housing provides secure, impact and chemical resistant grip
  • Roomy wiring chamber provides ample space for wiring
  • Standard style
  • Cord mounted
  • Insulated body
  • Indoor dry unless protected by additional means
