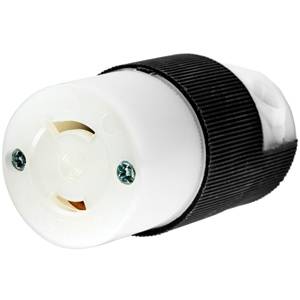

Print125 VAC 15 A L1-15R, Hubbell Incorporated HBL7506C Twist-Lock®, Insulgrip® Locking Device Connector
Short Description
125 VAC, 15 A, 18 to 10 AWG, 2-Pole, 2-Wire, Black/White, Nylon, NEMA L1-15R, Polarized, Locking Device Connector
Locking Device Connector; Type Polarized; Constructional Feature Impact/Chemical Resistant; Configuration L1-15R; Voltage Rating 125 Volt AC; Current Rating 15 Amp; Number of Poles 2; Number of Wires 2; Ground Type Non-Grounding; Material Nylon; Color Black/White; Cord Size 0.22 to 0.72 Inch; Approval UL 498, CSA C22.2; Wire Size 18 to 10 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
MFG #:
HBL7506C
EECO #: HUHBL7506C
Brand:
Wiring Device-Kellems
UPC #:
783585177908
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $16.60 |
|
Slqt |
|
| 1 | $16.60 |
|
Stpk |
|
| 1 | $16.60 |
|
Unit |
|
| 1 | $16.60 |
