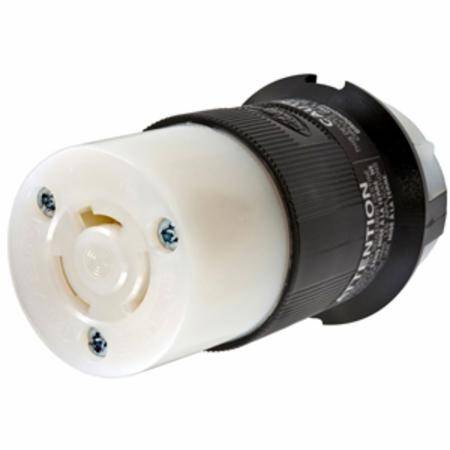

125/250 VAC 20 A Non-NEMA, Hubbell Incorporated HBL7314C Twist-Lock®, Insulgrip® Locking Device Connector
Share Share Print Print
Hubbell

125/250 VAC 20 A Non-NEMA, Hubbell Incorporated HBL7314C Twist-Lock®, Insulgrip® Locking Device Connector

Short Description

125/250 VAC, 20 A, 16 to 8 AWG, 3-Pole, 3-Wire, Black/White, Nylon, Non-NEMA, Polarized, Locking Device Connector

Locking Device Connector; Type Polarized; Constructional Feature Impact/Chemical Resistant; Configuration Non-NEMA Locking; Voltage Rating 125/250 Volt AC; Current Rating 20 Amp; Number of Poles 3; Number of Wires 3; Ground Type Non-Grounding; Material Nylon; Color Black/White; Cord Size 0.36 to 0.93 Inch; Approval UL, CSA C22.2; Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C

MFG #: HBL7314C

EECO #: HUHBL7314C

Brand: Wiring Device-Kellems
UPC #: 783585037509
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121400
Approval
UL, CSA C22.2
Material
Nylon
Ground Type
Non-Grounding
Current Rating
20 Amp
Voltage Rating
125/250 Volt AC
Number Of Poles
3
Number of Wires
3
Type
Polarized, Connector
Cord Size
0.36 to 0.93 Inch
Configuration
Non-NEMA Locking
Constructional Feature
Impact/Chemical Resistant
Features
  • Ribbed Nylon Housing Provides Secure, Impact and Chemical Resistant Grip
  • Superior Cord Grip Design Protects Terminations from Excess Strain
  • Integral Vari-Size Insert Accommodates a Wide Range of Cord Diameters
HUBKELE04513_1
HUBKELE15739_B14_B45
HUBKELINST00637
Qty Unit price
Ea
1 $37.60

Slqt
1 $37.60

Stpk
1 $37.60

Unit
1 $37.60
