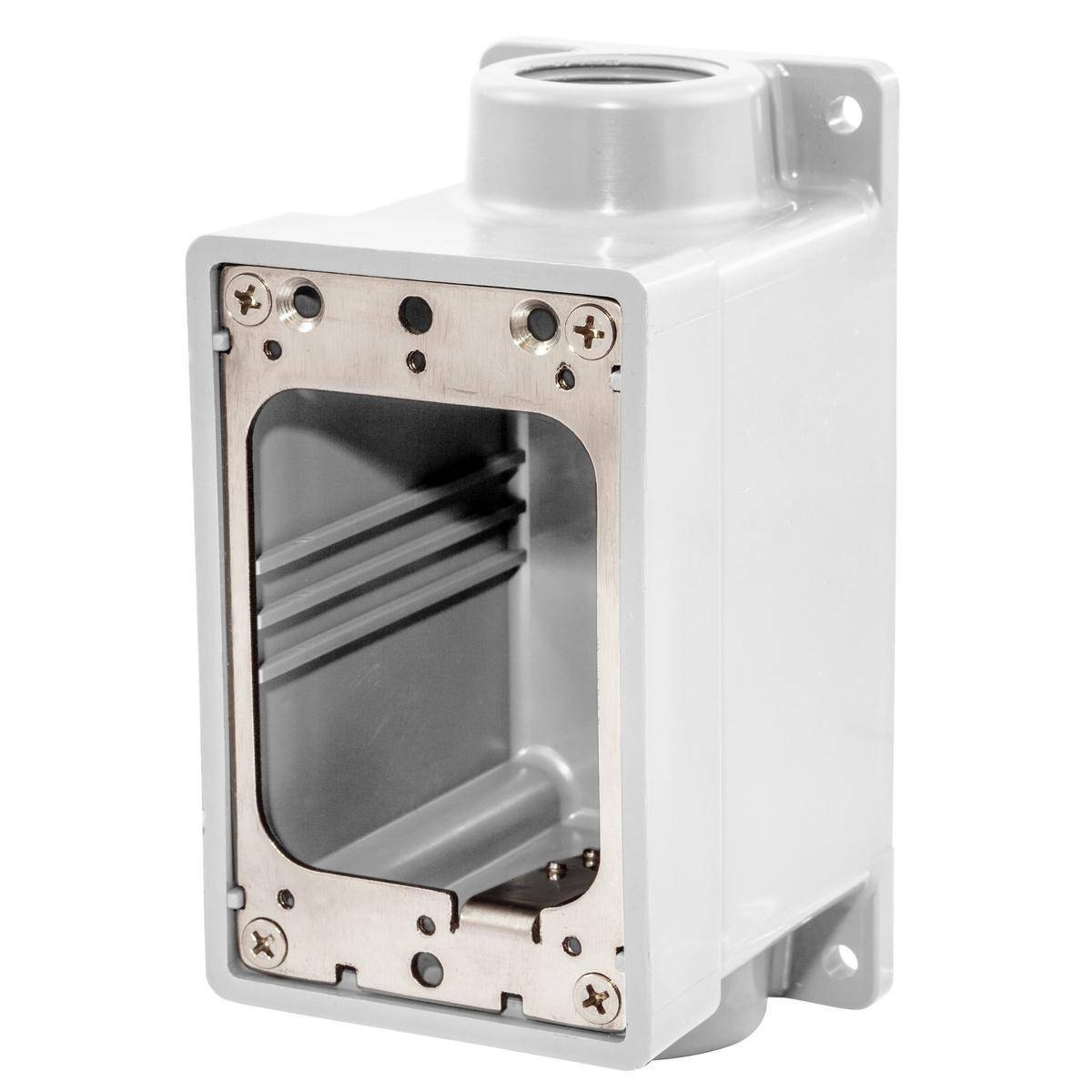

Wiring Device-Kellems HBL60CM83WA Non-Metallic Standard Watertight Molded FD Box, PBT, 22 cu-in Capacity, (1) Outlets, 5.95 in L x 2.94 in H
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL60CM83WA Non-Metallic Standard Watertight Molded FD Box, PBT, 22 cu-in Capacity, (1) Outlets, 5.95 in L x 2.94 in H

Short Description

Discover the ultimate protection for your electrical connections with the Wiring Device-Kellems HBL60CM83WA Non-Metallic Watertight Molded FD Box. Designed for durability and efficiency, this box features a generous 22 cu-in capacity and a sleek, compact design. Perfect for any environment, it ensures reliable performance in challenging conditions.Enhanced by AI

Wiring Device-Kellems, HBL60CM83WA, FD Box, Non-Metallic Standard Watertight Molded, 1 Outlets, 3/4 in NPT Knockout, (2) 3/4 in Hub, NPT Hub, NEMA WD-1/WD-6 Enclosure, -40 to 75 deg C, Threaded Mounting, 22 cu-in Capacity, PBT, White, 5.95 in L x 2.94 in H Dimensions

MFG #: HBL60CM83WA

EECO #: HUHBL60CM83WA

Brand: Wiring Device-Kellems
UPC #: 783585528786
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39121332
Hub Size
(2) 3/4
Material
PBT
Application
Industrial and Commercial Applications
Knockout Size
3/4 in NPT
Mounting Type
Threaded
Enclosure Type
NEMA WD-1/WD-6
Number of Outlets
1.0000
Temperature Rating
-40 to 75
Type
Non-Metallic Standard Watertight Molded
Capacity
22
Dimensions
5.95 in L x 2.94 in H
Features
  • 30 cu-in FD box made of impact resistant PBT
  • Accepts duplex and single receptacles up to 50 A
  • External mounting feet
