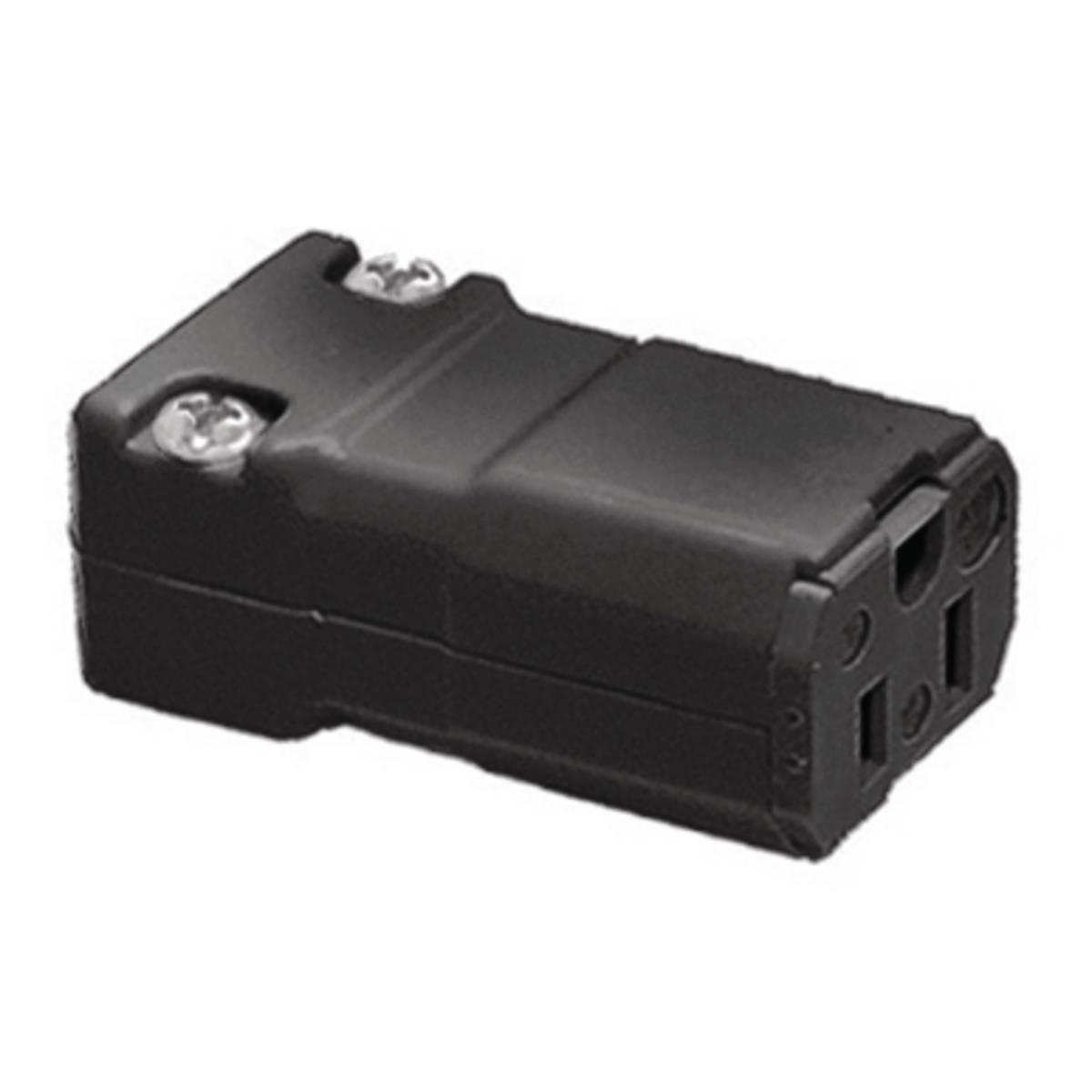

Wiring Device-Kellems Valise® HBL5969VBLK Female Grounding Insulated Cord Mount Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Wiring Device-Kellems Valise® HBL5969VBLK Female Grounding Insulated Cord Mount Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Wiring Device-Kellems Valise® HBL5969VBLK Female Grounding Insulated Cord Mount Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Wiring Device-Kellems Valise® HBL5969VBLK Female Grounding Insulated Cord Mount Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems Valise® HBL5969VBLK Female Grounding Insulated Cord Mount Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black

Short Description

Ensure reliable connections with the Wiring Device-Kellems Valise® HBL5969VBLK Female Grounding Insulated Cord Mount Connector. Designed for commercial and industrial use, this durable black connector supports 125 VAC and 15 A, making it ideal for your power needs.

Wiring Device-Kellems Valise® Straight Blade Connector, Female Grounding Insulated Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.68 x 1.32 x 2.68 in

MFG #: HBL5969VBLK

EECO #: HUHBL5969VBLK

Brand: Wiring Device-Kellems
UPC #: 783585013275
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121421
Material
Nylon
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
Female Grounding Insulated Cord Mount
Grade
Commercial/Industrial
Dimensions
2.68 x 1.32 x 2.68
Horsepower
1/2
Amperage Rating
15
Features
  • Hinged one-piece body design for easy assembly
  • Powerful, offsetting cord grips clamp on individual conductors
  • Assembly screws are captive and will not fall out while wiring
  • Withstands 2000 VAC minimum dielectric voltage
  • 18 to 12 AWG copper conductor terminal accommodation
  • Certified for current interrupting at full rated current
  • -40 to 75 deg C operating temperature
IDW_DOCUMENT_49242a521d5790f7761a01fed03c5f7a91f2ce83ffd1534cffbc757e2914ade7
IDW_DOCUMENT_a79b20b50d861b3fa4573977389588977f48bbee04d21d16e393ff0fb308d974
IDW_DOCUMENT_bc3b898bd12a9bc8c32e506b16f3e6f54b5c7de75b05acf8718c26db79286a8c
Wiring_Device_Kellems_HBL15W33_Catalog
