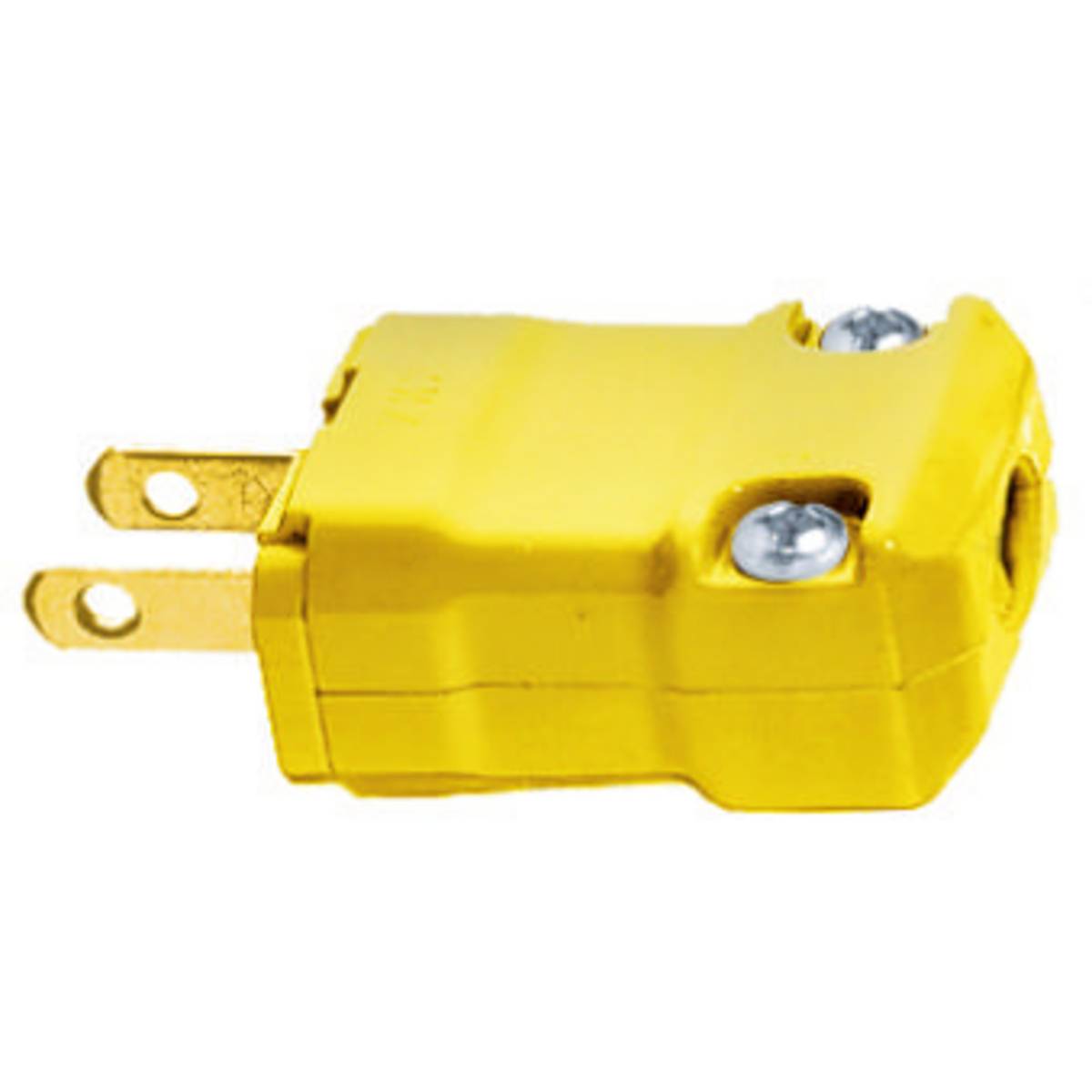

Wiring Device-Kellems Valise® HBL5865VY 1-Phase Grounding Male Portable Standard Cord Mount Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 2 Wires, Yellow

Short Description

Hubbell® straight blade Valise® plugs and connector bodies are ideal for OEMs because their superior performance will help your own products perform better. Valise® devices are designed to be easy to wire and quick to assemble. Yet, they provide superior cord gripping, impact- and crush resistance and a totally insulated body for added safety.

Wiring Device-Kellems Valise® Straight Blade Plug, 1-Phase Grounding Male Portable Standard Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 2 Wires, 1-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.218 to 0.385 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Yellow, 1.68 x 1.25 x 0.88 in

MFG #: HBL5865VY

EECO #: HUHBL5865VY

Brand: Wiring Device-Kellems
UPC #: 783585013060
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121402
Material
Composite
Application
Dry Location and Indoor Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
2
Enclosure
IP20
Temperature Rating
-40 to 75
Type
1-Phase Grounding Male Portable Standard Cord Mount
Grade
Commercial/Industrial
Dimensions
1.68 x 1.25 x 0.88
Horsepower
1/2
Amperage Rating
15
Features
  • Hinged one piece body design for easy assembly
  • Powerful, off setting cord grips clamp on individual conductors
  • Assembly screws are captive and will not fall OUT while wiring
  • Noryl® (polyphenylene oxide) cord clamp material
  • 0.06 in brass contact blades
  • 0.04 in brass ground contact blade
  • Steel (copper finish) terminal screw
  • Steel (green finish) ground screw
  • Withstands 2000 VAC dielectric voltage
  • Certified for current interrupting at full rated current
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Terminals identified in accordance with UL 498 (brass, white, green)
  • 18 to 14 AWG solid or stranded copper conductor terminal accommodation
  • Ratings are a permanent part of the device product identification
  • UL 94 V-2 flammability rating
