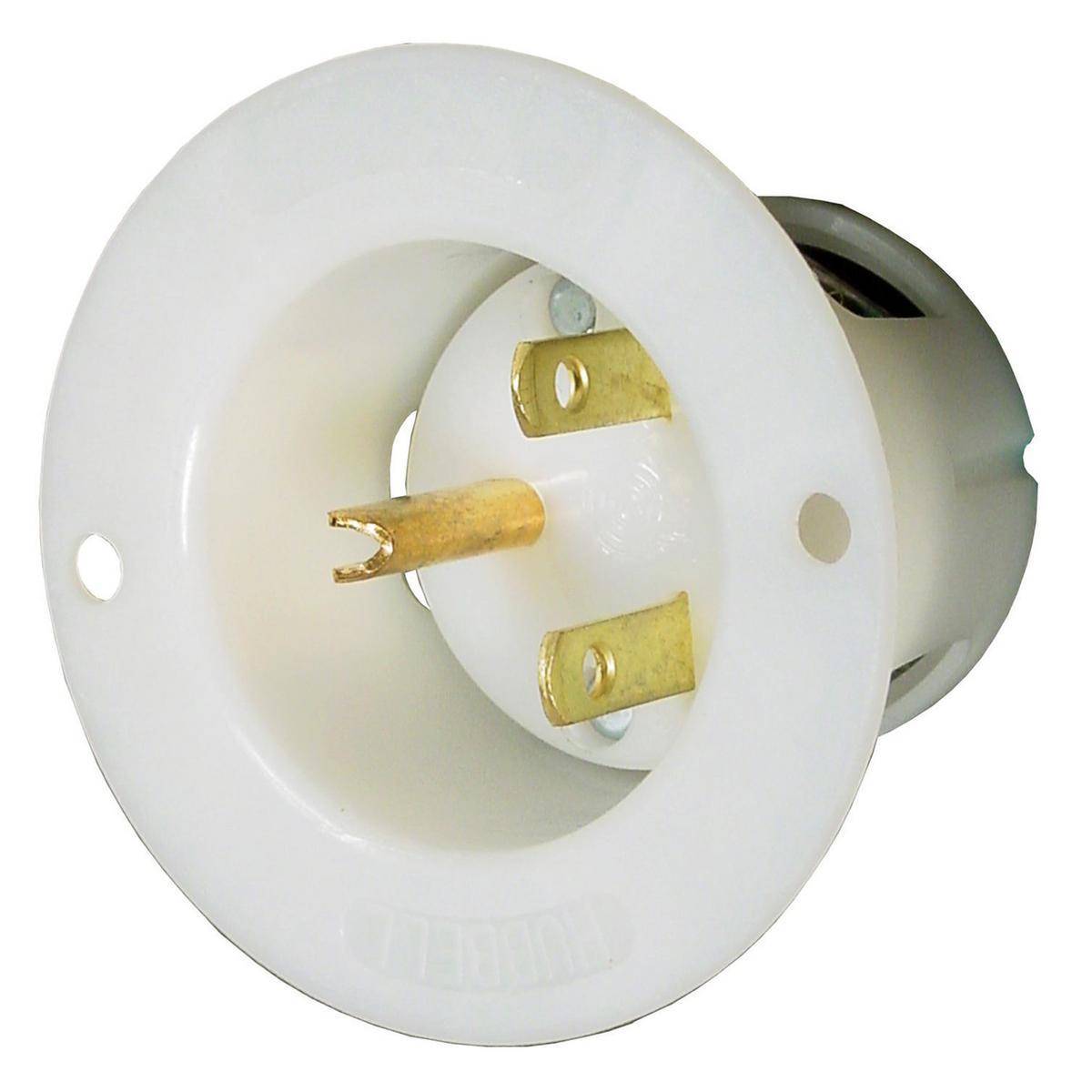

Wiring Device-Kellems HBL5678C 1-Phase Male Standard Screw Mount Straight Blade Flanged Inlet, 250 VAC, 15 A, 2 Poles, 3 Wires, White
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL5678C 1-Phase Male Standard Screw Mount Straight Blade Flanged Inlet, 250 VAC, 15 A, 2 Poles, 3 Wires, White

Short Description

Enhance your electrical installations with the Wiring Device-Kellems HBL5678C Flanged Inlet, designed for reliable performance and durability in commercial and industrial settings. This 1-Phase Male Standard inlet is perfect for your 250 VAC, 15 A needs, featuring a robust screw mount and a sleek white finish.Enhanced by AI

Wiring Device-Kellems, HBL5678C, Straight Blade Flanged Inlet, 1-Phase Male Standard Screw Mount, 250 VAC, 15 A, 50/60 Hz Frequency, 2 Pole, 3 Wires, 6-15P NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Screw Terminal, Nylon, White, 1.72 x 2.56 x 2.56 in Dimensions

MFG #: HBL5678C

EECO #: HUHBL5678C

Brand: Wiring Device-Kellems
UPC #: 783585175959
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39121406
Material
Nylon
Application
Extra Heavy Duty Industrial Applications
Terminal Type
Screw
Voltage Rating
250
Number of Wires
3
Frequency Rating
50/60
Temperature Rating
-40 to 75
Type
1-Phase Male Standard Screw Mount
Grade
Commercial/Industrial
Includes
Mounting Screws
Dimensions
1.72 x 2.56 x 2.56
Amperage Rating
15
Features
  • #8-32 brass (green) ground screw
  • Backwired terminations for ease of installation
  • 14 to 12 AWG wire
  • Brass-nickel plated mounting screw
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
  • Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
  • 18 to 10 AWG copper stranded or solid conductor only terminal accommodation
  • 0.04 in brasses power contacts
  • Standard non-metallic inlet
  • Withstands 2000 VAC minimum dielectric voltage
  • Impact resistant thermoplastic construction
