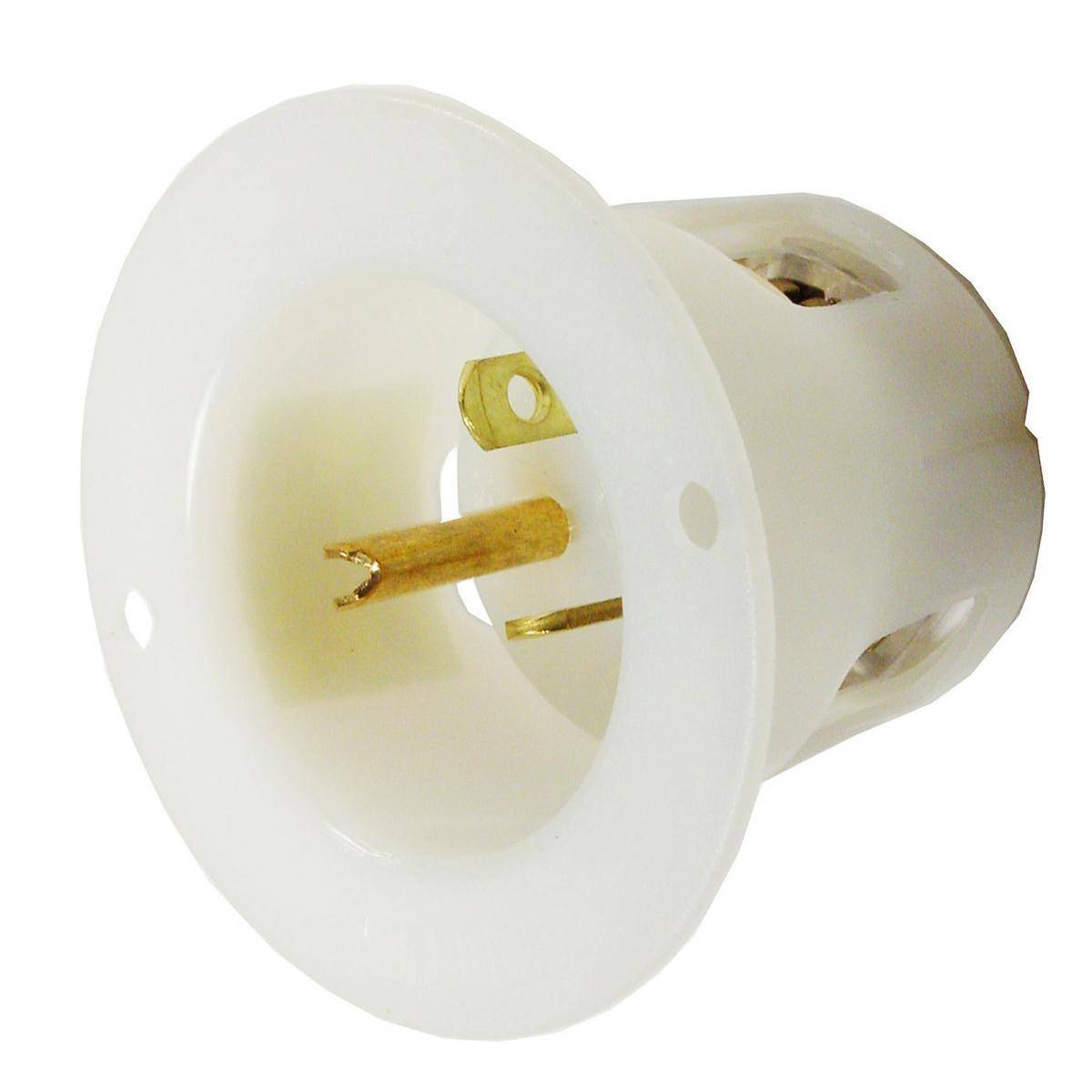

Wiring Device-Kellems Insulgrip® HBL5478C 1-Phase Extra Heavy Duty Male Grounding Screw Mount Straight Blade Flanged Inlet, 250 VAC, 20 A, 2 Poles, 3 Wires, White
Share Share Print Print
Hubbell

Wiring Device-Kellems Insulgrip® HBL5478C 1-Phase Extra Heavy Duty Male Grounding Screw Mount Straight Blade Flanged Inlet, 250 VAC, 20 A, 2 Poles, 3 Wires, White

Short Description

Elevate your electrical connections with the Wiring Device-Kellems Insulgrip® HBL5478C. This extra heavy-duty male grounding screw mount straight blade flanged inlet is designed for optimal performance and durability, offering reliable operation at 250 VAC and 20 A. Ideal for industrial applications, its robust construction and superior design ensure safety and efficiency in any setting.Enhanced by AI

Wiring Device-Kellems Insulgrip® Straight Blade Flanged Inlet, 1-Phase Extra Heavy Duty Male Grounding Screw Mount, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, 6-20P NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Nylon, White, 1.72 x 2.56 x 2.56 in

MFG #: HBL5478C

EECO #: HUHBL5478C

Brand: Wiring Device-Kellems
UPC #: 783585174952
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39121406
Material
Nylon
Terminal Type
Screw
Voltage Rating
250
Number of Wires
3
Temperature Rating
-40 to 75
Type
1-Phase Extra Heavy Duty Male Grounding Screw Mount
Grade
Industrial
Dimensions
1.72 x 2.56 x 2.56
Horsepower
2
Amperage Rating
20
Features
  • Brass power contacts
  • #8-32 brass, multiple drive terminal screw material
  • Withstands 2000 VAC minimum dielectric voltage
  • Certified for current interrupting at full rated current
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Terminals identified in accordance with UL498 (brass, white, green) terminal identification
  • 18 to 10 AWG solid or stranded copper conductor terminal accommodation
  • Nylon top, polycarbonate base, 0.04 in brass power contacts, brass-nickel plated mounting screw 0.16 in Dia hole
