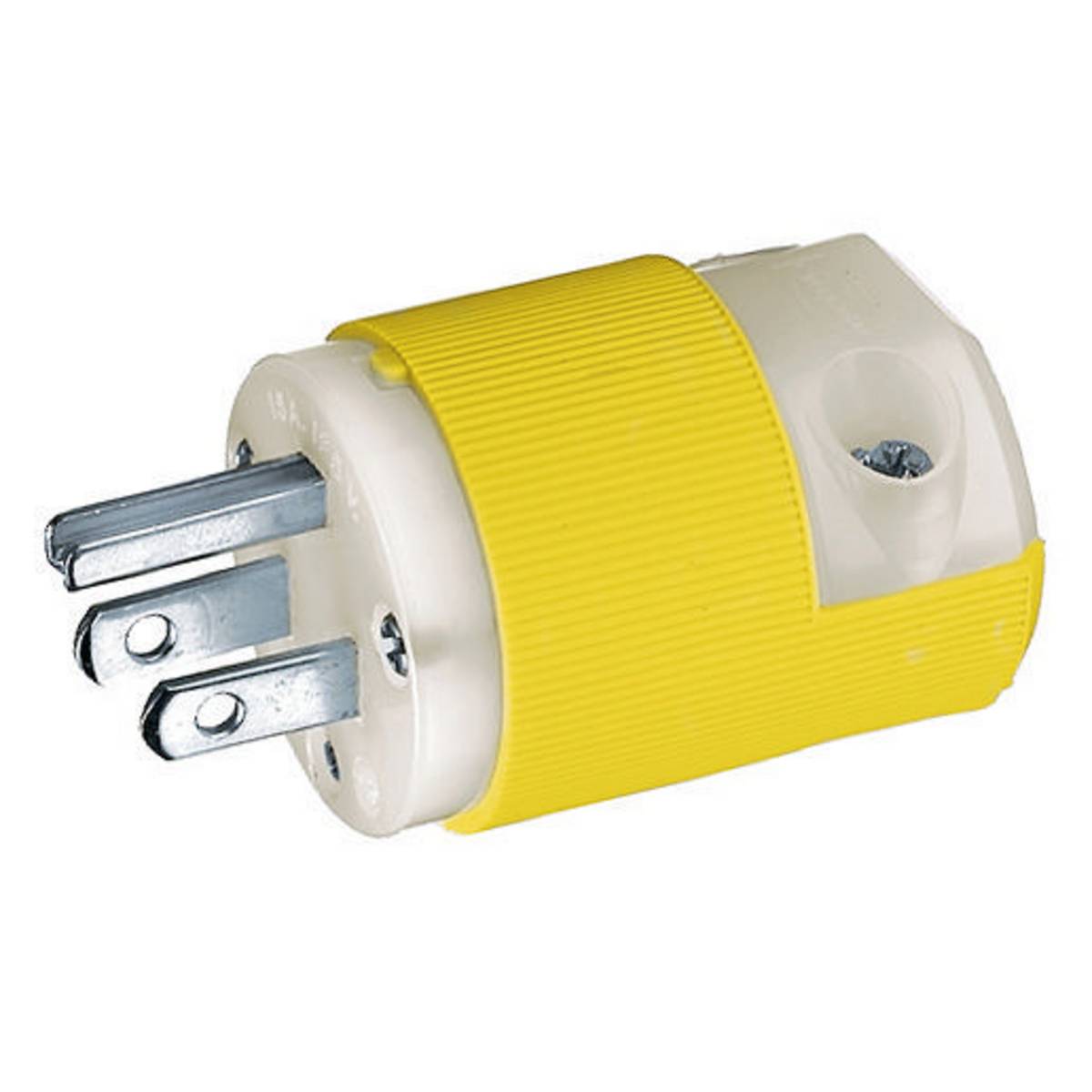

Wiring Device-Kellems Insulgrip® HBL52CM66C 1-Phase Corrosion-Resistant Grounding Portable Standard Cord Mount Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Wiring Device-Kellems Insulgrip® HBL52CM66C 1-Phase Corrosion-Resistant Grounding Portable Standard Cord Mount Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Wiring Device-Kellems Insulgrip® HBL52CM66C 1-Phase Corrosion-Resistant Grounding Portable Standard Cord Mount Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Wiring Device-Kellems Insulgrip® HBL52CM66C 1-Phase Corrosion-Resistant Grounding Portable Standard Cord Mount Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems Insulgrip® HBL52CM66C 1-Phase Corrosion-Resistant Grounding Portable Standard Cord Mount Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Short Description

Experience reliable power connections with the Wiring Device-Kellems Insulgrip® HBL52CM66C! This corrosion-resistant, portable straight blade plug is designed for durability and performance, ensuring safe and efficient operation in various environments.

Wiring Device-Kellems Insulgrip® Straight Blade Plug, 1-Phase Corrosion-Resistant Grounding Portable Standard Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Yellow, 1.52 x 1.52 x 1.96 in

MFG #: HBL52CM66C

EECO #: HUHBL52CM66C

Brand: Wiring Device-Kellems
UPC #: 783585161501
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121402
Material
Polycarbonate
Application
Marine, Dry Location and Indoor Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
1-Phase Corrosion-Resistant Grounding Portable Standard Cord Mount

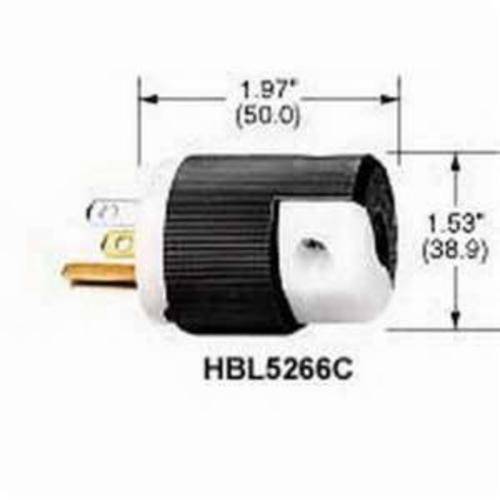

Dimensions
1.52 x 1.52 x 1.96
Horsepower
1/2
Amperage Rating
15
Features
  • Withstands 2000 VAC dielectric voltage
  • Certified for current interrupting at full rated current
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Terminals identified in accordance with UL 498 (brass, white, green)
  • 18 to 10 AWG solid or stranded copper conductor terminal accommodation
  • UL 94-HB or better flammability rating
  • 0.06 in brass contact blades, 0.04 in copper alloy blades
  • #8-32 brass/nickel plated for neutral terminal screw, #8-32 brass multiple drive (green) ground screw
  • Black nylon housing, clear polycarbonate retainer, natural nylon blade holder and cord clamp
