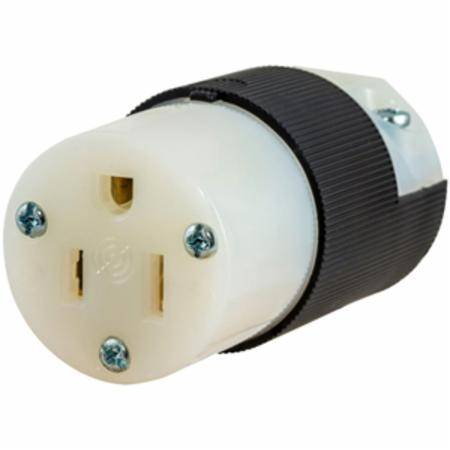

125 VAC 15 A 5-15R, Hubbell Incorporated HBL5269C Insulgrip® Straight Blade Connector, Black/White
125 VAC 15 A 5-15R, Hubbell Incorporated HBL5269C Insulgrip® Straight Blade Connector, Black/White
125 VAC 15 A 5-15R, Hubbell Incorporated HBL5269C Insulgrip® Straight Blade Connector, Black/White
125 VAC 15 A 5-15R, Hubbell Incorporated HBL5269C Insulgrip® Straight Blade Connector, Black/White
Share Share Print Print
Hubbell

125 VAC 15 A 5-15R, Hubbell Incorporated HBL5269C Insulgrip® Straight Blade Connector, Black/White

Short Description

125 VAC, 15 A, 5-15R, 2-Pole, 3-Wire, Black/White, Nylon, Straight Blade Connector

Straight Blade Connector; Configuration 5-15R; Voltage Rating 125 Volt AC; Current Rating 15 Amp; Number of Poles 2; Number of Wires 3; Ground Type Grounding; Color Black/White; Cord Size 0.23 to 0.72 Inch; Material Nylon; Approval UL 498, CSA C22.2; Contact Material 0.04 Inch Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C

MFG #: HBL5269C

EECO #: HUHBL5269C

Brand: Wiring Device-Kellems
UPC #: 783585173252
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121400
Approval
UL 498, CSA C22.2
Material
Nylon
Ground Type
Grounding
Current Rating
15 amp
Voltage Rating
125 Volt AC
Number Of Poles
2
Number of Wires
3
Type
Straight Blade Connector
Cord Size
0.23 to 0.72 Inch
Configuration
5-15R
Features
  • Individual Wiring Terminals Completely Enclosed
  • Powerful, Offsetting Cord Grips Clamp on Individual Conductors
  • Fast Lead Assembly Screws
  • Beveled Housing Prevents Snagging

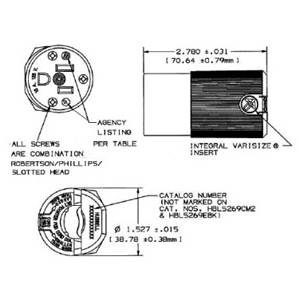

HUBKEL_HBL5269C_CAD
HUBKELE07220_1
HUBKELE15735_A29_A31_A34
HUBKELINST00063
Qty Unit price
Ea
1 $23.20

Slqt
1 $23.20

Stpk
1 $232.00

Unit
1 $23.20
