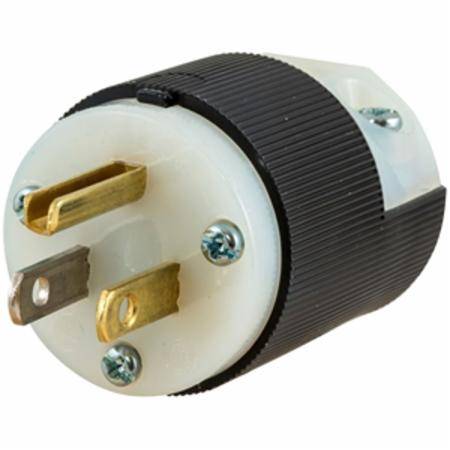

125 VAC 15 A 5-15P, Hubbell Incorporated HBL5266C Insulgrip® Straight Blade Plug, Black/White
125 VAC 15 A 5-15P, Hubbell Incorporated HBL5266C Insulgrip® Straight Blade Plug, Black/White
125 VAC 15 A 5-15P, Hubbell Incorporated HBL5266C Insulgrip® Straight Blade Plug, Black/White
125 VAC 15 A 5-15P, Hubbell Incorporated HBL5266C Insulgrip® Straight Blade Plug, Black/White
Share Share Print Print
Hubbell

125 VAC 15 A 5-15P, Hubbell Incorporated HBL5266C Insulgrip® Straight Blade Plug, Black/White

Short Description

125 VAC, 15 A, 5-15P, 2-Pole, 3-Wire, Black/White, Nylon, Grounding, Straight Blade Plug

Straight Blade Plug; Constructional Feature Impact/Chemical Resistant; Configuration 5-15P; Voltage Rating 125 Volt AC; Current Rating 15 Amp; Number of Poles 2; Number of Wires 3; Ground Type Grounding; Cord Size 0.23 to 0.72 Inch; Material Nylon; Color Black/White; Approval UL 498, CSA C22.2; Blade Holder Material Nylon; Terminal Retainer Material Clear Polycarbonate; Terminal Clamp Material Nickel Plated Steel; Terminal Screw #8-32 TPI Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification W-C596G, NEMA WD-6

MFG #: HBL5266C

EECO #: HUHBL5266C

Brand: Wiring Device-Kellems
UPC #: 783585173009
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121402
Approval
UL 498, CSA C22.2
Material
Nylon
Ground Type
Grounding
Current Rating
15 amp
Voltage Rating
125 Volt AC
Number Of Poles
2
Number of Wires
3
Type
Straight Blade Plug
Cord Size
0.23 to 0.72 Inch
Configuration
5-15P
Constructional Feature
Impact/Chemical Resistant
Features
  • Ribbed Nylon Housing is Impact and Chemical Resistant
  • Adjustable Cord Clamp
  • Fast Lead Assembly Screws
  • Beveled Housing Prevents Snagging
  • Each Insulgrip Device is Manufactured with Roomy, Separate Wiring Chambers to Insulate Conductors and an Individually Molded Face to Keep Out Dust and Debris that can Cause Contamination Over Time
  • The Insulgrip's Cord Gripping Design Clamps Conductors, Not Just the Cable Jacket, Making it the Industry's Most Powerful Cord Grip with Superior Strain Relief
  • Powerful Cord Grips Clamp on Individual Conductors and Outer Cord Jacket to Prevent Strain on Terminations
  • Individual Wiring Terminals are Completely Enclosed in their Own Separate Chambers
  • Multiple Drive Screw Heads Provide Screwdriver Versatility
  • Pocketed Recess for Cord Grip Screws Deters Slippage of the Screwdriver
HUBKELE07797_1
HUBKELE15735_A30_A33
HUBKELINST00411
Qty Unit price
Ea
1 $13.65

Slqt
1 $13.65

Stpk
1 $136.50

Unit
1 $13.65
