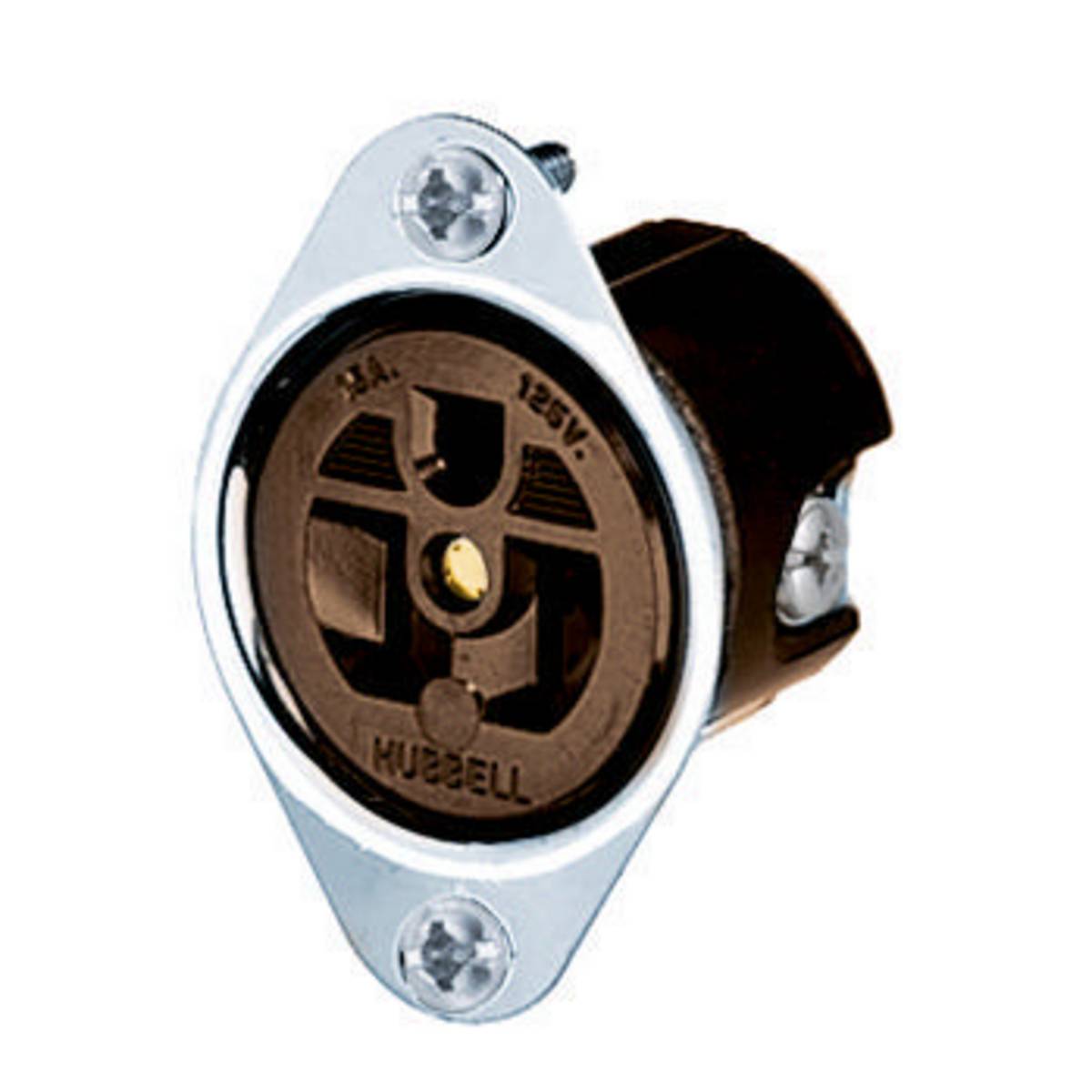

Wiring Device-Kellems HBL5256 1-Phase Grounding Heavy Duty Screw Mount Straight Blade Flanged Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL5256 1-Phase Grounding Heavy Duty Screw Mount Straight Blade Flanged Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown

Short Description

Enhance your electrical setup with the Wiring Device-Kellems HBL5256 Heavy Duty Flanged Receptacle. Designed for durability and reliability, this 125 VAC, 15 A receptacle is perfect for demanding applications. Its robust construction and stainless steel finish ensure long-lasting performance in any environment.Enhanced by AI

Wiring Device-Kellems Straight Blade Flanged Receptacle, 1-Phase Grounding Heavy Duty Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Specification Grade, -40 to 75 deg C, Screw Terminal, Stainless Steel, Brown, 1.75 in W x 1.16 in D x 2.5 in H

MFG #: HBL5256

EECO #: HUHBL5256

Brand: Wiring Device-Kellems
UPC #: 783585013046
Attributes
Features
Documents
Product Information
Attributes
Color
Brown
UNSPSC
39121406
Material
Stainless Steel
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Temperature Rating
-40 to 75
Type
1-Phase Grounding Heavy Duty Screw Mount
Grade
Specification
Dimensions
1.75 in W x 1.16 in D x 2.5 in H
Horsepower
1/2
Amperage Rating
15
Features
  • Finder groove face
  • Standard metallic flange
  • #8-32 brass multiple drive terminal screw and ground screw
  • Phenolic top and base
  • 0.031 in phosphor bronze power contact
  • Brass, nickel-plated mounting screw
  • Withstand 2000 VAC minimum dielectric voltage
  • Certified for current interrupting at full rated current
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
  • Terminals identified in accordance with UL498
  • 14 to 10 AWG copper stranded or solid conductor only terminal accommodation
  • Ratings are a permanent part of the device product identification
  • UL 94V-2 flammability
  • Stainless steel flange
