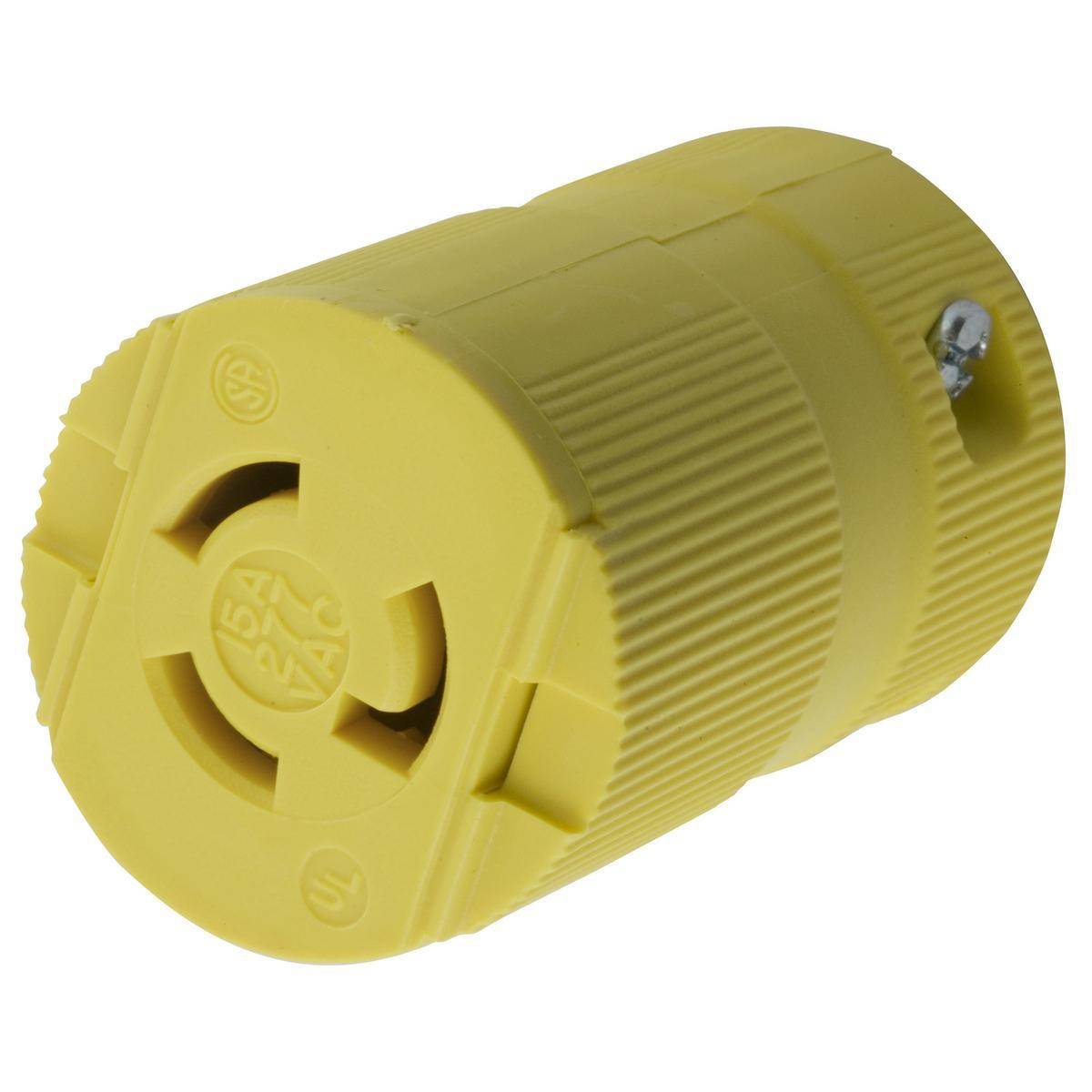

Wiring Device-Kellems Twist-Lock® Valise® HBL4779VY Female Grounding Standard Cord Mount Locking Connector, 277 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems Twist-Lock® Valise® HBL4779VY Female Grounding Standard Cord Mount Locking Connector, 277 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Short Description

Ensure reliable connections with the Wiring Device-Kellems Twist-Lock® Valise® HBL4779VY Female Grounding Connector. Designed for industrial use, this durable yellow locking connector supports 277 VAC and 15 A, making it perfect for your toughest applications.Enhanced by AI

Wiring Device-Kellems Twist-Lock® Valise® Locking Connector, Female Grounding Standard Cord Mount, 277 VAC, 15 A, 2 Pole, 3 Wires, L7-15R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Yellow, 1.5 x 1.5 x 2.78 in

MFG #: HBL4779VY

EECO #: HUHBL4779VY

Brand: Wiring Device-Kellems
UPC #: 783585236964
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121421
Material
Nylon
Application
Heavy Duty Industrial Applications
Terminal Type
Pressure Screw
Voltage Rating
277
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
Female Grounding Standard Cord Mount
Grade
Industrial
Dimensions
1.5 x 1.5 x 2.78
Amperage Rating
15
Features
  • Natural (white) nylon cord clamp
  • Cold rolled steel nickel plated terminal clamp
  • #8-32 brass (copper flash, nickel plate and molykote) terminal screw
  • #8-32 brass (green finish) ground screw
  • Zinc plated steel multi-drive cord clamp screw
  • Brass contact spring and spring binding plate
  • Molded in/stamped on ratings
  • Permanently ink marked on product catalog number
  • Withstands 2000 VAC minimum dielectric voltage
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
  • Round portable service cords of diameters commensurate with the device rating
  • 15 A 14 AWG terminal accommodation
  • Terminals identified in accordance with UL 498 (x, y, z, white, green)
  • Two captive multiple drive assembly screws
  • Totally insulated impact and crush resistant nylon body
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Cord mounted
  • Insulated body
  • Indoor dry unless protected by additional means
  • 14 to 12 AWG conductor size
