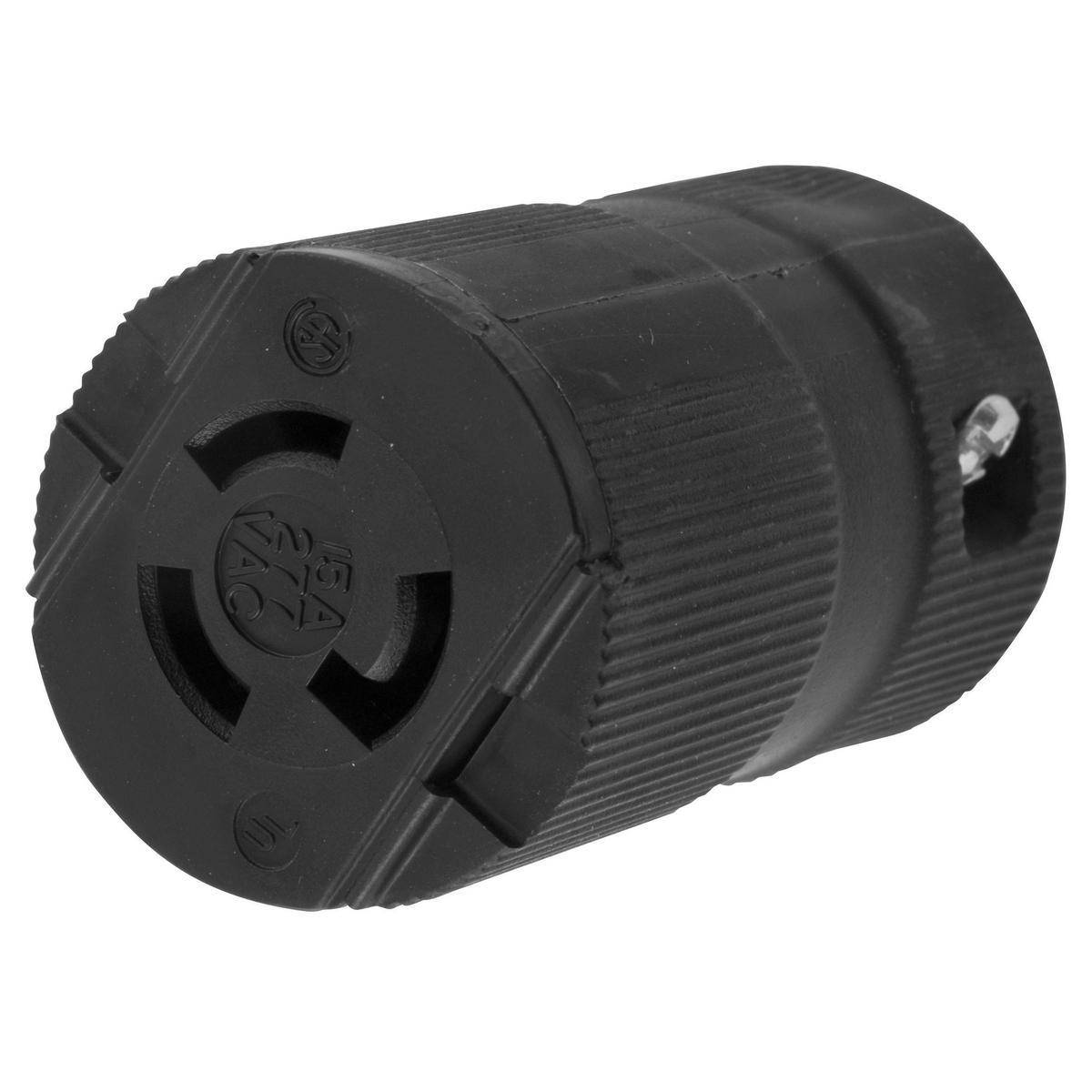

Wiring Device-Kellems Twist-Lock® Valise® HBL4779VBK Grounding Locking Connector, 277 VAC, 15 A, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems Twist-Lock® Valise® HBL4779VBK Grounding Locking Connector, 277 VAC, 15 A, 2 Poles, 3 Wires, Black

Short Description

Ensure reliable power connections with the Wiring Device-Kellems Twist-Lock® Valise® HBL4779VBK Grounding Locking Connector. Designed for industrial use, this durable and versatile connector is perfect for 277 VAC applications, offering safety and performance in a sleek black finish.Enhanced by AI

Wiring Device-Kellems Twist-Lock® Valise® Locking Connector, Grounding, 277 VAC, 15 A, 2 Pole, 3 Wires, NEMA L7-15R, Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 1-1/2 in Dia x 2-19/32 in L Dimensions

MFG #: HBL4779VBK

EECO #: HUHBL4779VBK

Brand: Wiring Device-Kellems
UPC #: 783585043326
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121421
Material
Nylon
Terminal Type
Screw
Voltage Rating
277
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
Grounding
Grade
Industrial
Dimensions
1-1/2 in Dia x 2-19/32 in L
Amperage Rating
15
Features
  • Natural (white) nylon cord clamp
  • Cold rolled steel nickel plated terminal clamp
  • #8-32 brass (white finish on neutral screw when used) terminal screw
  • #8-32 brass (green finish) ground screw
  • Zinc plated steel cord clamp screw
  • Brass contact spring and ground contact
  • Molded in/stamped on ratings
  • Permanently ink marked on product catalog number
  • Withstand 2000 VAC minimum dielectric voltage
  • Certified for current interrupting at full rated current
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Round portable service cords of diameters commensurate with the device rating
  • 15 A 14 AWG terminal accommodation
  • Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
  • HB or better per UL 94 or CSA 22.2 NO 0.6 flammability
  • Two captive multiple drive assembly screws
  • Totally insulated impact and crush-resistant nylon body
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
