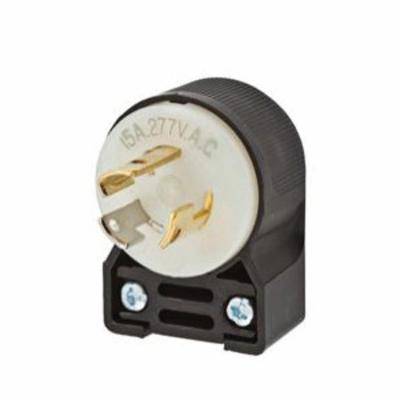

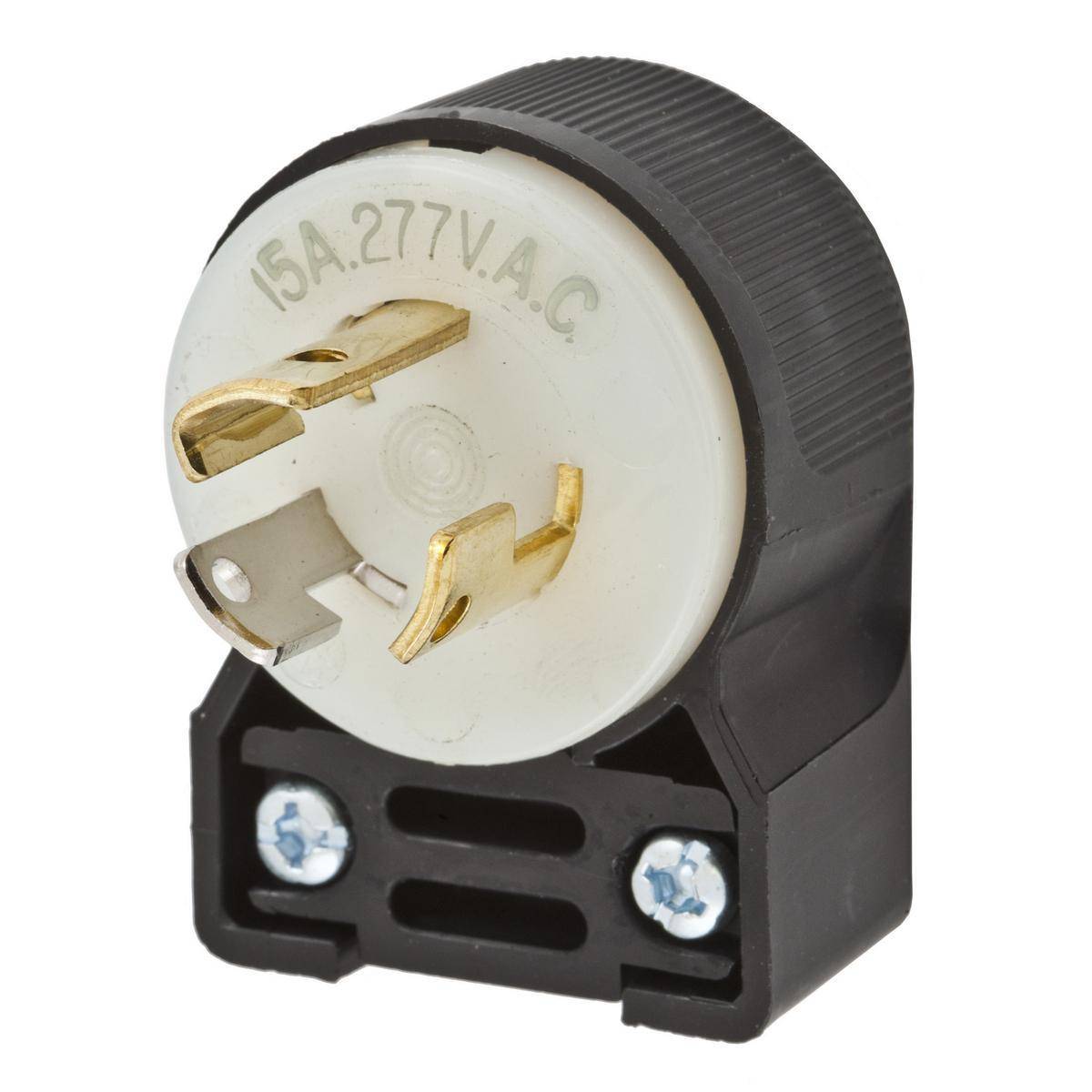

Hubbell® Insulgrip® HBL4770CA Grounding Locking Plug, 277 VAC, 15 A, 2 Poles, 3 Wires

Short Description

Ensure reliable and safe connections with the Hubbell® Insulgrip® HBL4770CA Grounding Locking Plug. Designed for 277 VAC applications, this durable plug features a secure locking mechanism and is built to withstand extreme temperatures. Perfect for your electrical needs!Enhanced by AI

Hubbell® Insulgrip® Locking Plug, Grounding, 277 VAC, 15 A, 2 Poles, 3 Wires, IP20 Enclosure, 0.325 to 0.655 in Cord Dia, -40 to 75 deg C, Screw Terminal, Nylon, 2.11 in H x 1.53 in W x 1.22 in D

MFG #: HBL4770CA

EECO #: HUHBL4770CA

Brand: Hubbell
UPC #: 783585171708
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121403
Material
Nylon
Application
Indoor Dry Environment
Terminal Type
Screw
Voltage Rating
277
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
Grounding
Grade
Industrial
Dimensions
2.11 in H x 1.53 in W x 1.22 in D
Horsepower
2
Amperage Rating
15
Features
  • Individually molded face for each blade configuration
  • Roomy wiring chamber provides ample space for wiring
  • Ribbed nylon housing provides a secure grip and impact and chemical-resistance
  • Clear polycarbonate terminal retainer, brass blade, #8-32 brass terminal screw cold rolled steel nickel plated terminal clamp, steel nickel plated assembly screw
  • 2000 VAC minimum withstand dielectric voltage
  • 16 to 8 AWG solid/stranded copper wire terminal accommodation
