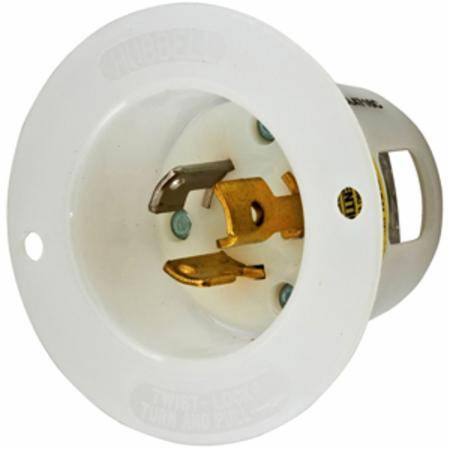

Print125 V 15 A L5-15P, Hubbell Incorporated HBL4716C Twist-Lock®, Insulgrip® Locking Device Flanged Inlet
Short Description
125 V, 15 A, 2-Pole, 3-Wire, L5-15P, Grounding, White, Nylon, Polarized, Locking Device Flanged Inlet

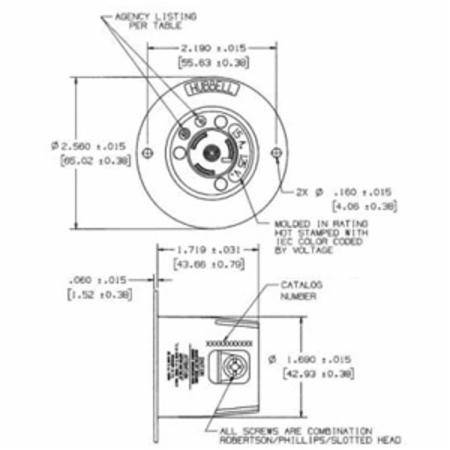

Locking Device Flanged Inlet; Type Polarized; Constructional Feature Impact/Moisture Resistant; Configuration L5-15P; Voltage Rating 125 Volt; Current Rating 15 Amp; Number of Poles 2; Number of Wires 3; Ground Type Grounding; Material Nylon; Color White; Approval UL 498, CSA C22.2; Overall Dimension 2.56 Inch Diameter x 1.72 Inch Height; Wire Size 16 to 8 AWG; Enclosure Rating IP20; Terminal Type Screw; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
MFG #:
HBL4716C
EECO #: HUHBL4716C
Brand:
Wiring Device-Kellems
UPC #:
783585171050
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $16.95 |
|
Slqt |
|
| 1 | $16.95 |
|
Stpk |
|
| 1 | $16.95 |
|
Unit |
|
| 1 | $16.95 |
everwhere
125 V 15 A L5-15P, Hubbell Incorporated HBL4716C Twist-Lock®, Insulgrip® Locking Device Flanged Inlet
