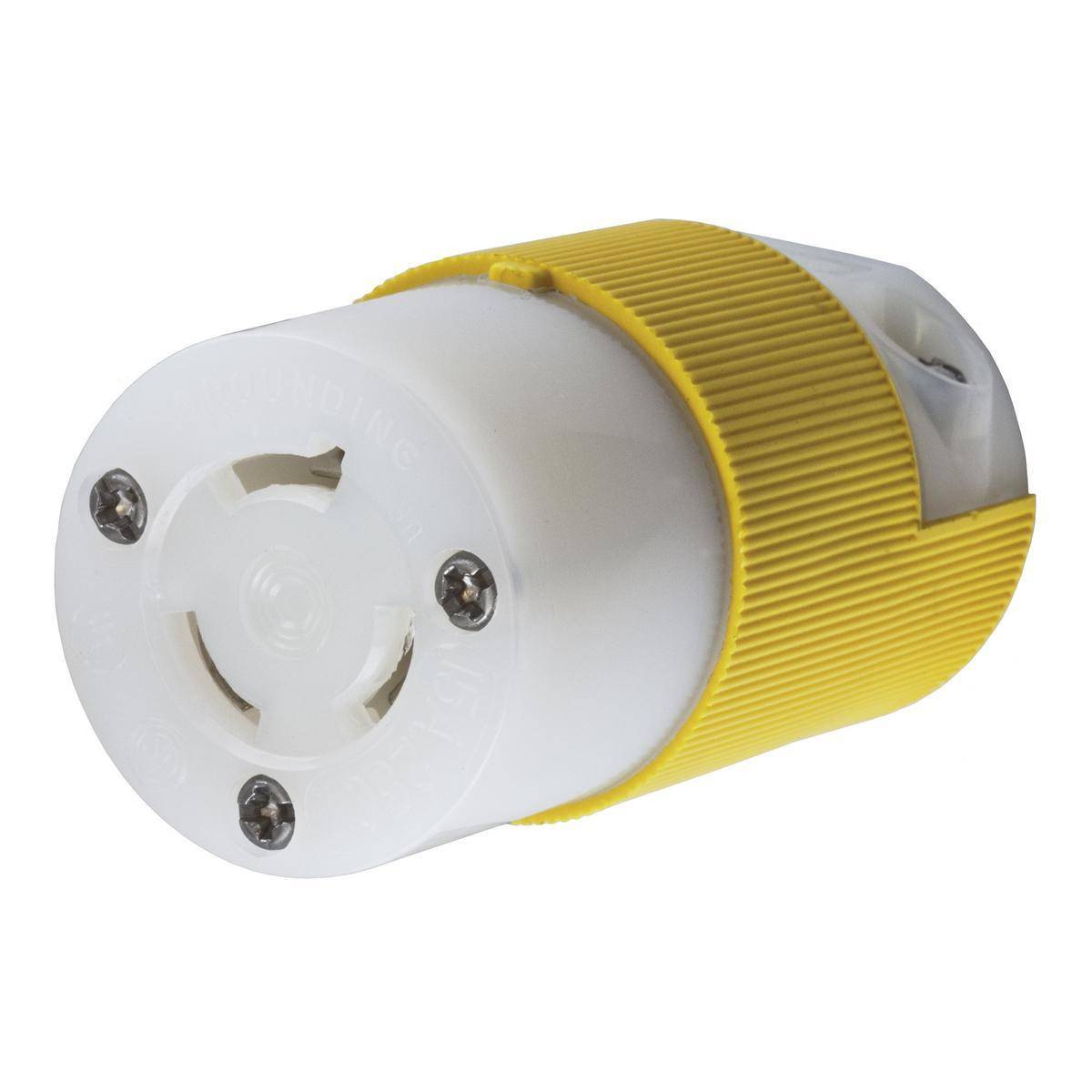

Wiring Device-Kellems HBL45CM79C Female Grounding Standard Cord Mount Locking Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL45CM79C Female Grounding Standard Cord Mount Locking Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Short Description

Ensure a secure and reliable connection with the Wiring Device-Kellems HBL45CM79C Female Grounding Locking Connector. Designed for durability and safety, this marine-grade connector is perfect for a variety of applications.Enhanced by AI

Wiring Device-Kellems, HBL45CM79C, Locking Connector, Female Grounding Standard Cord Mount, 125 VAC, 15 A, 2 Pole, 3 Wires, L6-15R NEMA Rating, Marine Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Yellow, 1.53 x 1.53 x 2.78 in Dimensions

MFG #: HBL45CM79C

EECO #: HUHBL45CM79C

Brand: Wiring Device-Kellems
UPC #: 783585160108
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121421
Material
Nylon
Application
Heavy Duty Industrial Applications
Terminal Type
Pressure Screw
Voltage Rating
125
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
Female Grounding Standard Cord Mount
Grade
Marine
Dimensions
1.53 x 1.53 x 2.78
Amperage Rating
15
Features
  • Clear polycarbonate terminal retainer
  • Molded-in or stamped-on ratings
  • Permanently ink marked on product catalog number
  • Withstands 2000 VAC minimum dielectric voltage
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
  • 15 A 14 AWG terminal accommodation
  • Terminals identified in accordance with UL 498 (x, y, z, white, green)
  • Superior cord grip design protects terminations from excess strain
  • Integral VARI-SIZE® insert accommodates a wide range of cord diameters
  • Chem/marine style
  • Standard size product
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Corrosion resistant
  • 14 to 12 AWG conductor
  • Indoor dry unless protected by additional mean environmental conditions
  • Cord mounted
  • Cold rolled steel nickel plated terminal clamp
  • #8-32 brass (white finish on neutral screw when used) terminal screw
  • Zinc plated steel, multi-drive cord clamp screw and body holding screw
  • Natural white nylon body contact carrier
