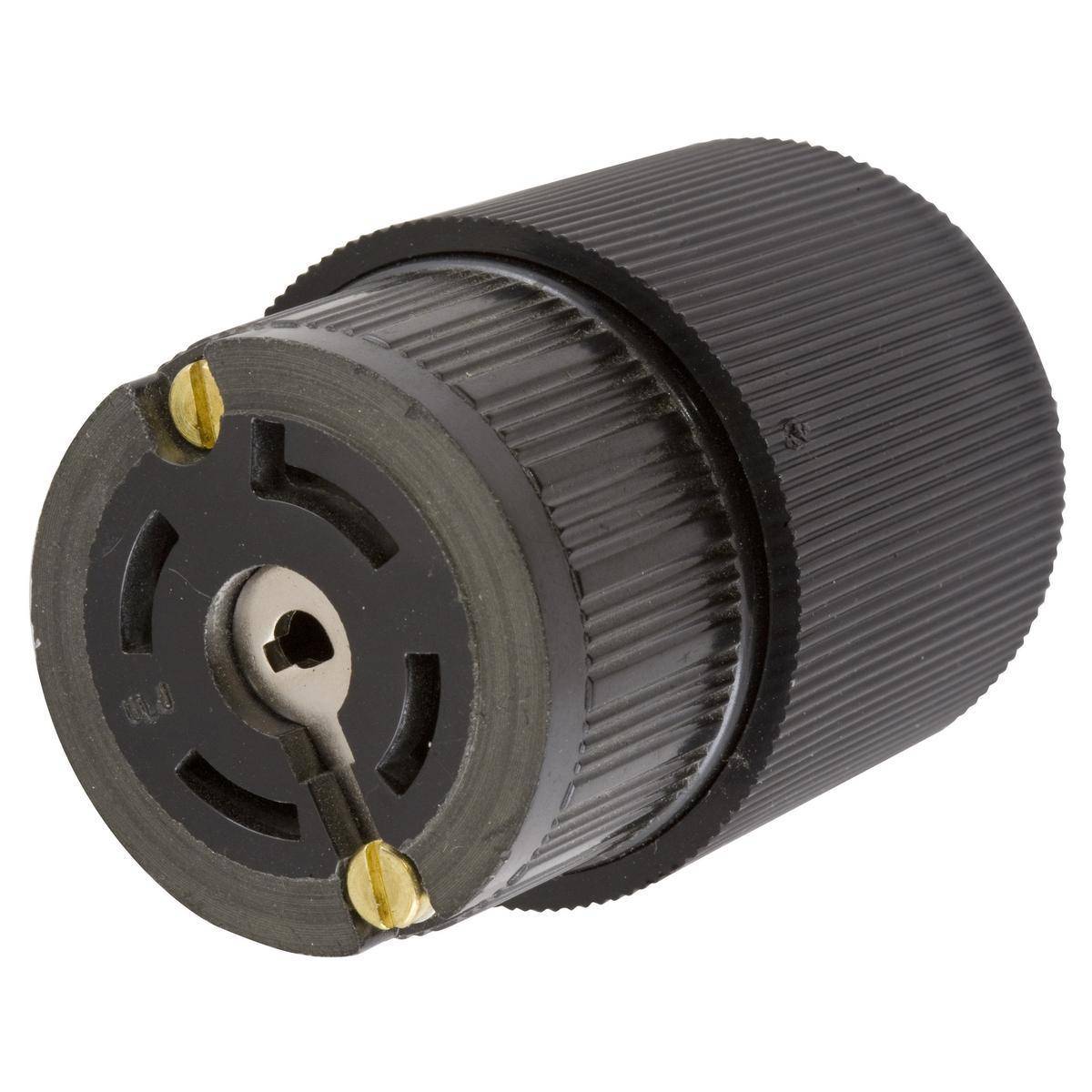

Wiring Device-Kellems Twist-Lock® Variload® HBL45935 3-Phase Female Grounding Heavy Duty Insulated Standard Cord Mount Locking Connector, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems Twist-Lock® Variload® HBL45935 3-Phase Female Grounding Heavy Duty Insulated Standard Cord Mount Locking Connector, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Black

Short Description

Ensure reliable power connections with the Wiring Device-Kellems Twist-Lock® Variload® HBL45935. This heavy-duty, insulated locking connector is designed for 3-phase applications, offering superior durability and safety in demanding environments. Perfect for industrial use, it accommodates cords from 5/8 to 1 inch in diameter and operates efficiently at 120/208 VAC and 20 A.Enhanced by AI

Wiring Device-Kellems Twist-Lock® Variload® Locking Connector, 3-Phase Female Grounding Heavy Duty Insulated Standard Cord Mount, 120/208 VAC, 20 A, 400 Hz Frequency, 4 Pole, 5 Wires, Industrial Grade, 5/8 to 1 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black, 2.13 x 2.13 x 3.79 in

MFG #: HBL45935

EECO #: HUHBL45935

Brand: Wiring Device-Kellems
UPC #: 783585238159
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121421
Material
Composite
Application
Heavy Duty Industrial Applications
Terminal Type
Pressure Screw
Voltage Rating
120/208
Number of Wires
5
Frequency Rating
400
Temperature Rating
-40 to 75
Type
3-Phase Female Grounding Heavy Duty Insulated Standard Cord Mount
Grade
Industrial
Dimensions
2.13 x 2.13 x 3.79
Amperage Rating
20
Features
  • Heat-resistant thermoset construction
  • Non-interchangeable center pin configuration to be designated to different circuits
  • Cord mounted
  • Insulated body
  • Indoor dry unless protected by additional means
  • 12 to 8 AWG conductor size
  • Unique center pin
  • Non-NEMA rating
  • 3-phase wye 120/208 VAC
  • Standard size product
