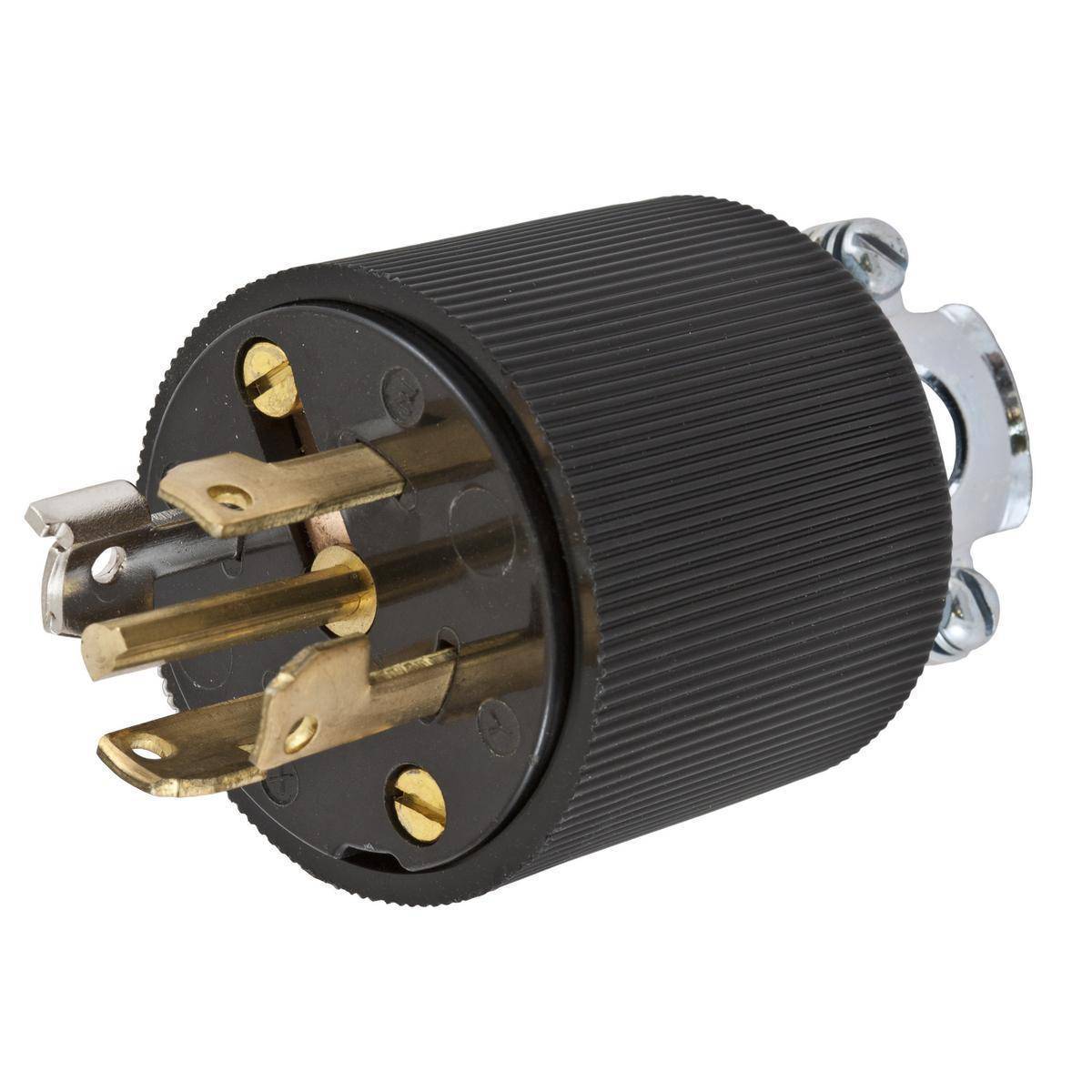

Wiring Device-Kellems HBL45915 3-Phase Grounding Heavy Duty Male Cord Mount Locking Plug, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL45915 3-Phase Grounding Heavy Duty Male Cord Mount Locking Plug, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Black

Short Description

Ensure reliable power connections with the Wiring Device-Kellems HBL45915 Heavy Duty Male Cord Mount Locking Plug, designed for 3-phase applications. Built to withstand industrial environments, this plug features a robust design with 4 poles and 5 wires, making it ideal for your heavy-duty electrical needs.Enhanced by AI

Wiring Device-Kellems, HBL45915, Locking Plug, 3-Phase Grounding Heavy Duty Male Cord Mount, 120/208 VAC, 20 A, 400 Hz Frequency, 4 Pole, 5 Wires, Industrial Grade, IP20 Enclosure, 5/8 to 1 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black, 2.13 x 2.13 x 3.79 in Dimensions

MFG #: HBL45915

EECO #: HUHBL45915

Brand: Wiring Device-Kellems
UPC #: 783585238104
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121403
Material
Composite
Application
Dry Locations and Indoor Applications
Terminal Type
Screw
Voltage Rating
120/208
Number of Wires
5
Frequency Rating
400
Enclosure
IP20
Temperature Rating
-40 to 75
Type
3-Phase Grounding Heavy Duty Male Cord Mount
Grade
Industrial
Dimensions
2.13 x 2.13 x 3.79
Amperage Rating
20
Features
  • Heat-resistant thermoset construction
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 10 AWG terminal accommodation
  • Non-interchangeable center pin configuration to be designated to different circuits
  • Unique center pin
  • Cord mounted
  • Non-NEMA rating
  • Terminal clamp cold rolled steel nickel plated
  • Brass blade
  • Brass terminal screw
  • Steel (green finish) ground screw
  • Cord clamp screw/body holding screw steel zinc plated
  • 2000 VAC minimum dielectric withstand voltage
