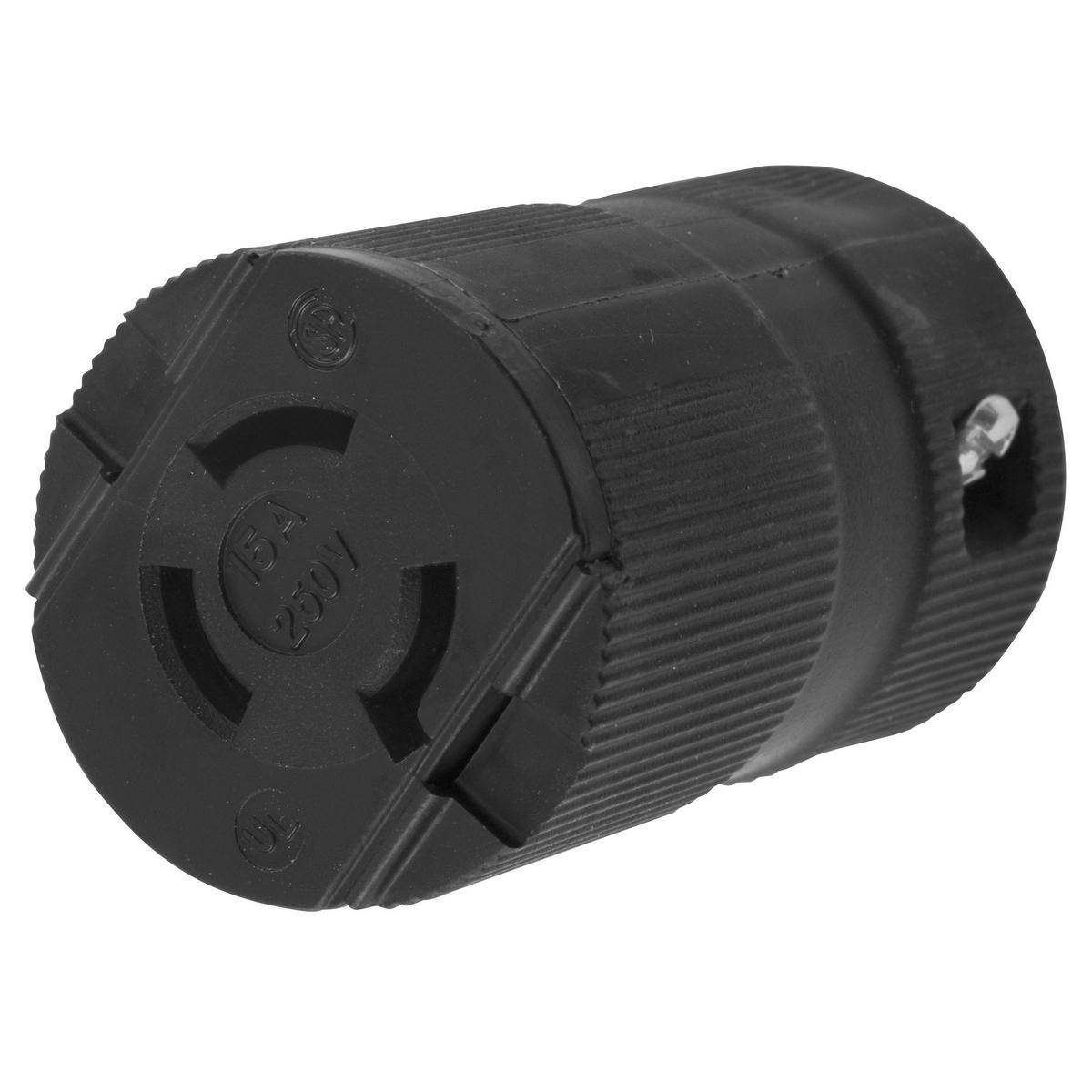

Wiring Device-Kellems HBL4579VBK Heavy Duty Insulated Isolated Ground Standard Cord Mount Locking Female Connector, 250 VAC, 15 A, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL4579VBK Heavy Duty Insulated Isolated Ground Standard Cord Mount Locking Female Connector, 250 VAC, 15 A, 2 Poles, 3 Wires, Black

Short Description

Ensure a secure and reliable connection with the Wiring Device-Kellems HBL4579VBK Heavy Duty Insulated Isolated Ground Locking Female Connector. Designed for industrial applications, this durable connector supports 250 VAC and 15 A, providing peace of mind in demanding environments.Enhanced by AI

Wiring Device-Kellems, HBL4579VBK, Locking Female Connector, Heavy Duty Insulated Isolated Ground Standard Cord Mount, 250 VAC, 15 A, 1.5 hp, 2 Pole, 3 Wires, L6-15R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black, 1.5 x 1.5 x 2.59 in Dimensions

MFG #: HBL4579VBK

EECO #: HUHBL4579VBK

Brand: Wiring Device-Kellems
UPC #: 783585043227
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121421
Material
Nylon
Application
Indoor Dry Environment
Terminal Type
Pressure Screw
Voltage Rating
250
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
Heavy Duty Insulated Isolated Ground Standard Cord Mount
Grade
Industrial
Dimensions
1.5 x 1.5 x 2.59
Horsepower
1.5
Amperage Rating
15
Features
  • Two captive multiple drive assembly screws
  • Totally insulated impact and crush resistant nylon body
  • Powerful cord grips prevents conductor slippage and strain on wiring terminals
  • Cord mounted
  • Indoor dry unless protected by additional mean environmental conditions
  • 14 to 12 AWG conductor
