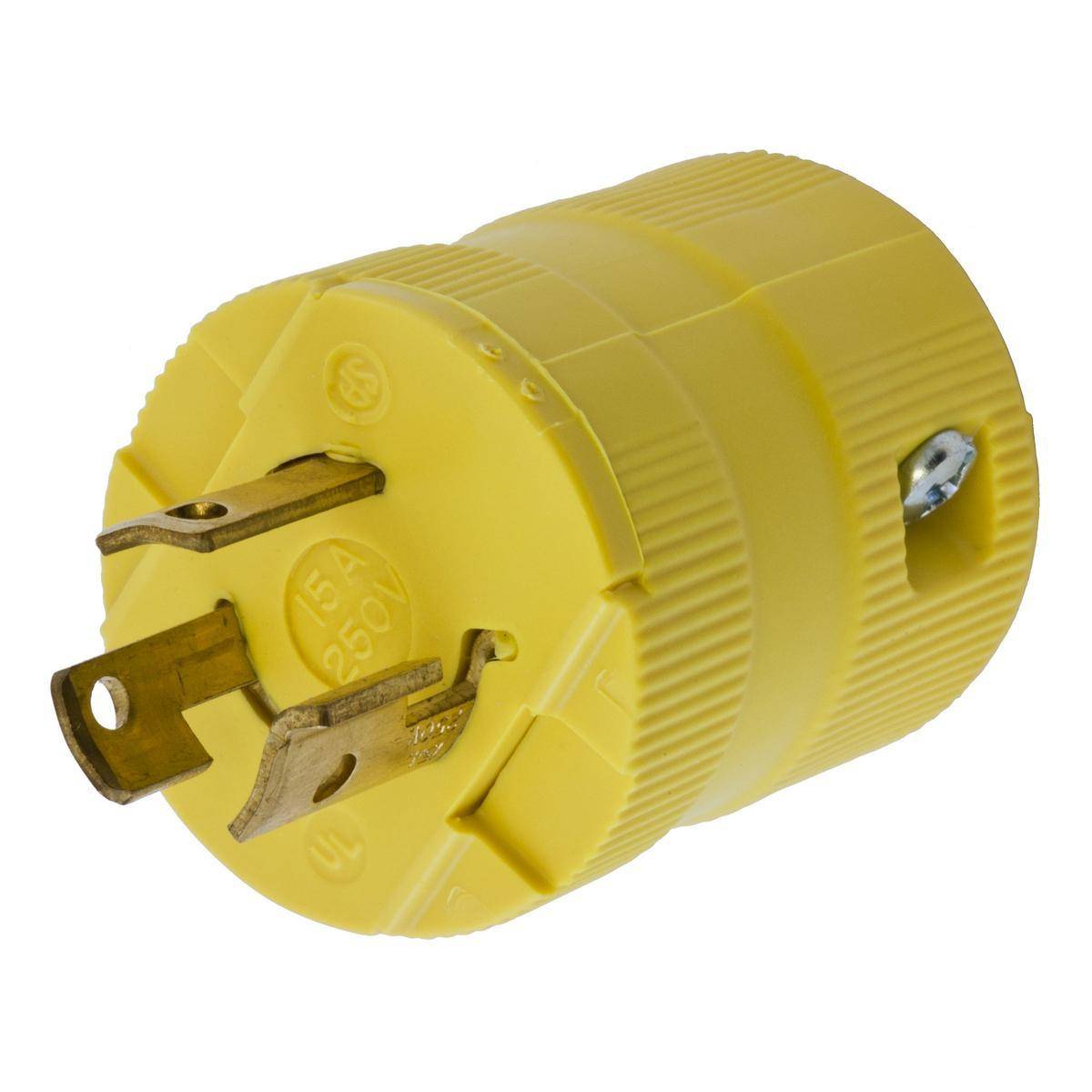

Wiring Device-Kellems HBL4573VY 1-Phase Grounding Male Standard Cord Mount Locking Plug, 250 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL4573VY 1-Phase Grounding Male Standard Cord Mount Locking Plug, 250 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Short Description

Ensure secure and reliable connections with the Wiring Device-Kellems HBL4573VY Locking Plug. Designed for industrial use, this 250 VAC, 15 A male plug features a durable nylon construction and is perfect for a variety of applications. Its bright yellow color enhances visibility, while the robust design withstands extreme temperatures from -40 to 75 degrees Celsius.Enhanced by AI

Wiring Device-Kellems, HBL4573VY, Locking Plug, 1-Phase Grounding Male Standard Cord Mount, 250 VAC, 15 A, 1.5 hp, 2 Pole, 3 Wires, L6-15P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 1.5 x 1.5 x 1.87 in Dimensions

MFG #: HBL4573VY

EECO #: HUHBL4573VY

Brand: Wiring Device-Kellems
UPC #: 783585236650
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121403
Material
Nylon
Application
Dry Locations, Power Connection and Indoor Applications
Terminal Type
Screw
Voltage Rating
250
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
1-Phase Grounding Male Standard Cord Mount
Grade
Industrial
Dimensions
1.5 x 1.5 x 1.87
Horsepower
1.5
Amperage Rating
15
Features
  • Two captive stainless steel assembly screws
  • Molded-in or stamped-on ratings
  • 2000 VAC minimum dielectric withstand voltage
  • 12 AWG terminal accommodation
  • Totally insulated impact and crush resistant nylon body
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Natural (white) nylon cord clamp, nylon blade holder
  • Cold rolled steel nickel plated terminal clamp
  • Brass blade
  • #8-32 steel (copper flash, nickel plate and molykote) terminal screw
  • #8-32 steel (green finish) ground screw
  • Steel zinc plated cord clamp/body holding screw
