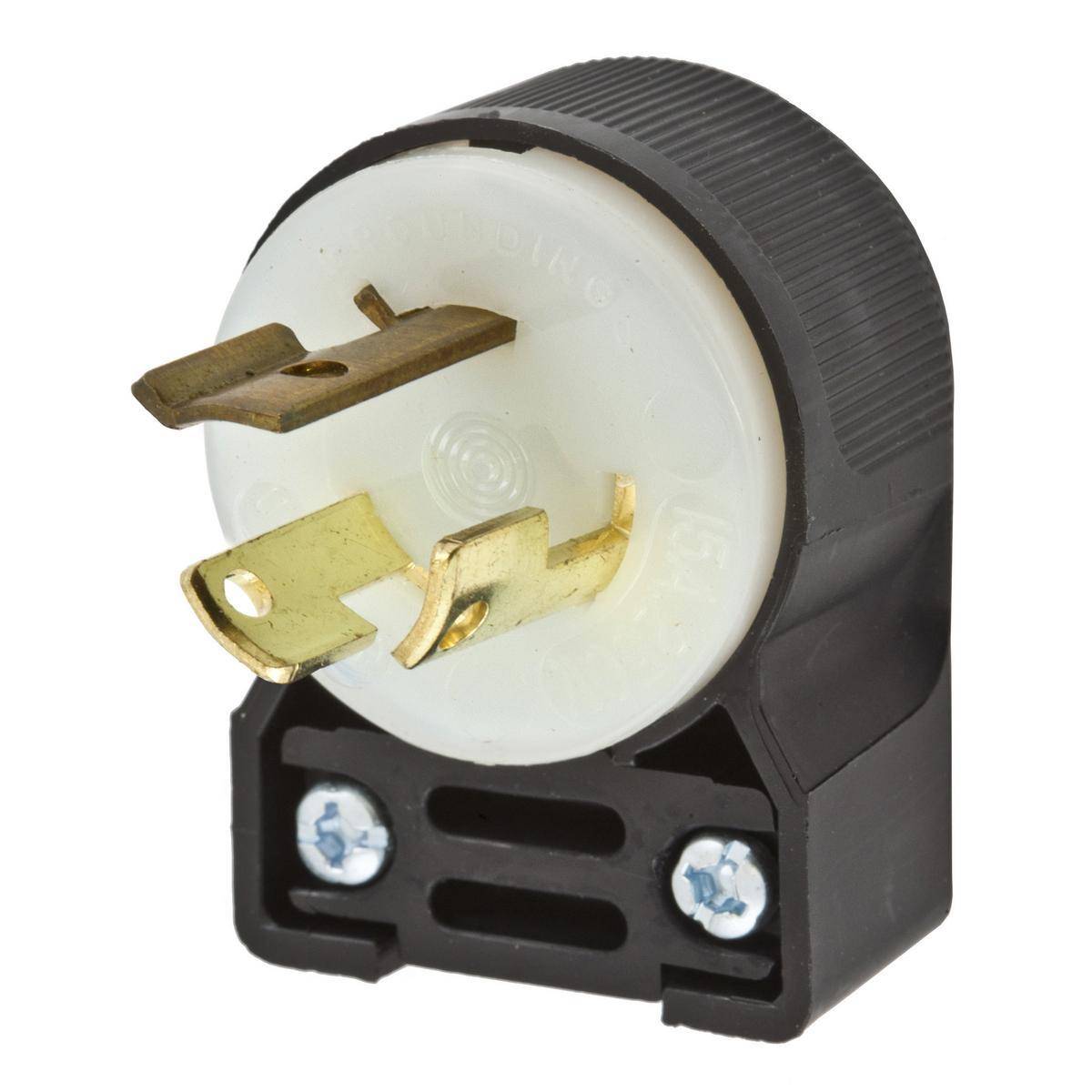

Wiring Device-Kellems HBL4570CA 1-Phase Angled Grounding Male Standard Cord Mount Locking Plug, 250 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL4570CA 1-Phase Angled Grounding Male Standard Cord Mount Locking Plug, 250 VAC, 15 A, 2 Poles, 3 Wires, Black/White

Short Description

Ensure reliable electrical connections with the Wiring Device-Kellems HBL4570CA Locking Plug. Designed for industrial use, this 1-Phase Angled Grounding Male Standard Cord Mount Plug offers durability and safety with its IP20 enclosure and robust construction.Enhanced by AI

Wiring Device-Kellems, HBL4570CA, Locking Plug, 1-Phase Angled Grounding Male Standard Cord Mount, 250 VAC, 15 A, 1.5 hp, 2 Pole, 3 Wires, L6-15P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.325 to 0.655 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.08 x 1.52 x 1.21 in Dimensions

MFG #: HBL4570CA

EECO #: HUHBL4570CA

Brand: Wiring Device-Kellems
UPC #: 783585170053
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121403
Material
Nylon
Application
Dry Locations, Power Connection and Indoor Applications
Terminal Type
Screw
Voltage Rating
250
Number of Wires
3
Enclosure
IP20
Temperature Rating
-40 to 75
Type
1-Phase Angled Grounding Male Standard Cord Mount
Grade
Industrial
Dimensions
2.08 x 1.52 x 1.21
Horsepower
1.5
Amperage Rating
15
Features
  • Stainless steel, multi-drive cord clamp screw body holding screw
  • Molded-in or stamped-on ratings
  • 2000 VAC minimum dielectric withstand voltage
  • 12 AWG terminal accommodation
  • Individually molded face for each blade configuration keeps debris out of plug interior
  • Roomy wiring chamber provides ample space for wiring
  • Ribbed nylon housing provides a secure grip that's impact and chemical-resistant
  • Clear polycarbonate terminal retainer
  • Brass blade
  • 0.08 in brass nickel plated terminal clamp
  • #10-32 bronze (white finish on neutral screw when used) multi-drive terminal screw
