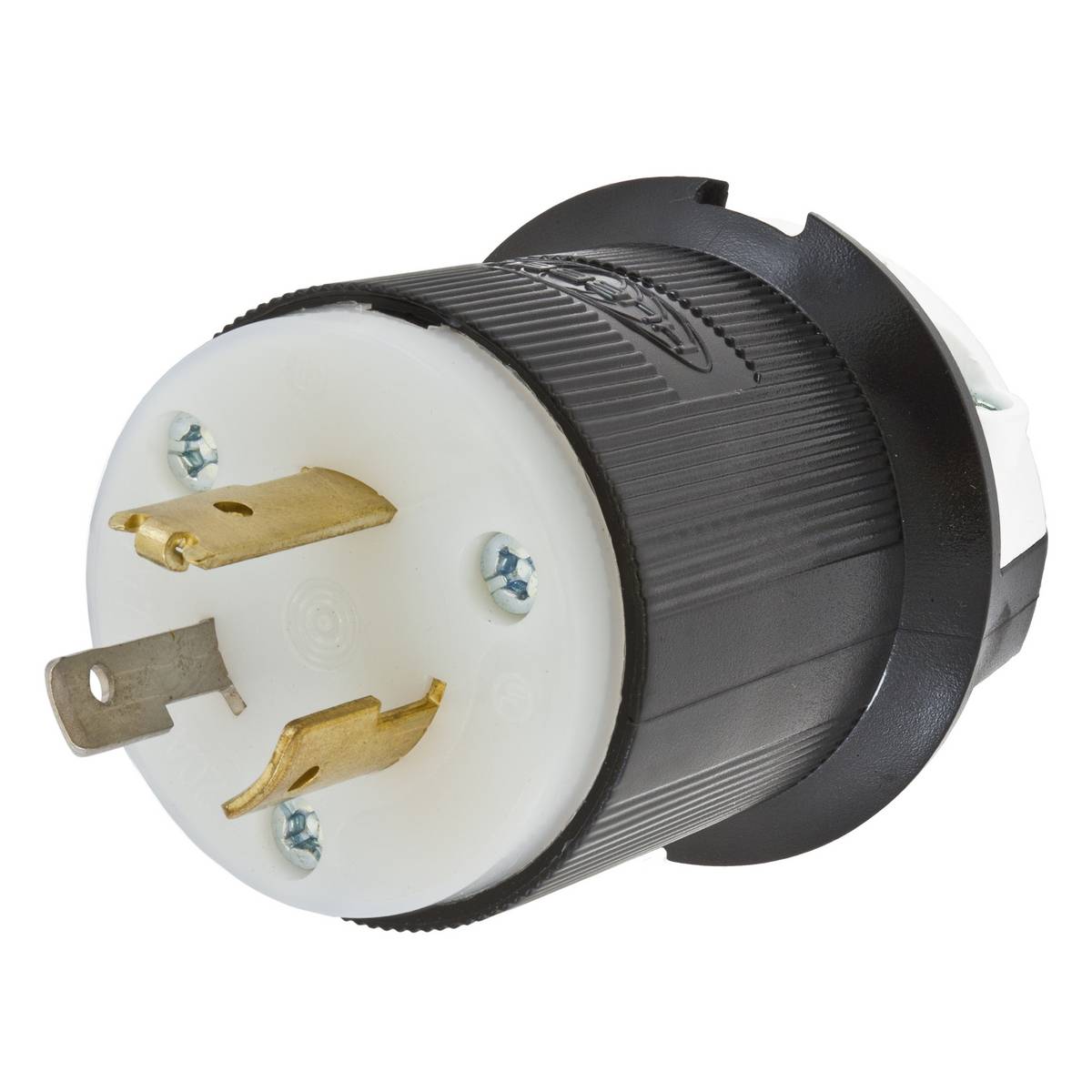

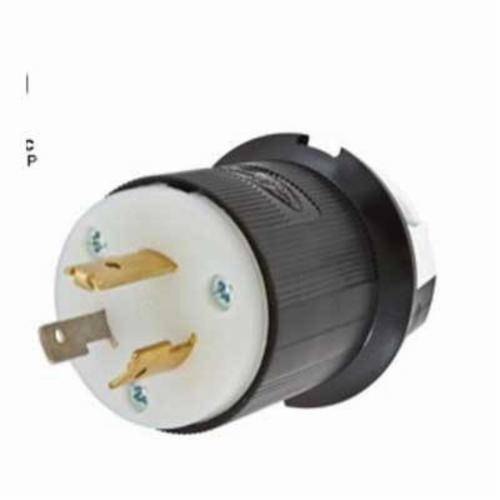

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL3721 1-Phase Grounding Cord Mount Locking Plug, 347 VAC, 20 A, 2 Poles, 3 Wires, Black/White

Short Description

Ensure secure and reliable connections with the Wiring Device-Kellems Twist-Lock® Insulgrip® HBL3721 Locking Plug. Designed for industrial applications, this durable plug supports 347 VAC and 20 A, making it perfect for your grounding needs.Enhanced by AI

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 1-Phase Grounding Cord Mount, 347 VAC, 20 A, 2 Pole, 3 Wires, L24-20P NEMA Rating, Industrial Grade, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.75 x 2.26 x 2.26 in

MFG #: HBL3721

EECO #: HUHBL3721

Brand: Wiring Device-Kellems
UPC #: 783585046594
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121403
Material
Nylon
Application
Power Connection Applications
Terminal Type
Screw
Voltage Rating
347
Number of Wires
3
Temperature Rating
-40 to 75
Type
1-Phase Grounding Cord Mount
Grade
Industrial
Dimensions
2.75 x 2.26 x 2.26
Amperage Rating
20
Features
  • Withstands 2000 VAC dielectric voltage
  • 10 to 8 AWG wire
  • 16 to 8 AWG stranded copper wire terminal accommodation
  • Certified for current interrupting at full rated current interrupting
  • Terminals identified in accordance with UL 498
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • #10-32 brass (Phillips/slotted/Robertson) terminal screws
  • Clear polycarbonate terminal retainer
  • Brass blades
  • Cold rolled steel nickel plated terminal clamp and steel nickel plated assembly screws
  • Indoor dry unless protected by additional means
