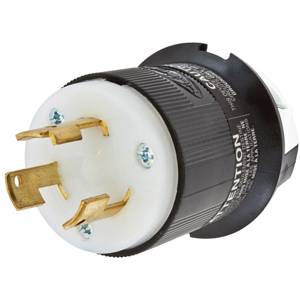

125/250 VAC 30 A Non-NEMA, Hubbell Incorporated HBL3331C Twist-Lock®, Insulgrip® Locking Device Plug
Share Share Print Print
Hubbell

125/250 VAC 30 A Non-NEMA, Hubbell Incorporated HBL3331C Twist-Lock®, Insulgrip® Locking Device Plug

Short Description

125/250 VAC, 30 A, 3-Pole, 3-Wire, Non-NEMA, Black/White, Nylon, Non-Grounding, Polarized, Locking Device Plug

Locking Device Plug; Type Polarized; Constructional Feature Impact/Chemical Resistant; Configuration Non-NEMA Locking; Voltage Rating 125/250 Volt AC; Current Rating 30 Amp; Number of Poles 3; Number of Wires 3; Ground Type Non-Grounding; Material Nylon; Color Black/White; Cord Size 0.36 to 0.93 Inch; Approval UL 498, CSA C22.2; Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596

MFG #: HBL3331C

EECO #: HUHBL3331C

Brand: Wiring Device-Kellems
UPC #: 783585039817
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121403
Approval
UL 498, CSA C22.2
Material
Nylon
Ground Type
Non-Grounding
Current Rating
30 Amp
Voltage Rating
125/250 Volt AC
Number Of Poles
3
Number of Wires
3
Type
Polarized Plug
Cord Size
0.36 to 0.93 Inch
Configuration
Non-NEMA Locking
Constructional Feature
Impact/Chemical Resistant
Features
  • Ribbed Nylon Housing Provides a Secure Grip and Impact and Chemical Resistance
  • Superior Cord Grip Design Protects Terminations from Excess Strain
  • Clear, Funnel Shaped Wire Entry for Ease of Termination
  • Integral Dust Shield Protects Wiring Chamber from Dust or Contaminants
HUBKELE03882_1
HUBKELE15739_B14_B47
HUBKELINST00637
Qty Unit price
Ea
1 $33.90

Slqt
1 $33.90

Stpk
1 $33.90

Unit
1 $33.90
