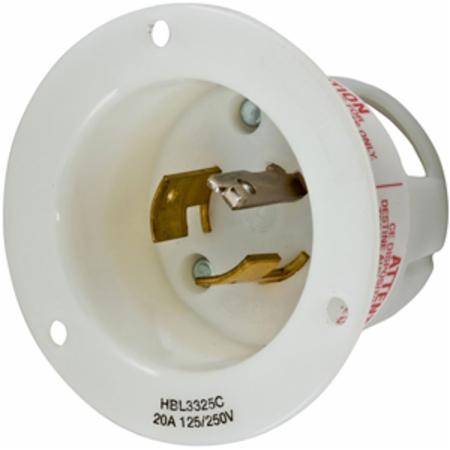

Print125/250 V 20 A Non-NEMA, Hubbell Incorporated HBL3325C Twist-Lock®, Insulgrip® Locking Device Flanged Inlet
Short Description
125/250 V, 20 A, 3-Pole, 3-Wire, Non-NEMA, Non-Grounding, White, Nylon, Polarized, Locking Device Flanged Inlet

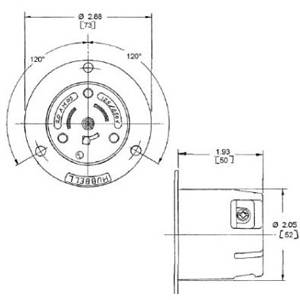

Locking Device Flanged Inlet; Type Polarized; Constructional Feature Impact/Moisture Resistant; Configuration Non-NEMA Locking; Voltage Rating 125/250 Volt; Current Rating 20 Amp; Number of Poles 3; Number of Wires 3; Ground Type Non-Grounding; Material Nylon; Color White; Approval UL 498, CSA C22.2; Overall Dimension 2.88 Inch Diameter x 2.09 Inch Height; Wire Size 16 to 8 AWG; Enclosure Rating IP20; Terminal Type Screw; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
MFG #:
HBL3325C
EECO #: HUHBL3325C
Brand:
Wiring Device-Kellems
UPC #:
783585039794
125/250 V 20 A Non-NEMA, Hubbell Incorporated HBL3325C Twist-Lock®, Insulgrip® Locking Device Flanged Inlet
