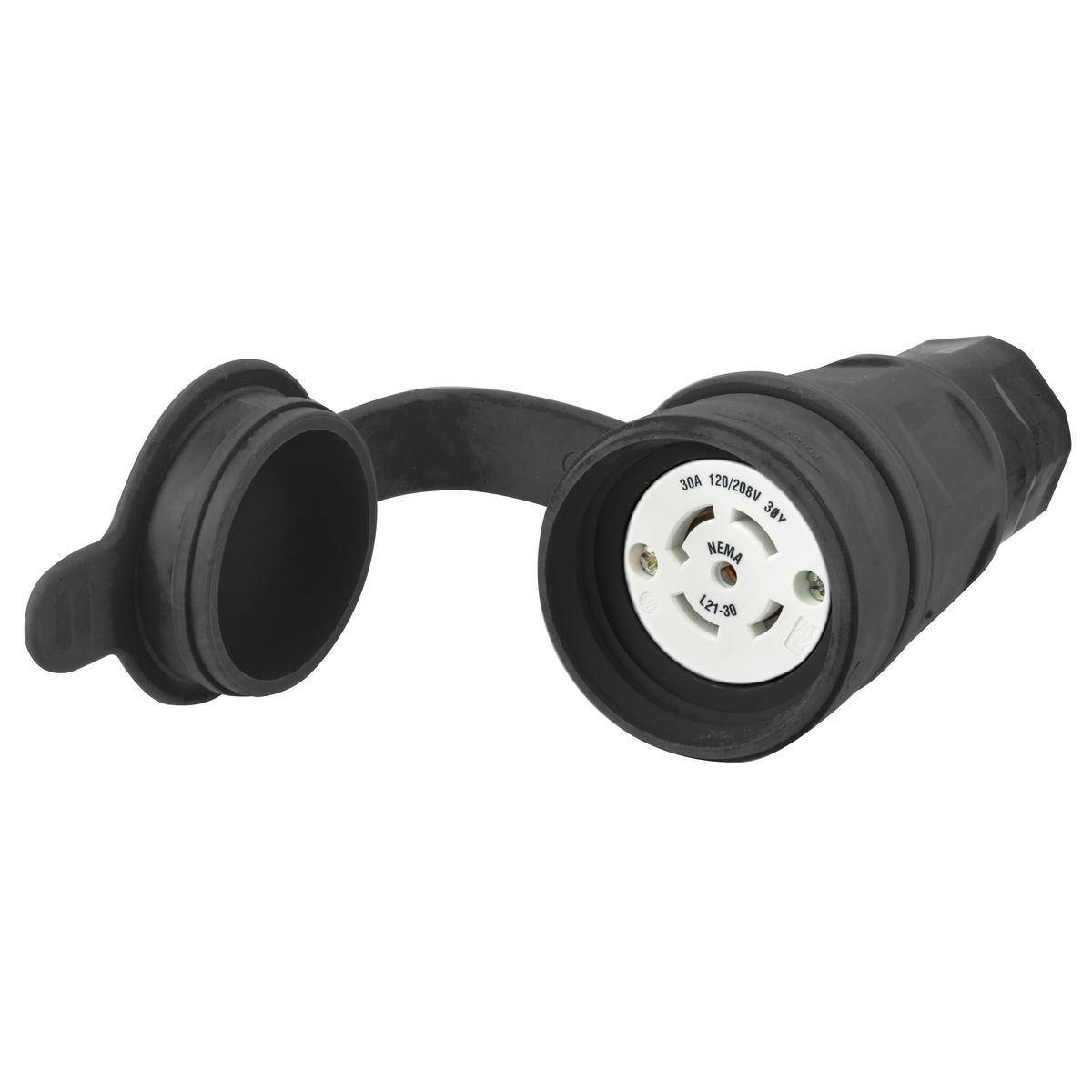

Wiring Device-Kellems HBL29W81BK 3-Phase 5-Wire Dust/Watertight Grounding Insulated Standard Cord Mount Female Connector, 120Y/208 VAC, 30 A, 4 Poles, 5 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL29W81BK 3-Phase 5-Wire Dust/Watertight Grounding Insulated Standard Cord Mount Female Connector, 120Y/208 VAC, 30 A, 4 Poles, 5 Wires, Black

Short Description

Ensure reliable connectivity with the Wiring Device-Kellems HBL29W81BK 3-Phase Female Connector. Designed for commercial and industrial applications, this dust/watertight connector features a robust construction and is perfect for demanding environments.Enhanced by AI

Wiring Device-Kellems, HBL29W81BK, Female Connector, 3-Phase 5-Wire Dust/Watertight Grounding Insulated Standard Cord Mount, 120Y/208 VAC, 30 A, 4 Pole, 5 Wires, L21-30R NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6/6P/12/IP65/IP66/IP67 Enclosure, 3/8 to 1 in Diameter Cord, 30 deg C, Screw Terminal, Elastomer/Composite, Black, 2.77 x 2.77 x 5.67 in Dimensions

MFG #: HBL29W81BK

EECO #: HUHBL29W81BK

Brand: Wiring Device-Kellems
UPC #: 783585131931
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121421
Material
Elastomer/Composite
Terminal Type
Screw
Voltage Rating
120Y/208 VAC
Number of Wires
5
Enclosure
NEMA 4/4X/6/6P/12/IP65/IP66/IP67
Temperature Rating
30
Type
3-Phase 5-Wire Dust/Watertight Grounding Insulated Standard Cord Mount
Grade
Commercial/Industrial
Dimensions
2.77 x 2.77 x 5.67
Amperage Rating
30
Features
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
  • Smooth body design minimizes collection points simplifying the wash down process
