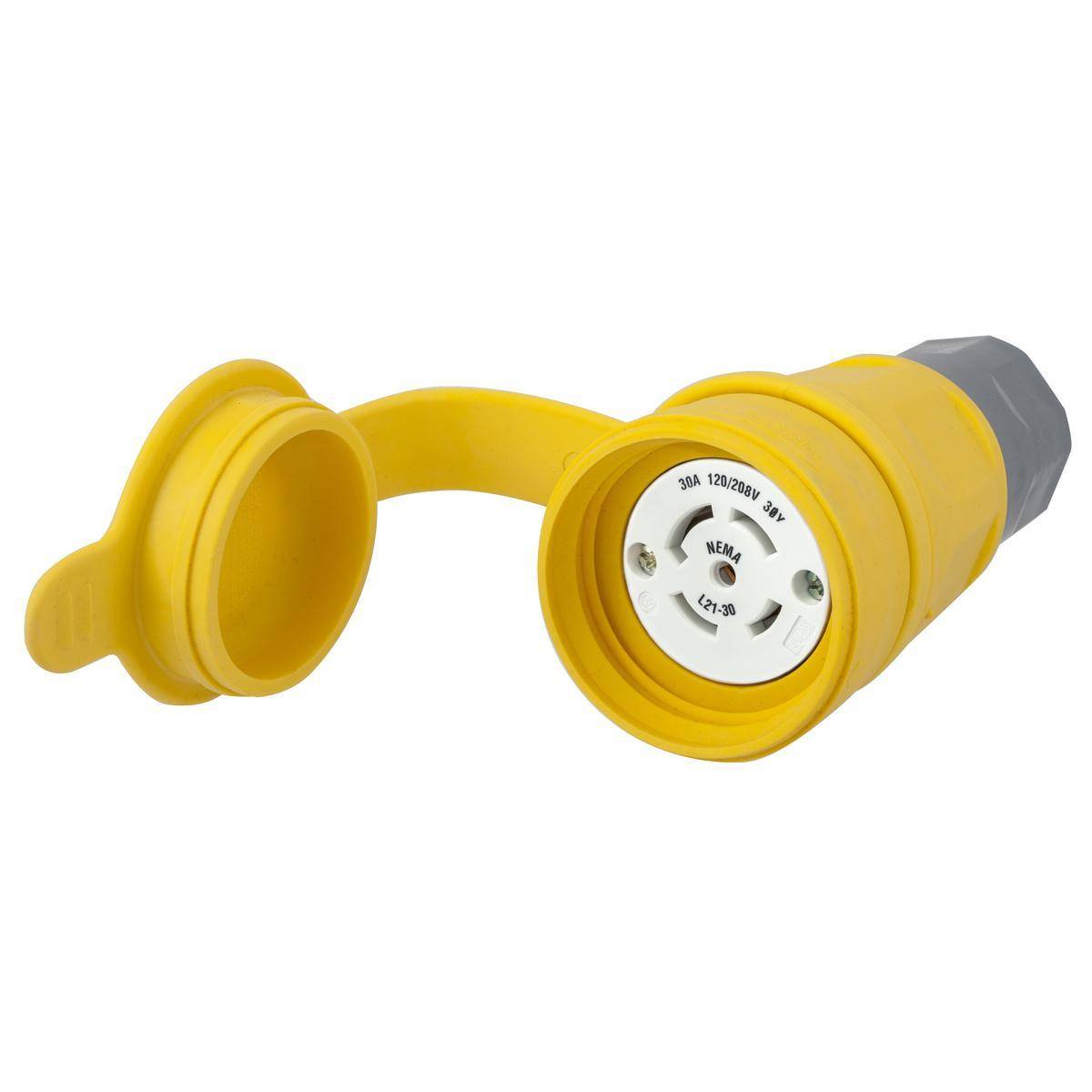

Wiring Device-Kellems HBL29W81 Female Grounding Insulated Standard Cord Mount Watertight Locking Connector, 120/208 VAC, 30 A, 4 Poles, 5 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL29W81 Female Grounding Insulated Standard Cord Mount Watertight Locking Connector, 120/208 VAC, 30 A, 4 Poles, 5 Wires, Yellow

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Ensure reliable power connections with the Wiring Device-Kellems HBL29W81 Female Grounding Insulated Locking Connector. Designed for industrial use, this watertight connector supports 120/208 VAC and features a robust, durable construction for maximum performance in demanding environments.Enhanced by AI

Wiring Device-Kellems, HBL29W81, Locking Connector, Female Grounding Insulated Standard Cord Mount Watertight, 120/208 VAC, 30 A, 4 Pole, 5 Wires, L21-30R NEMA Rating, Industrial Grade, NEMA 4/4X/6/6P/IP65/IP66/IP67 Enclosure, 3/8 to 1 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Elastomer/Composite, Yellow, 2.77 x 2.77 x 5.67 in Dimensions

MFG #: HBL29W81

EECO #: HUHBL29W81

Brand: Wiring Device-Kellems
UPC #: 783585131924
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121421
Material
Elastomer/Composite
Application
Commercial Applications
Terminal Type
Screw
Voltage Rating
120/208
Number of Wires
5
Enclosure
NEMA 4/4X/6/6P/IP65/IP66/IP67
Temperature Rating
-40 to 75
Type
Female Grounding Insulated Standard Cord Mount Watertight
Grade
Industrial
Dimensions
2.77 x 2.77 x 5.67
Amperage Rating
30
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
  • Watertight
