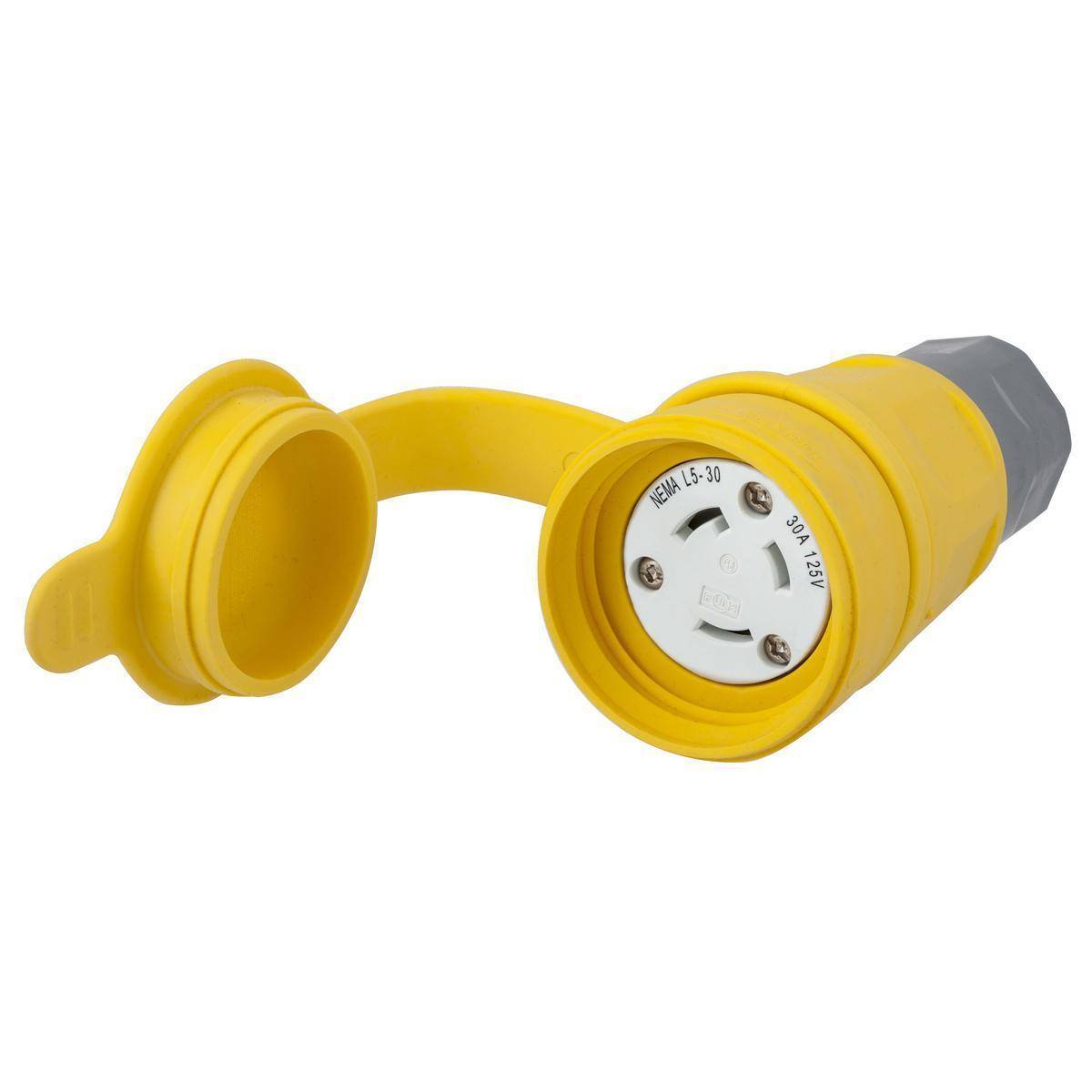

Wiring Device-Kellems Twist-Lock® HBL29W47 Female Grounding Insulated Standard Cord Mount Watertight Locking Connector, 125 VAC, 30 A, 2 Poles, 3 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems Twist-Lock® HBL29W47 Female Grounding Insulated Standard Cord Mount Watertight Locking Connector, 125 VAC, 30 A, 2 Poles, 3 Wires, Yellow

Short Description

Ensure secure and reliable connections with the Wiring Device-Kellems Twist-Lock® HBL29W47 Female Grounding Connector. Designed for industrial applications, this watertight locking connector supports 125 VAC and 30 A, making it the perfect choice for demanding environments.Enhanced by AI

Wiring Device-Kellems Twist-Lock® Locking Connector, Female Grounding Insulated Standard Cord Mount Watertight, 125 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, L5-30R NEMA Rating, Industrial Grade, NEMA 4/4X/6/6P/IP65/IP66/IP67 Enclosure, 3/8 to 1 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Elastomer/Composite, Yellow, 2.77 x 2.77 x 5.67 in

MFG #: HBL29W47

EECO #: HUHBL29W47

Brand: Wiring Device-Kellems
UPC #: 783585131504
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121421
Material
Elastomer/Composite
Application
Commercial Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Enclosure
NEMA 4/4X/6/6P/IP65/IP66/IP67
Temperature Rating
-40 to 75
Type
Female Grounding Insulated Standard Cord Mount Watertight
Grade
Industrial
Dimensions
2.77 x 2.77 x 5.67
Horsepower
2
Amperage Rating
30
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
  • Watertight
