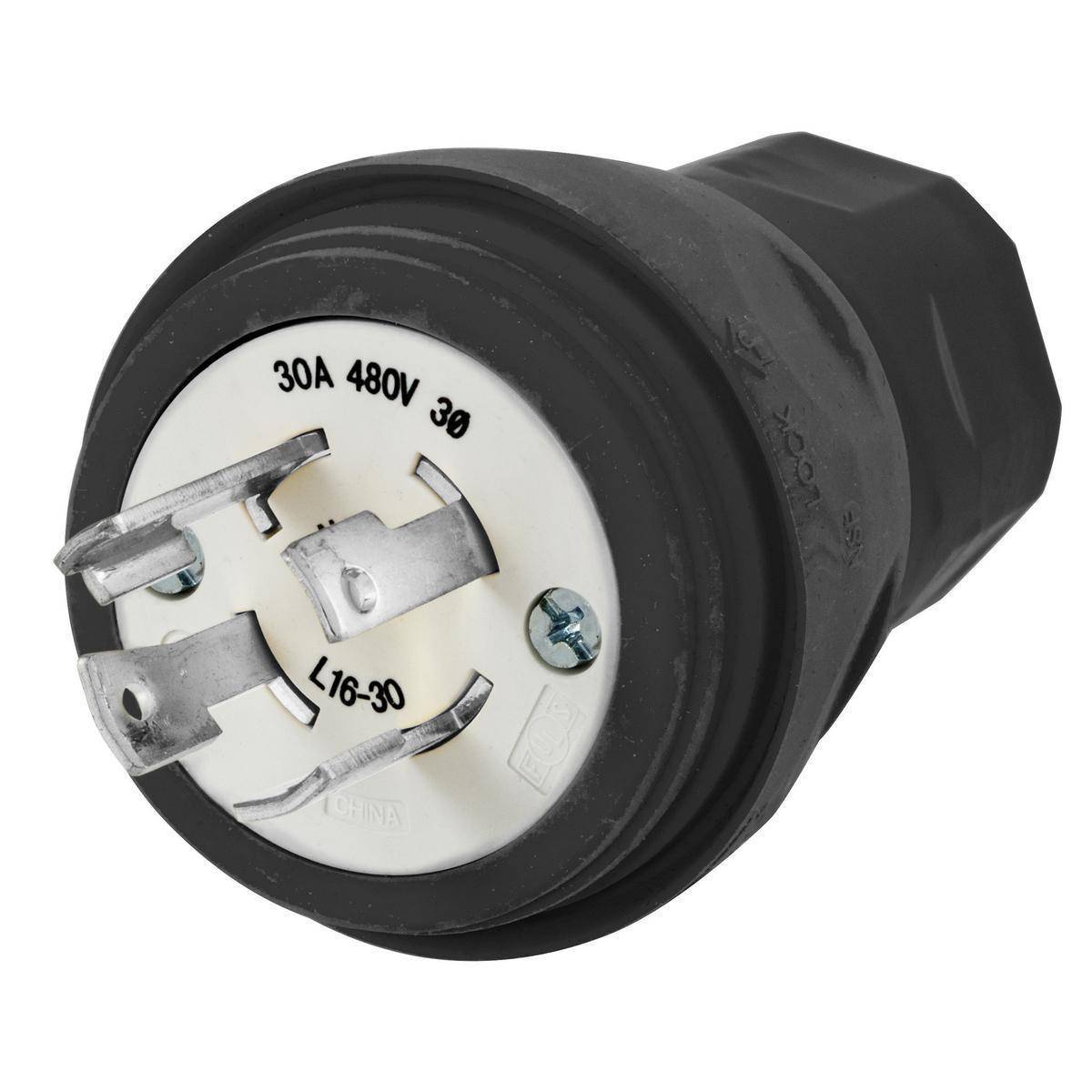

Wiring Device-Kellems HBL28W76BK 3-Phase Grounding Male Standard Cord Mount Watertight Locking Plug, 480 VAC, 30 A, 3 Poles, 4 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL28W76BK 3-Phase Grounding Male Standard Cord Mount Watertight Locking Plug, 480 VAC, 30 A, 3 Poles, 4 Wires, Black

Short Description

Ensure reliable and safe connections with the Wiring Device-Kellems HBL28W76BK 3-Phase Grounding Male Locking Plug. Designed for commercial and industrial use, this watertight plug is built to withstand harsh environments while delivering 480 VAC and 30 A power. Perfect for your demanding applications!Enhanced by AI

Wiring Device-Kellems, HBL28W76BK, Locking Plug, 3-Phase Grounding Male Standard Cord Mount Watertight, 480 VAC, 30 A, 3 Pole, 4 Wires, L16-30P NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6/6P/12 Enclosure, 3/8 to 1 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Elastomer/Composite, Black, 2.77 x 2.77 x 3.94 in Dimensions

MFG #: HBL28W76BK

EECO #: HUHBL28W76BK

Brand: Wiring Device-Kellems
UPC #: 783585131733
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121402
Material
Elastomer/Composite
Terminal Type
Screw
Voltage Rating
480
Number of Wires
4
Enclosure
NEMA 4/4X/6/6P/12
Temperature Rating
-40 to 60
Type
3-Phase Grounding Male Standard Cord Mount Watertight
Grade
Commercial/Industrial
Dimensions
2.77 x 2.77 x 3.94
Amperage Rating
30
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strongest strain relief for any watertight device on the market, utilizing the patented GOTCHA™ ring and collapsible bushing combination
  • Nickel plated brass contacts and stainless steel screws provide corrosion resistance for metallic components
  • Impact resistant, smooth, thermoplastic elastomer body helps collection point and aids in easy debris removal
  • Floating cap rings allows for easy removal of dirt and debris
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
  • Water and dust tight housing
  • The triple bypass seal provides a watertight UL type 4X seal where devices are mated
  • The cone seal at the cable entrance provides protection from water ingress
