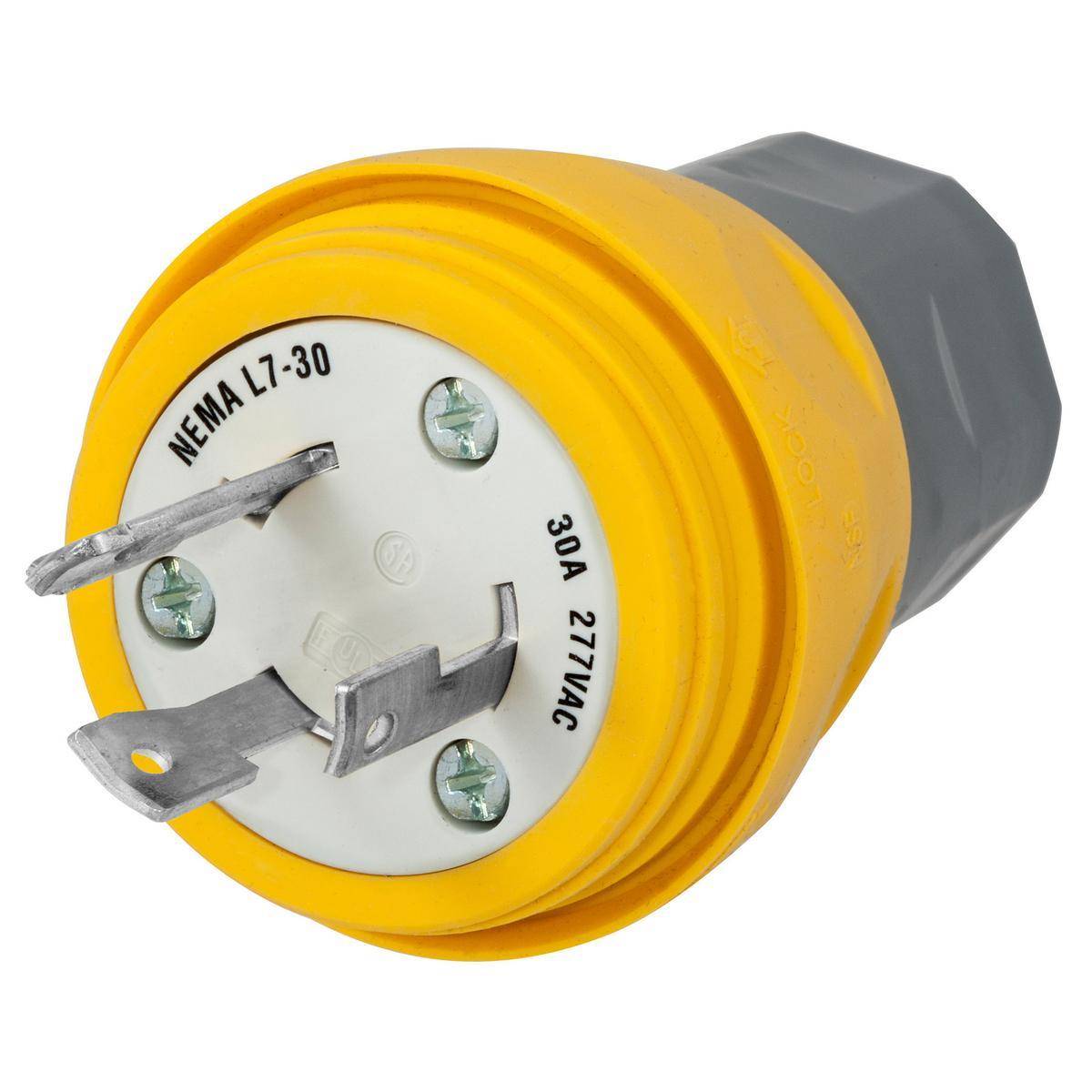

Wiring Device-Kellems HBL28W49 1-Phase Grounding Portable Standard Sized Water/Dust-Tight Cord Mount Locking Male Plug, 277 VAC, 30 A, 2 Poles, 3 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL28W49 1-Phase Grounding Portable Standard Sized Water/Dust-Tight Cord Mount Locking Male Plug, 277 VAC, 30 A, 2 Poles, 3 Wires, Yellow

Short Description

Ensure reliable power connections with the Wiring Device-Kellems HBL28W49 Locking Male Plug, designed for durability and safety in demanding environments. This water and dust-tight plug is perfect for both indoor and outdoor use, providing a secure and efficient power solution.Enhanced by AI

Wiring Device-Kellems, HBL28W49, Locking Male Plug, 1-Phase Grounding Portable Standard Sized Water/Dust-Tight Cord Mount, 277 VAC, 30 A, 2 Pole, 3 Wires, L7-30P/WD1/WD6 NEMA Rating, NEMA 4/4X/6/6P/12 Enclosure, 3/8 to 1 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Composite, Yellow, 2.77 x 2.77 x 3.94 in Dimensions

MFG #: HBL28W49

EECO #: HUHBL28W49

Brand: Wiring Device-Kellems
UPC #: 783585131450
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121402
Material
Composite
Application
Power Connection and Indoor Applications
Terminal Type
Screw
Voltage Rating
277
Number of Wires
3
Enclosure
NEMA 4/4X/6/6P/12
Temperature Rating
-40 to 60
Type
1-Phase Grounding Portable Standard Sized Water/Dust-Tight Cord Mount
Dimensions
2.77 x 2.77 x 3.94
Amperage Rating
30
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Nickel plated brass contacts and stainless steel screws provide corrosion resistance for metallic components
  • Impact resistant, smooth, thermoplastic elastomer body helps collection point and aids in easy debris removal
  • Floating cap rings allows for easy removal of dirt and debris
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion resistant connection points
  • The triple bypass seal provides a watertight UL type 4X seal where devices are mated
  • The cone seal at the cable entrance provides protection from water ingress
  • Strongest strain relief for any watertight device on the market, utilizing the patented GOTCHA™ ring and collapsible bushing combination
