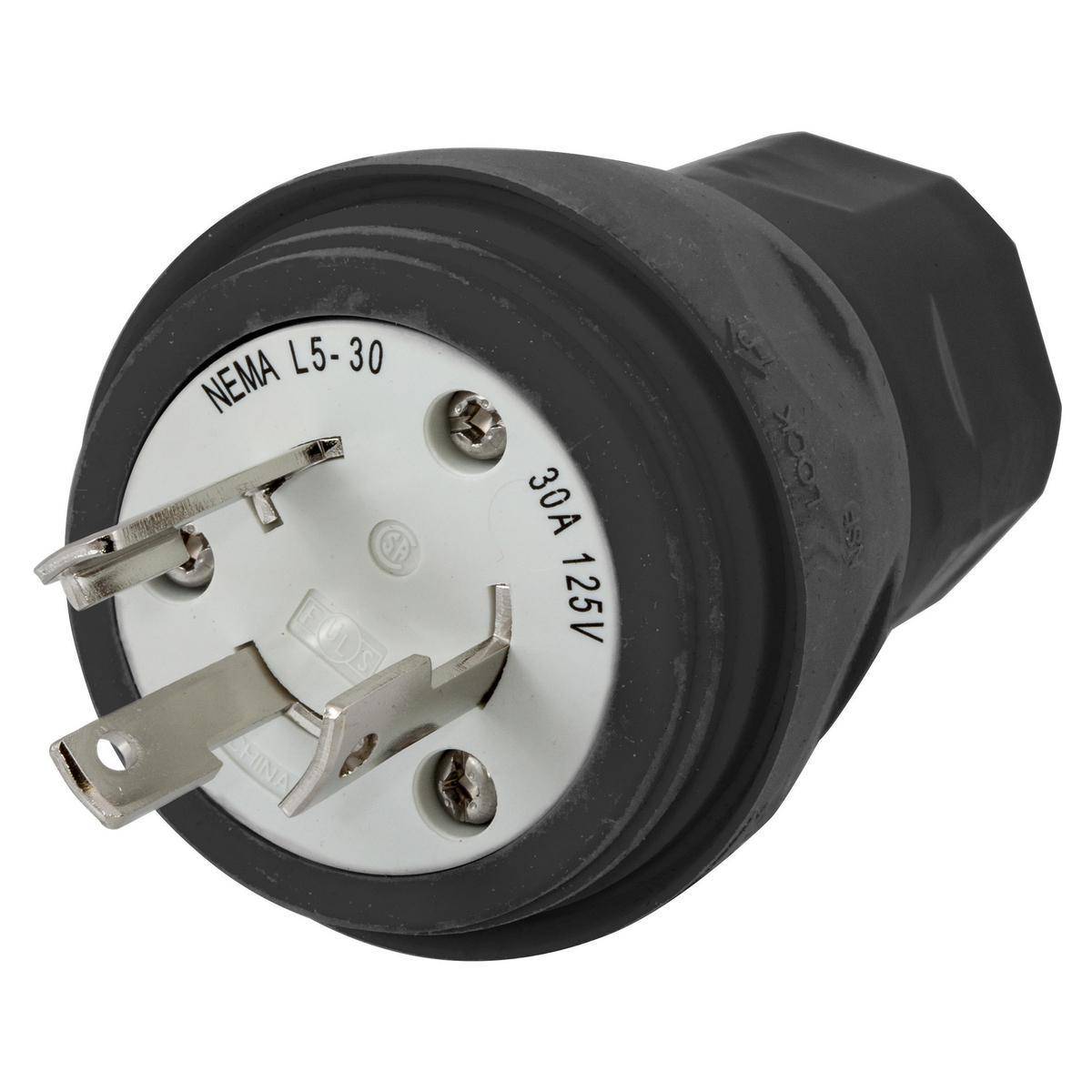

Wiring Device-Kellems HBL28W47BK 1-Phase Grounding Portable Standard Sized Water/Dust-Tight Cord Mount Watertight Locking Male Plug, 125 VAC, 30 A, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL28W47BK 1-Phase Grounding Portable Standard Sized Water/Dust-Tight Cord Mount Watertight Locking Male Plug, 125 VAC, 30 A, 2 Poles, 3 Wires, Black

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Ensure reliable power connections with the Wiring Device-Kellems HBL28W47BK Locking Male Plug. Designed for durability and versatility, this watertight plug is perfect for commercial and industrial applications, providing a secure fit for your cords in any environment.Enhanced by AI

Wiring Device-Kellems, HBL28W47BK, Locking Male Plug, 1-Phase Grounding Portable Standard Sized Water/Dust-Tight Cord Mount Watertight, 125 VAC, 30 A, 2 Pole, 3 Wires, L5-30P/WD1/WD6 NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6/6P/12 Enclosure, 3/8 to 1 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Elastomer/Composite, Black, 2.77 x 2.77 x 3.94 in Dimensions

MFG #: HBL28W47BK

EECO #: HUHBL28W47BK

Brand: Wiring Device-Kellems
UPC #: 783585131436
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121402
Material
Elastomer/Composite
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Enclosure
NEMA 4/4X/6/6P/12
Temperature Rating
-40 to 60
Type
1-Phase Grounding Portable Standard Sized Water/Dust-Tight Cord Mount Watertight
Grade
Commercial/Industrial
Dimensions
2.77 x 2.77 x 3.94
Amperage Rating
30
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Nickel plated brass contacts and stainless steel screws provide corrosion resistance for metallic components
  • Impact resistant, smooth, thermoplastic elastomer body helps collection point and aids in easy debris removal
  • Floating cap rings allows for easy removal of dirt and debris
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion resistant connection points
  • The triple bypass seal provides a watertight UL type 4X seal where devices are mated
  • The cone seal at the cable entrance provides protection from water ingress
  • Strongest strain relief for any watertight device on the market, utilizing the patented GOTCHA™ ring and collapsible bushing combination
