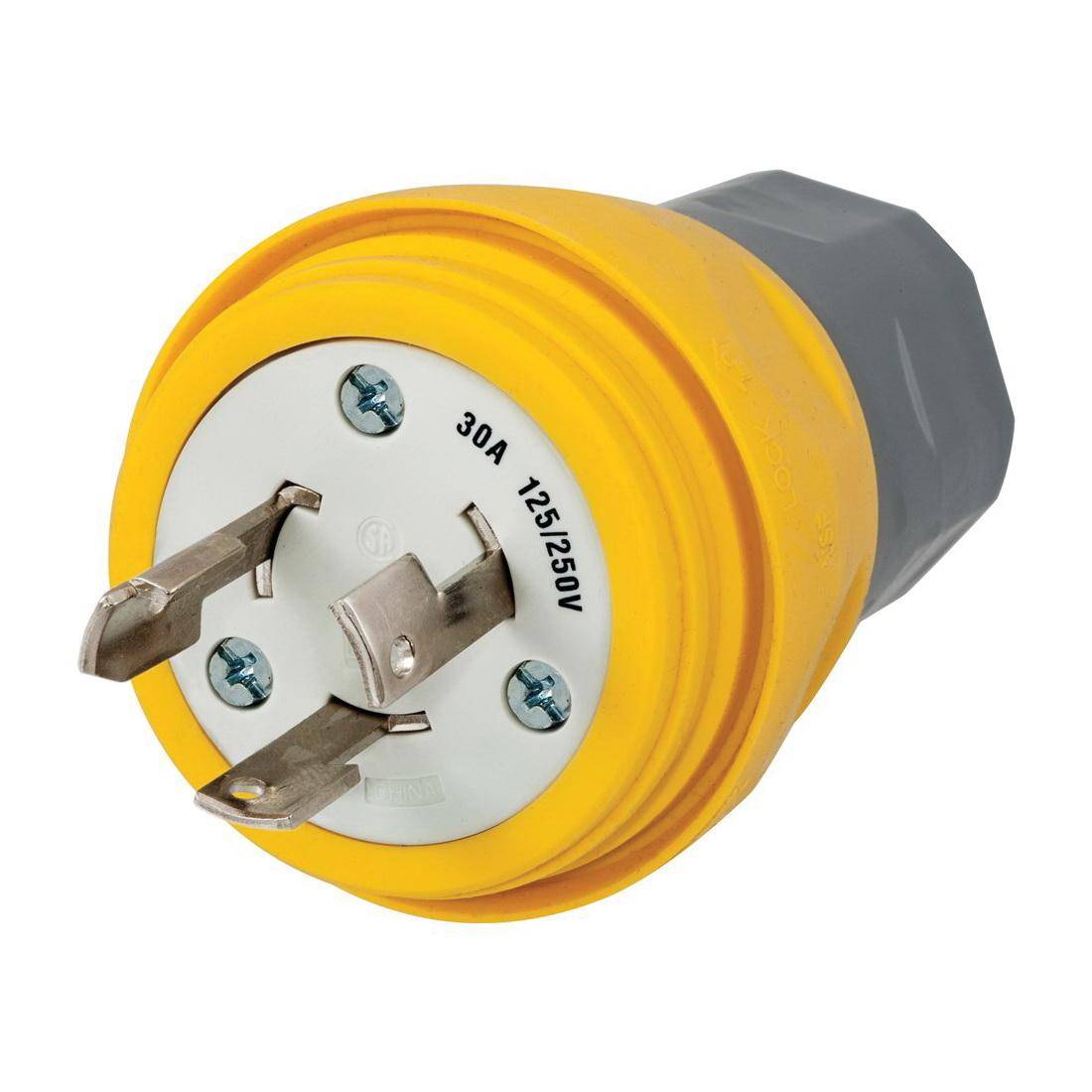

Wiring Device-Kellems HBL28W08 1-Phase Male Non-Grounding Standard Watertight Cord Mount Locking Plug, 125/250 VAC, 30 A, 3 Poles, 3 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL28W08 1-Phase Male Non-Grounding Standard Watertight Cord Mount Locking Plug, 125/250 VAC, 30 A, 3 Poles, 3 Wires, Yellow

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Ensure reliable and watertight connections with the Wiring Device-Kellems HBL28W08 Locking Plug. Designed for 1-Phase applications, this durable and versatile plug is perfect for various environments, accommodating cords from 3/8 to 1 inch in diameter. Experience safety and performance with a 30 A rating and a robust NEMA enclosure!Enhanced by AI

Wiring Device-Kellems, HBL28W08, Locking Plug, 1-Phase Male Non-Grounding Standard Watertight Cord Mount, 125/250 VAC, 30 A, 3 Pole, 3 Wires, NEMA 4/4X/6P/IP65/IP66/IP67 Enclosure, 3/8 to 1 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Composite, Yellow, 2.77 x 2.77 x 3.94 in Dimensions

MFG #: HBL28W08

EECO #: HUHBL28W08

Brand: Wiring Device-Kellems
UPC #: 783585456393
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121402
Material
Composite
Application
Dry Locations, Power Connection and Indoor Applications
Terminal Type
Screw
Voltage Rating
125/250
Number of Wires
3
Enclosure
NEMA 4/4X/6P/IP65/IP66/IP67
Temperature Rating
-40 to 60
Type
1-Phase Male Non-Grounding Standard Watertight Cord Mount
Dimensions
2.77 x 2.77 x 3.94
Amperage Rating
30
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Nickel plated brass contacts and stainless steel screws provide corrosion resistance for metallic components
  • Impact resistant, smooth, thermoplastic elastomer body helps collection point and aids in easy debris removal
  • Floating cap rings allows for easy removal of dirt and debris
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
  • The triple bypass seal provides a watertight UL type 4X seal where devices are mated
  • The cone seal at the cable entrance provides protection from water ingress
  • Strongest strain relief for any watertight device on the market, utilizing the patented Gotcha ring and collapsible bushing combination
IDW_DOCUMENT_1d744cc6808fa2a48c3ced9b50f594a02a45e851e631b3821b1fe09f111accad
IDW_DOCUMENT_4fc90baaccf01b3c417bc99c3fe5723d08f515325821d812ebf947ea4d590d76
IDW_DOCUMENT_c5dd00f4a158a529b1e8ee7209fb09bb9de47b2fcfc83ebc6a024a75b74e5d97
Wiring_Device_Kellems_HBL26W09_Catalog
