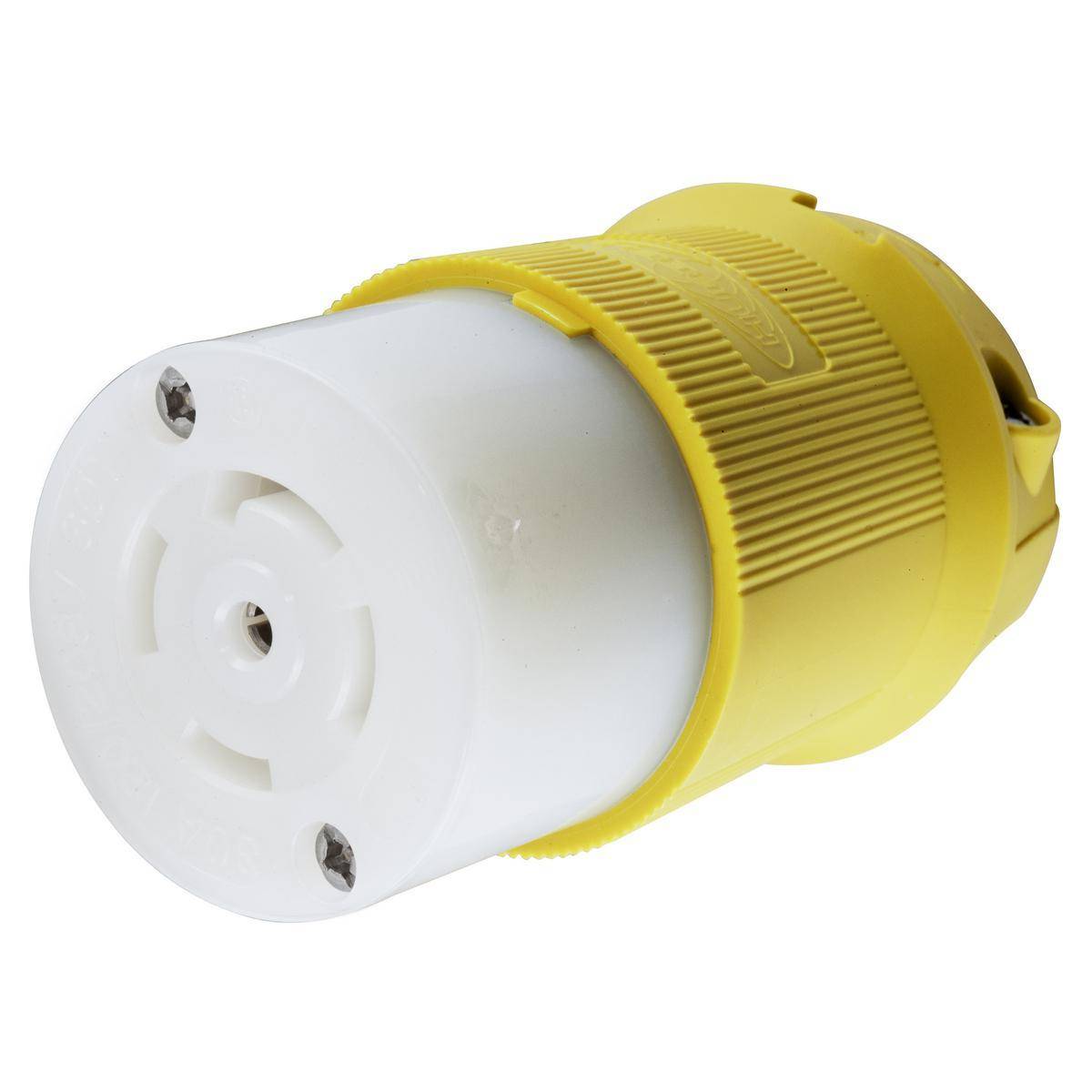

Wiring Device-Kellems HBL28CM13 3-Phase Corrosion Resistant Heavy Duty Isolated Grounding Standard Sized Cord Mount Female Connector, 120Y/208 VAC, 30 A, 4 Poles, 5 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL28CM13 3-Phase Corrosion Resistant Heavy Duty Isolated Grounding Standard Sized Cord Mount Female Connector, 120Y/208 VAC, 30 A, 4 Poles, 5 Wires, Yellow

Short Description

Discover the Wiring Device-Kellems HBL28CM13: a robust and corrosion-resistant 3-phase female connector designed for heavy-duty applications. With its isolated grounding feature and industrial-grade durability, this connector ensures reliable performance in demanding environments. Perfect for 120Y/208 VAC systems, it supports up to 30 A and features a user-friendly design for easy installation.Enhanced by AI

Wiring Device-Kellems, HBL28CM13, Female Connector, 3-Phase Corrosion Resistant Heavy Duty Isolated Grounding Standard Sized Cord Mount, 120Y/208 VAC, 30 A, 3 hp, 4 Pole, 5 Wires, L21-30R/WD1/WD5 NEMA Rating, Industrial/Marine Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Yellow, 2.33 x 2.33 x 3.86 in Dimensions

MFG #: HBL28CM13

EECO #: HUHBL28CM13

Brand: Wiring Device-Kellems
UPC #: 783585039787
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121421
Material
Nylon
Application
Indoor Applications
Terminal Type
Pressure Screw
Voltage Rating
120Y/208 VAC
Number of Wires
5
Enclosure
IP20
Temperature Rating
-40 to 75
Type
3-Phase Corrosion Resistant Heavy Duty Isolated Grounding Standard Sized Cord Mount
Grade
Industrial/Marine
Dimensions
2.33 x 2.33 x 3.86
Horsepower
3
Amperage Rating
30
Features
  • Nickel plated contacts and stainless steel screws provide maximum corrosion resistance
  • Corrosion resistant
  • Cord mounted
  • Indoor dry unless protected by additional mean environmental conditions
  • 12 to 8 AWG conductor
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design for flat cable protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
