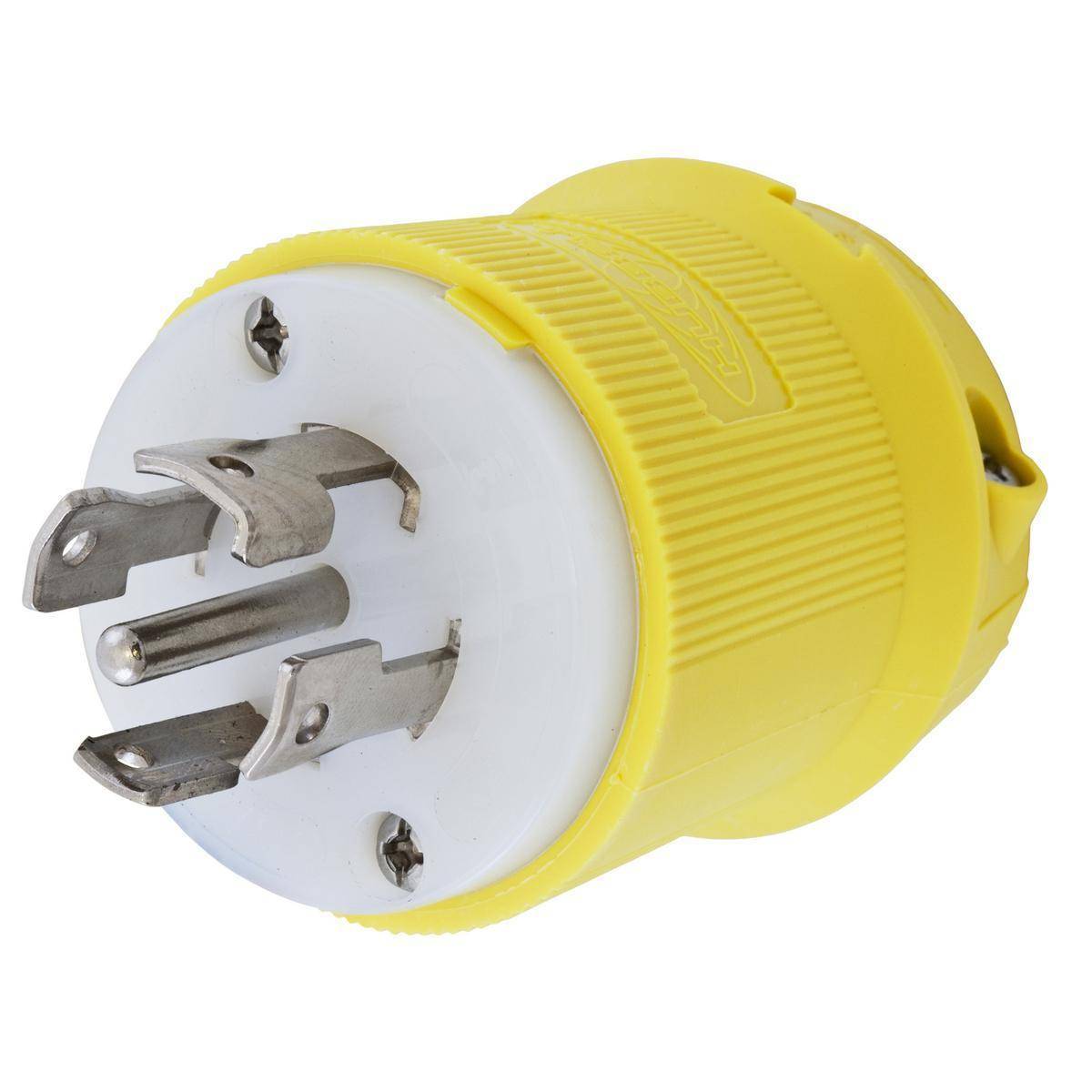

Wiring Device-Kellems HBL28CM11 3-Phase Corrosion Resistant Male Non-Grounding Cord Mount Locking Plug, 120/208 VAC, 30 A, 4 Poles, 5 Wires, Yellow
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL28CM11 3-Phase Corrosion Resistant Male Non-Grounding Cord Mount Locking Plug, 120/208 VAC, 30 A, 4 Poles, 5 Wires, Yellow

Short Description

Discover the Wiring Device-Kellems HBL28CM11, a robust 3-Phase Corrosion Resistant Male Non-Grounding Locking Plug designed for reliable performance in demanding environments. With a 120/208 VAC rating and a durable marine-grade construction, this plug ensures safety and efficiency for your electrical needs.Enhanced by AI

Wiring Device-Kellems, HBL28CM11, Locking Plug, 3-Phase Corrosion Resistant Male Non-Grounding Cord Mount, 120/208 VAC, 30 A, 3 hp, 4 Pole, 5 Wires, L21-30P NEMA Rating, Marine Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 2.33 x 2.33 x 2.75 in Dimensions

MFG #: HBL28CM11

EECO #: HUHBL28CM11

Brand: Wiring Device-Kellems
UPC #: 783585039770
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
39121403
Material
Nylon
Application
Dry Locations, Power Connection and Indoor Applications
Terminal Type
Screw
Voltage Rating
120/208
Number of Wires
5
Enclosure
IP20
Temperature Rating
-40 to 75
Type
3-Phase Corrosion Resistant Male Non-Grounding Cord Mount
Grade
Marine
Dimensions
2.33 x 2.33 x 2.75
Horsepower
3
Amperage Rating
30
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Withstands 2000 VAC minimum dielectric voltage
  • 16 to 8 AWG solid/stranded copper wire terminal accommodation
  • Superior cord grip design protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Nickel plated blades and stainless steel screws provide maximum corrosion resistance
  • Clear polycarbonate terminal retainer, nickel plated brass blade, #10-32 bronze terminal screw cold rolled steel nickel plated terminal clamp, stainless steel assembly screw
IDW_DOCUMENT_f3d80df134af868d1cb69978afd2fa91ce4f42d322b7e3bbe51996a4712b3e46
Wiring_Device_Kellems_HBL2830SW_Catalog
IDW_DOCUMENT_3961ed79ffa4fd3e0e93685886a5d2e2b80cb5a57343852bf0906331da6419b2
IDW_DOCUMENT_fb09dc4b76e86f96c0b309550b652d1cbfaf484069a4381f80c529f3dcafb09d
