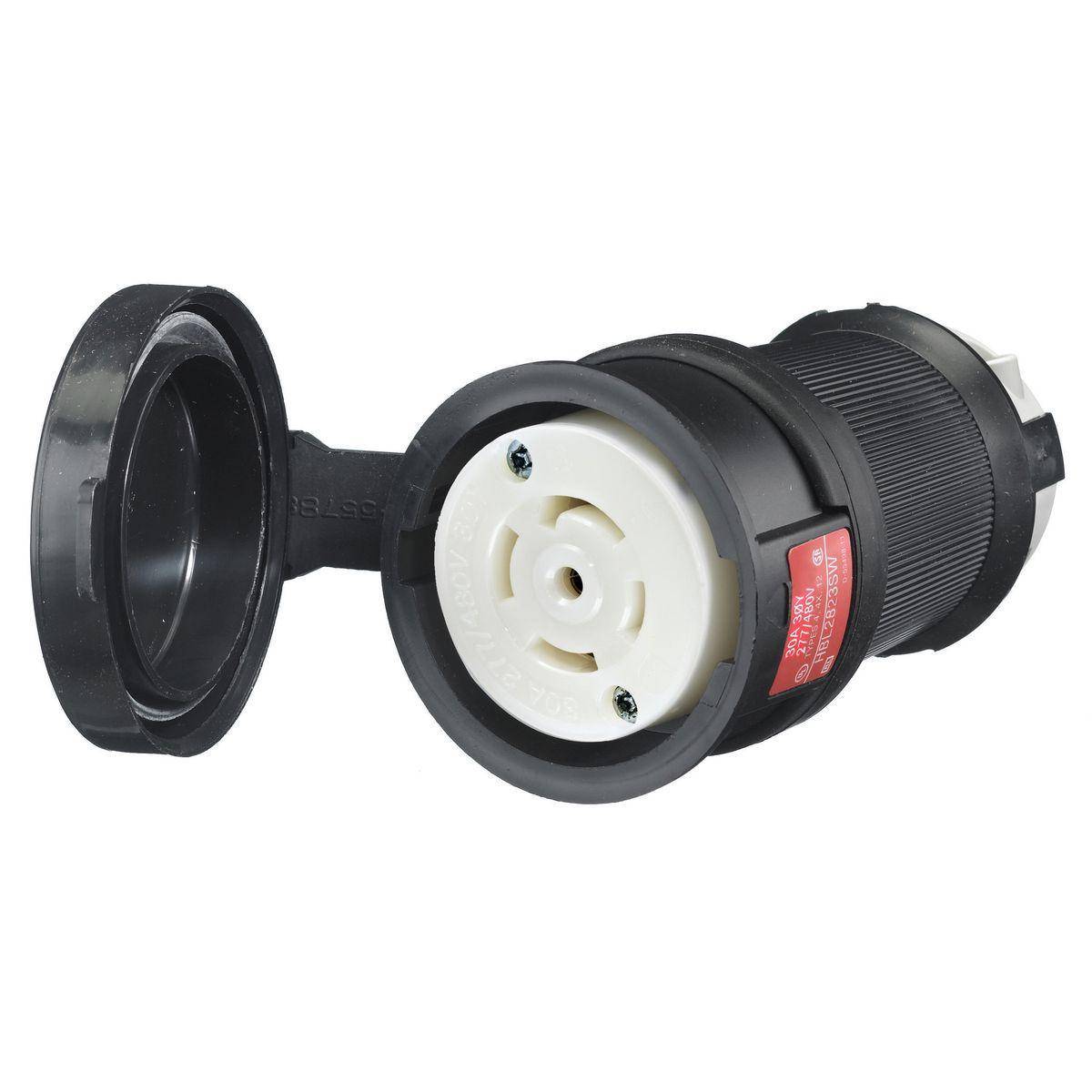

Wiring Device-Kellems Twist-Lock® HBL2823SW 3-Phase Grounding Shrouded Watertight Locking Connector, 277Y/480 VAC, 30 A, 4 Poles, 5 Wires, Black/White
Share Share Print Print
Hubbell

Wiring Device-Kellems Twist-Lock® HBL2823SW 3-Phase Grounding Shrouded Watertight Locking Connector, 277Y/480 VAC, 30 A, 4 Poles, 5 Wires, Black/White

Short Description

Ensure reliable and safe connections with the Wiring Device-Kellems Twist-Lock® HBL2823SW Locking Connector, designed for 3-phase applications. This watertight and shrouded connector is perfect for demanding environments, providing robust performance at 277Y/480 VAC and 30 A. Upgrade your electrical setup with confidence!Enhanced by AI

Wiring Device-Kellems Twist-Lock® Locking Connector, 3-Phase Grounding Shrouded Watertight, 277Y/480 VAC, 30 A, 10 hp, 4 Pole, 5 Wires, L21-30R/L22-30R NEMA Rating, NEMA 4X/12 Enclosure, 0.35 to 1.15 in Diameter Cord, Screw Terminal, Thermoplastic, Black/White, 4.38 x 2.75 x 2.75 in

MFG #: HBL2823SW

EECO #: HUHBL2823SW

Brand: Wiring Device-Kellems
UPC #: 783585456676
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121421
Material
Thermoplastic
Terminal Type
Screw
Voltage Rating
277Y/480 VAC
Number of Wires
5
Enclosure
NEMA 4X/12
Type
3-Phase Grounding Shrouded Watertight
Dimensions
4.38 x 2.75 x 2.75
Horsepower
10
Amperage Rating
30
Features
  • Closure cap is included for environmental seal when device is not in use
  • One piece, engineered thermoplastic housing is impact resistant for heavy duty industrial environments
  • Superior cord grip design for flat cable protects terminations from excess strain
  • UL Type 4X environmental seal protects connection while in use
Wiring_Device_Kellems_HBL21CM414B_Catalog
IDW_DOCUMENT_8aaa91c29c134fecee0b9e1278ff6775c156fd9fb8c5636a087b70220467490e
Wiring_Device_Kellems_HBL2823SW_Full_Engineering_Drawing
Wiring_Device_Kellems_HBL2823SW_Manual
