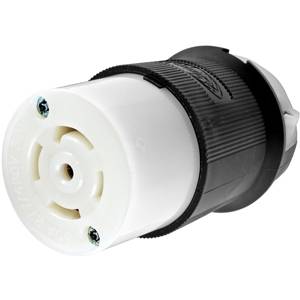

Print277/480 VAC 30 A L22-30R, Hubbell Incorporated HBL2823 Twist-Lock®, Insulgrip® Locking Device Connector
Short Description
277/480 VAC Star, 3-Phase, 30 A, 16 to 8 AWG, 4-Pole, 5-Wire, Black/White, Nylon, NEMA L22-30R, Polarized, Locking Device Connector
Locking Device Connector; Type Polarized; Constructional Feature Impact/Chemical Resistant; Configuration L22-30R; Voltage Rating 277/480 Volt AC Star 3-Phase; Current Rating 30 Amp; Number of Poles 4; Number of Wires 5; Ground Type Grounding; Material Nylon; Color Black/White; Cord Size 0.35 to 1.15 Inch; Approval UL 498, CSA C22.2; Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
MFG #:
HBL2823
EECO #: HUHBL2823
Brand:
Wiring Device-Kellems
UPC #:
783585039701
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $79.90 |
|
Slqt |
|
| 1 | $79.90 |
|
Stpk |
|
| 1 | $79.90 |
|
Unit |
|
| 1 | $79.90 |
everwhere
277/480 VAC 30 A L22-30R, Hubbell Incorporated HBL2823 Twist-Lock®, Insulgrip® Locking Device Connector
