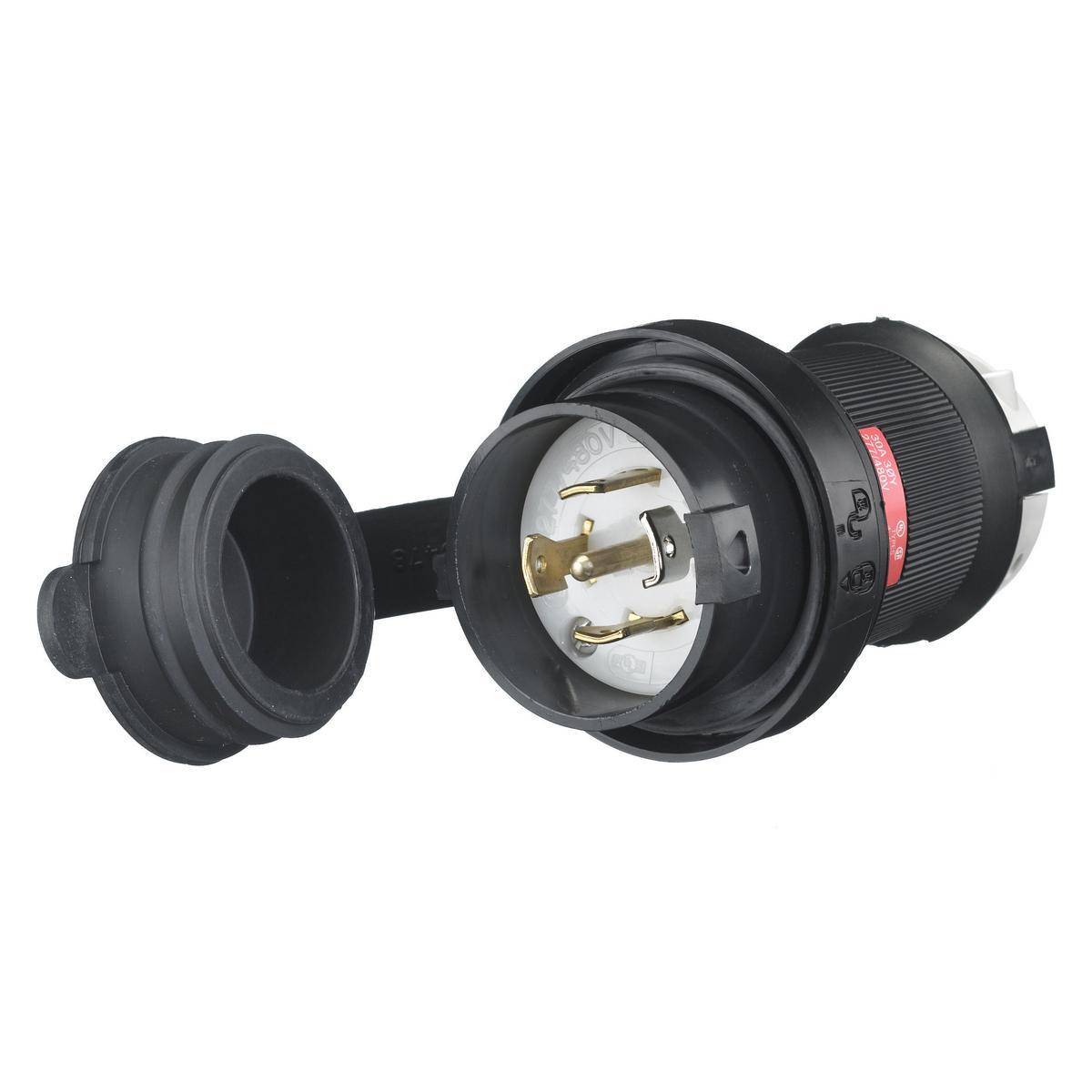

Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2821SW 3-Phase Watertight Grounding Standard Sized Cord Mount Locking Male Plug, 277/480 VAC, 30 A, 4 Poles, 5 Wires, Black/White

Short Description

Ensure safe and reliable connections with the Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2821SW. Designed for 3-phase applications, this watertight locking male plug offers robust performance in demanding environments, featuring a durable industrial-grade construction and compatibility with various cord sizes.Enhanced by AI

Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Male Plug, 3-Phase Watertight Grounding Standard Sized Cord Mount, 277/480 VAC, 30 A, 4 Pole, 5 Wires, L22-30P NEMA Rating, Industrial Grade, NEMA 4/4X/12/6/6P/IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 4.5 x 2.94 x 2.94 in

MFG #: HBL2821SW

EECO #: HUHBL2821SW

Brand: Wiring Device-Kellems
UPC #: 783585454979
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121403
Material
Composite
Terminal Type
Screw
Voltage Rating
277/480
Number of Wires
5
Enclosure
NEMA 4/4X/12/6/6P/IP66
Temperature Rating
-40 to 75
Type
3-Phase Watertight Grounding Standard Sized Cord Mount
Grade
Industrial
Dimensions
4.5 x 2.94 x 2.94
Amperage Rating
30
Features
  • Withstand 2500 VAC minimum dielectric voltage
  • 16 to 8 AWG stranded copper wire terminal accommodation
  • Terminals identified in accordance with UL 498
  • PBT cord clamp
  • Clear polycarbonate terminal retainer
  • Brass blade
  • #10-32 brass (Phillips/slotted/Robertson) terminal screws
  • Nickel plated cold rolled steel terminal clamp
  • Stainless steel assembly screws
  • Neoprene watertight gland
  • Santoprene closure plug
  • UL type 4X environmental seal protects connection while in use
  • Impact resistant shroud protects blades against bending and breaking
  • Reduces exposure to arcing when connecting or disconnecting under load
  • Superior cord grip design protects terminations from excess strain
  • 10 to 8 AWG wire
