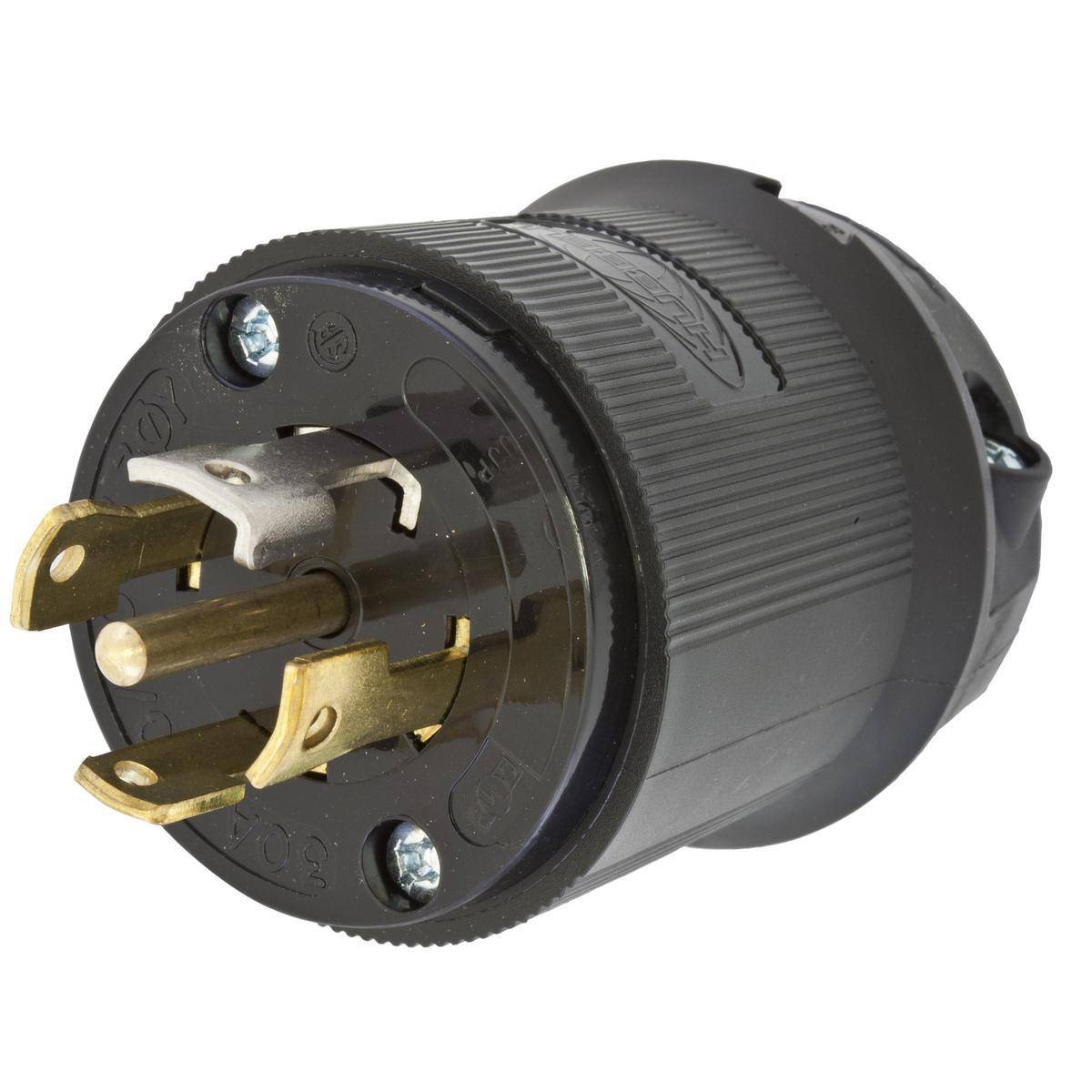

Wiring Device-Kellems HBL2811BK 3-Phase Grounding Male Standard Cord Mount Locking Plug, 120/208 VAC, 30 A, 4 Poles, 5 Wires, Black
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL2811BK 3-Phase Grounding Male Standard Cord Mount Locking Plug, 120/208 VAC, 30 A, 4 Poles, 5 Wires, Black

Short Description

Ensure reliable power connections with the Wiring Device-Kellems HBL2811BK Locking Plug. Designed for 3-phase applications, this industrial-grade plug provides exceptional durability and performance, suitable for a variety of environments. With a 30 A capacity and robust construction, it's the perfect choice for your electrical needs.Enhanced by AI

Wiring Device-Kellems, HBL2811BK, Locking Plug, 3-Phase Grounding Male Standard Cord Mount, 120/208 VAC, 30 A, 3 hp, 4 Pole, 5 Wires, L21-30P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.75 x 2.33 x 2.33 in Dimensions

MFG #: HBL2811BK

EECO #: HUHBL2811BK

Brand: Wiring Device-Kellems
UPC #: 783585172286
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121403
Material
Nylon
Application
Power Connection and Indoor Dry Environment Applications
Terminal Type
Screw
Voltage Rating
120/208
Number of Wires
5
Enclosure
IP20
Temperature Rating
-40 to 75
Type
3-Phase Grounding Male Standard Cord Mount
Grade
Industrial
Dimensions
2.75 x 2.33 x 2.33
Horsepower
3
Amperage Rating
30
Features
  • Clear, funnel shaped wire entry for ease of termination
  • Stainless steel cord clamp/body holding screws
  • 2000 VAC minimum dielectric withstand voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 12 AWG terminal accommodation
  • All black ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Nylon blade holder and cord clamp
  • Clear polycarbonate terminal retainer
  • Brass blade
  • 0.08 in brass nickel plated terminal clamp
  • #10-32 bronze (white finish on neutral screw when used) multi-drive terminal screw
